Yamaha CARRETERA WR250X 2014

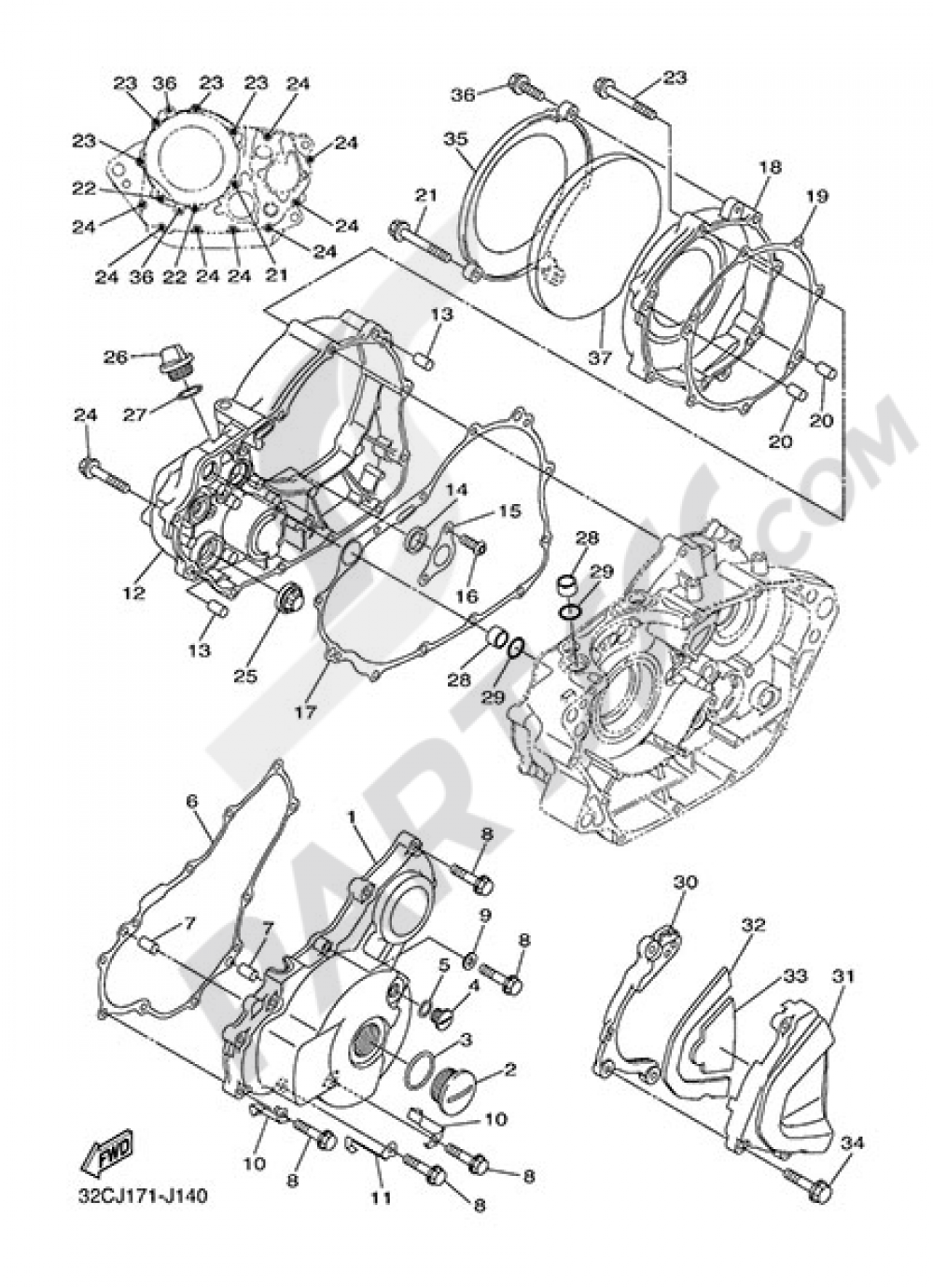

Add model to garageCRANKCASE COVER 1 Yamaha WR250X 2014
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
COVER, CRANKCASE 1
3D7154110000
|
170,06 € | 1 | Add |
| 2 |
PLUG, STRAIGHT SCREW (5H0)
903403206900
|
18,75 € | 1 | Add |
| 3 |
O-RING (341)
932103217200
|
4,84 € | 1 | Add |
| 4 |
PLUG, STRAIGHT SCREW (5H0)
903401406800
|
15,98 € | 1 | Add |
| 5 |
O-RING (2H9)
932101436900
|
1,19 € | 1 | Add |
| 6 |
GASKET, CRANKCASE COVER 1
3D7154510000
|
16,30 € | 1 | Add |
| 7 |
PIN, DOWEL(6G8)
995300801200
|
1,42 € | 1 | Add |
| 8 |
BOLT, FLANGE
950220603000
|
0,69 € | 1 | Add |
| 9 |
GASKET 256113960000
904300601400
|
2,33 € | 1 | Add |
| 10 |
CLAMP
904620805900
|
10,28 € | 1 | Add |
| 11 |
CLAMP
904620806000
|
11,42 € | 1 | Add |
| 12 |
COVER, CRANKCASE 3
3D7154310000
|
221,03 € | 1 | Add |
| 13 |
PIN, DOWEL(6G8)
995300801200
|
1,42 € | 1 | Add |
| 14 |
OIL SEAL(4GY)
931011416400
|
17,60 € | 1 | Add |
| 15 |
HOLDER
3D7151180000
|
2,40 € | 1 | Add |
| 16 |
SCREW
901490608400
|
1,77 € | 1 | Add |
| 17 |
GASKET, CRANKCASE COVER 3
3D7154620000
|
22,72 € | 1 | Add |
| 18 |
COVER, GENERATOR
3D7154150000
|
90,09 € | 1 | Add |
| 19 |
GASKET
3D7154531000
|
22,72 € | 1 | Add |
| 20 |
PIN, DOWEL(6G8)
995300801200
|
1,42 € | 1 | Add |
| 21 |
BOLT, FLANGE
950220604500
|
0,69 € | 1 | Add |
| 22 |
BOLT, FLANGE
950220603500
|
0,69 € | 1 | Add |
| 23 |
BOLT, FLANGE
901050614400
|
2,22 € | 1 | Add |
| 24 |
BOLT, FLANGE
950220603000
|
0,69 € | 1 | Add |
| 25 |
GAUGE, LEVEL
3Y1153610000
|
23,12 € | 1 | Add |
| 26 |
PLUG, OIL
3Y1153631000
|
13,96 € | 1 | Add |
| 27 |
O-RING (646)
932101912300
|
5,08 € | 5 | Add |
