Yamaha OFF-ROAD YZ125 2003

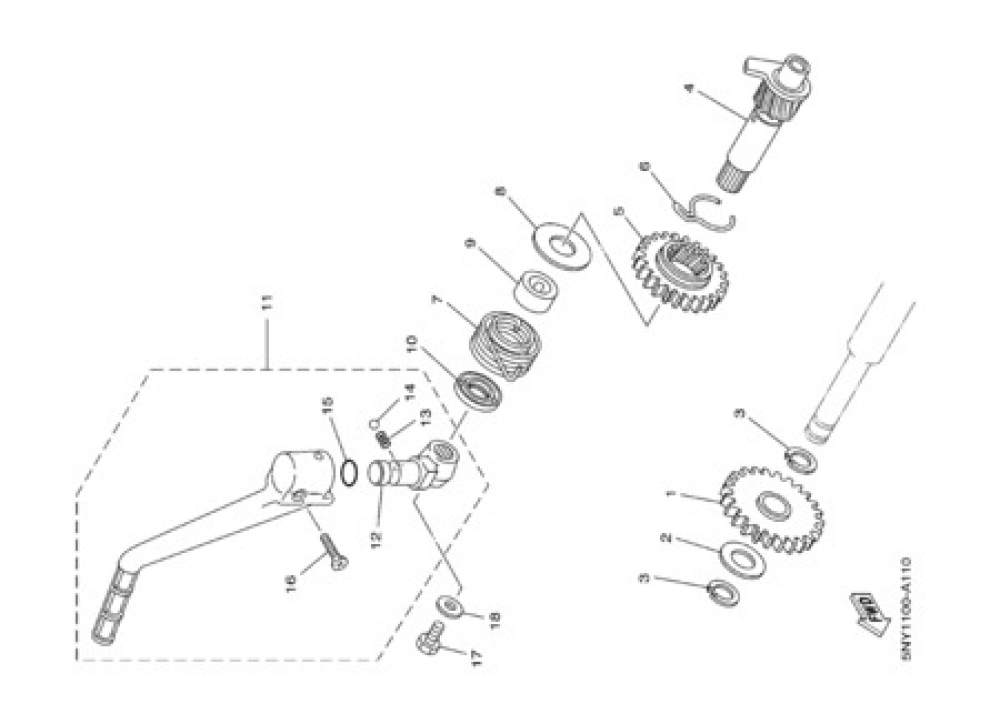

Add model to garageSTARTER Yamaha YZ125 2003
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
GEAR, KICK IDLE
1LX156510000
|
Obsolete | 1 | Not available |
| 2 |
WASHER, PLATE(JA8)
90201153P000
|
3,62 € | 1 | Add |
| 3 |
CIRCLIP(1AR)
990091540000
|
3,09 € | 5 | Add |
| 4 |
KICK AXLE ASSY
1LX156600300
|
167,53 € | 1 | Add |
| 5 |
GEAR, KICK
1LX156410000
|
Obsolete | 1 | Not available |
| 6 |
CLIP 315156870000
904682604800
|
3,96 € | 1 | Add |
| 7 |
SPRING, TORSION (4F2)
905082645000
|
9,95 € | 1 | Add |
| 8 |
WASHER, PLATE (25G)
90201171G400
|
5,65 € | 1 | Add |
| 9 |
SPACER(1LX)
905601727900
|
Obsolete | 1 | Not available |
| 10 |
OIL SEAL (15A)
931021726300
|
14,95 € | 1 | Add |
| 11 |
KICK CRANK ASSY
4DB156201000
|
182,38 € | 1 | Add |
| 12 |
BOSS, KICK CRANK
4DB156210300
|
68,43 € | 1 | Add |
| 13 |
SPRING COMPRESSION278156220000
905011208100
|
2,22 € | 1 | Add |
| 14 |
BALL (12R)
935073203100
|
0,52 € | 5 | Add |
| 15 |
O-RING (341)
932101517100
|
3,84 € | 1 | Add |
| 16 |
SCREW, COUNTERSUNK (5Y1)
901520601000
|
0,93 € | 1 | Add |
| 17 |
BOLT, HEXAGON
970170601200
|
1,33 € | 1 | Add |
| 18 |
WASHER, PLATE
902010602000
|
3,43 € | 5 | Add |
