Yamaha OFF-ROAD YZ125 2003

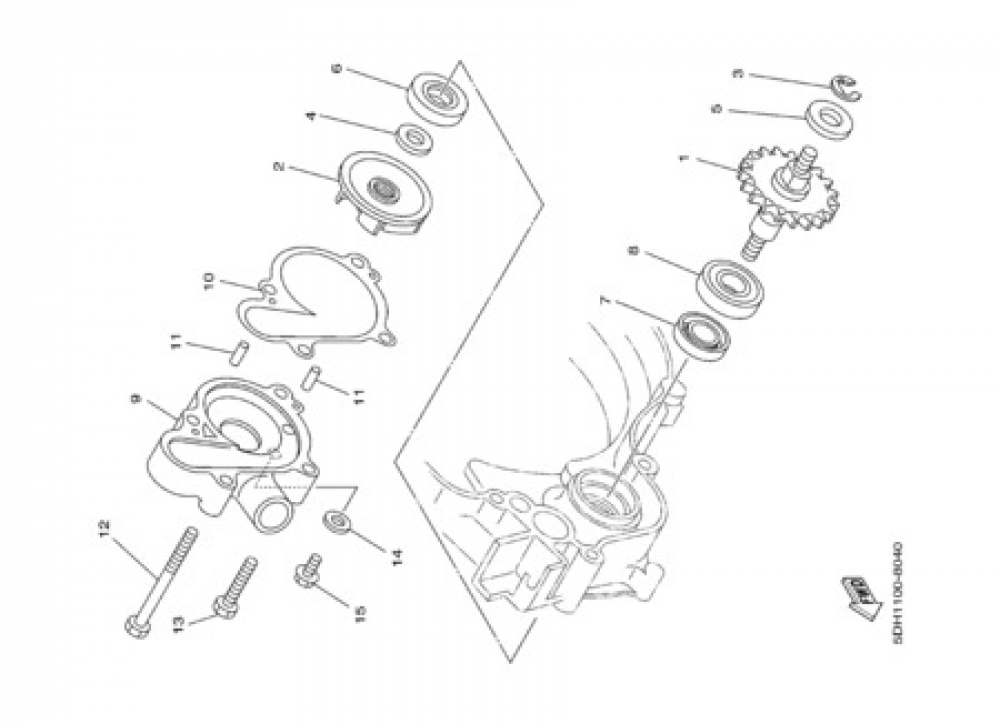

Add model to garageWATER PUMP Yamaha YZ125 2003
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
GEAR, IMPELLER SHAFT
5DH124590100
|
153,62 € | 1 | Add |
| 2 |
IMPELLER, WATER PUMP
5DH124510000
|
64,76 € | 1 | Add |
| 3 |
CIRCLIP(53L)
990010660000
|
0,46 € | 5 | Add |
| 4 |
WASHER, PLATE(3XP)
90201083P500
|
2,88 € | 1 | Add |
| 5 |
WASHER, PLATE (3L7)
902010878400
|
3,37 € | 1 | Add |
| 6 |
OIL SEAL
931091107300
|
9,86 € | 1 | Add |
| 7 |
SEAL, OIL (30X)
931021232100
|
15,01 € | 1 | Add |
| 8 |
BRG,R-B 6001 28MM 28G KY
933060010500
|
16,78 € | 1 | Add |
| 9 |
COVER, HOUSING
4JY124220100
|
Obsolete | 1 | Not available |
| 10 |
GASKET, HOUSING COVER 2
4JY124280000
|
10,04 € | 1 | Add |
| 11 |
PIN,DOWEL (603)
936041001100
|
2,57 € | 5 | Add |
| 12 |
BOLT, SMALL FLANGE
950270606500
|
1,66 € | 1 | Add |
| 13 |
BOLT, SMALL FLANGE
950270603000
|
0,93 € | 1 | Add |
| 14 |
GASKET 256113960000
904300601400
|
2,33 € | 1 | Add |
| 15 |
BOLT, FLANGE(4MY)
950270601000
|
0,22 € | 1 | Add |
