Yamaha SPORT HERITAGE XSR 700 2017

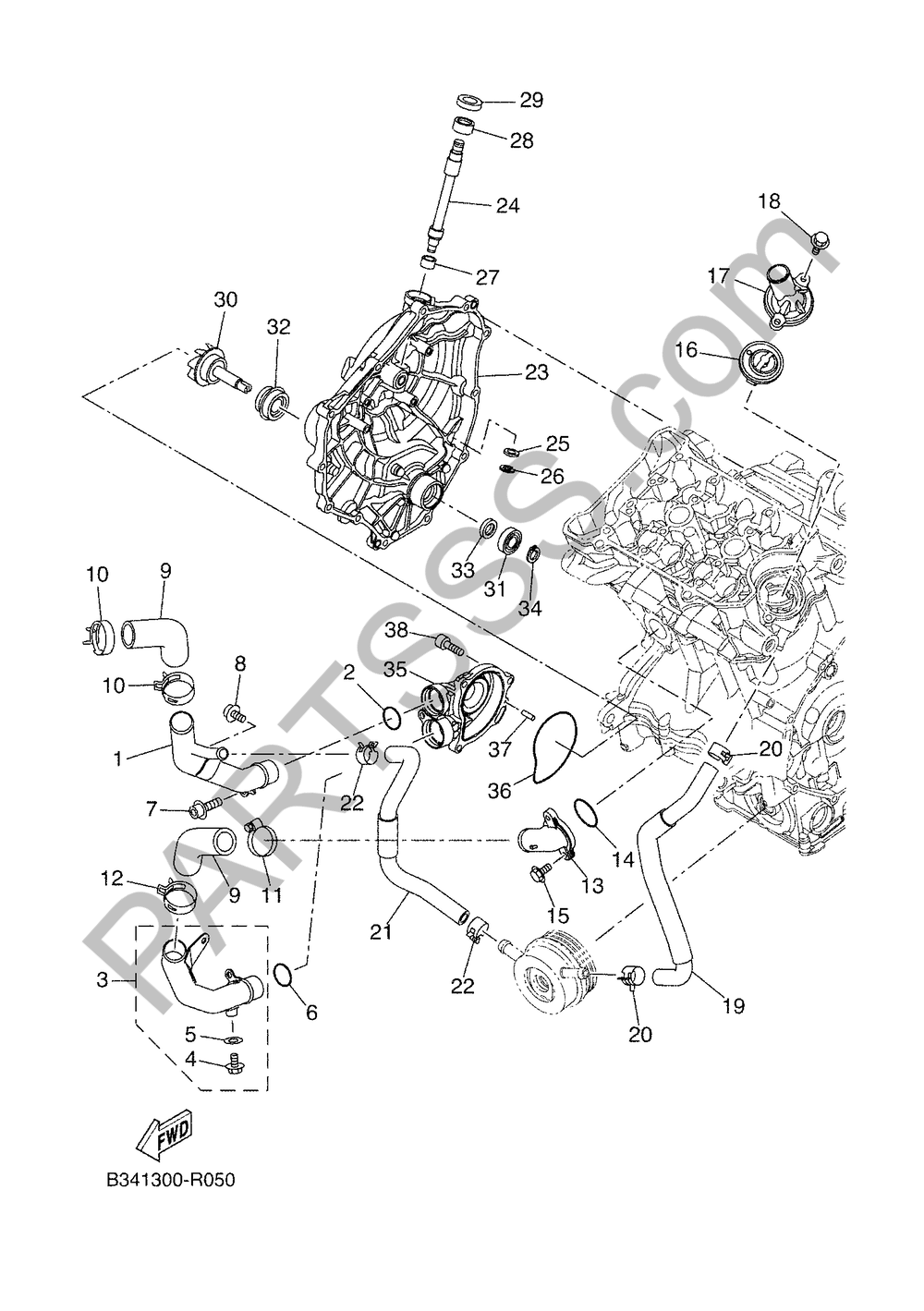

Add model to garageBOMBA DE AGUA Yamaha XSR 700 2017
Pos. | Ref./Description | Price | Qty. | |
---|---|---|---|---|
1 |
TUBO 1
1WS124810100
|
121,56 € | 1 | Add |
2 |
O-RING
93210235A100
|
5,97 € | 1 | Add |
3 |
TUBO 2
1WS124820100
|
104,99 € | 1 | Add |
4 |
BOLT, FLANGE
950220601000
|
0,45 € | 1 | Add |
5 |
GASKET 256113960000
904300601400
|
2,27 € | 1 | Add |
6 |
O-RING
93210235A100
|
5,97 € | 1 | Add |
7 |
BOLT,SOCKET HEAD
913140601400
|
0,51 € | 1 | Add |
8 |
BOLT, HEXAGON SOCKET HEAD
901100615200
|
0,84 € | 1 | Add |
9 |
HOSE 1
1WS125760000
|
10,44 € | 1 | Add |
10 |
CLIP
90467290A000
|
6,57 € | 1 | Add |
11 |
HOSE CLAMP ASSY
904503500100
|
7,08 € | 1 | Add |
12 |
CLIP
90467290A000
|
6,57 € | 1 | Add |
13 |
JOINT 1
1WS124690000
|
46,34 € | 1 | Add |
14 |
JUNTA T RICA
932103300600
|
4,98 € | 1 | Add |
15 |
BOLT, FLANGE
958170602000
|
1,22 € | 1 | Add |
16 |
TERMOSTATO CONJUNTO
1WS124100100
|
48,81 € | 1 | Add |
17 |
COVER, THERMOSTAT
1WS124130000
|
76,57 € | 1 | Add |
18 |
BOLT, FLANGE
958170602000
|
1,22 € | 1 | Add |
19 |
HOSE 5
1WS125880000
|
31,23 € | 1 | Add |
20 |
CLIP
90467170A600
|
3,82 € | 1 | Add |
21 |
HOSE 6
1WS125890000
|
17,41 € | 1 | Add |
22 |
CLIP
90467170A600
|
3,82 € | 1 | Add |
23 |
COVER, CRANKCASE 2
1WS154210000
|
122,91 € | 1 | Add |
24 |
AXLE, PUSH LEVER
2D1163820000
|
47,26 € | 1 | Add |
25 |
WASHER(6TA)
929070860000
|
0,60 € | 1 | Add |
26 |
CIRCLIP(6L2)
990800760000
|
0,60 € | 5 | Add |
27 |
BEARING
933171109600
|
9,44 € | 1 | Add |
28 |
BEARING
933152157000
|
6,01 € | 1 | Add |
29 |
OIL SEAL (3X3)
931021521200
|
11,35 € | 1 | Add |
30 |
IMPELLER SHAFT ASSY
1WS124500000
|
26,87 € | 1 | Add |
31 |
BRG,R-B 6001 28MM 28G KY
933060010500
|
16,45 € | 1 | Add |
32 |
SEAL, MECHANICAL
5VK124380000
|
36,21 € | 1 | Add |
33 |
OIL SEAL
931011217300
|
10,90 € | 1 | Add |
34 |
CIRCLIP(10Y)
990091240000
|
1,70 € | 1 | Add |
35 |
COVER, HOUSING
1WS124220000
|
49,14 € | 1 | Add |
36 |
O-RING
1WS124390000
|
17,85 € | 1 | Add |
37 |
PIN,DOWEL (603)
936031200700
|
2,15 € | 5 | Add |
38 |
BOLT,SOCKET HEAD
913140602000
|
1,94 € | 1 | Add |
