Yamaha SPORT HERITAGE XSR 900 ABARTH 2016

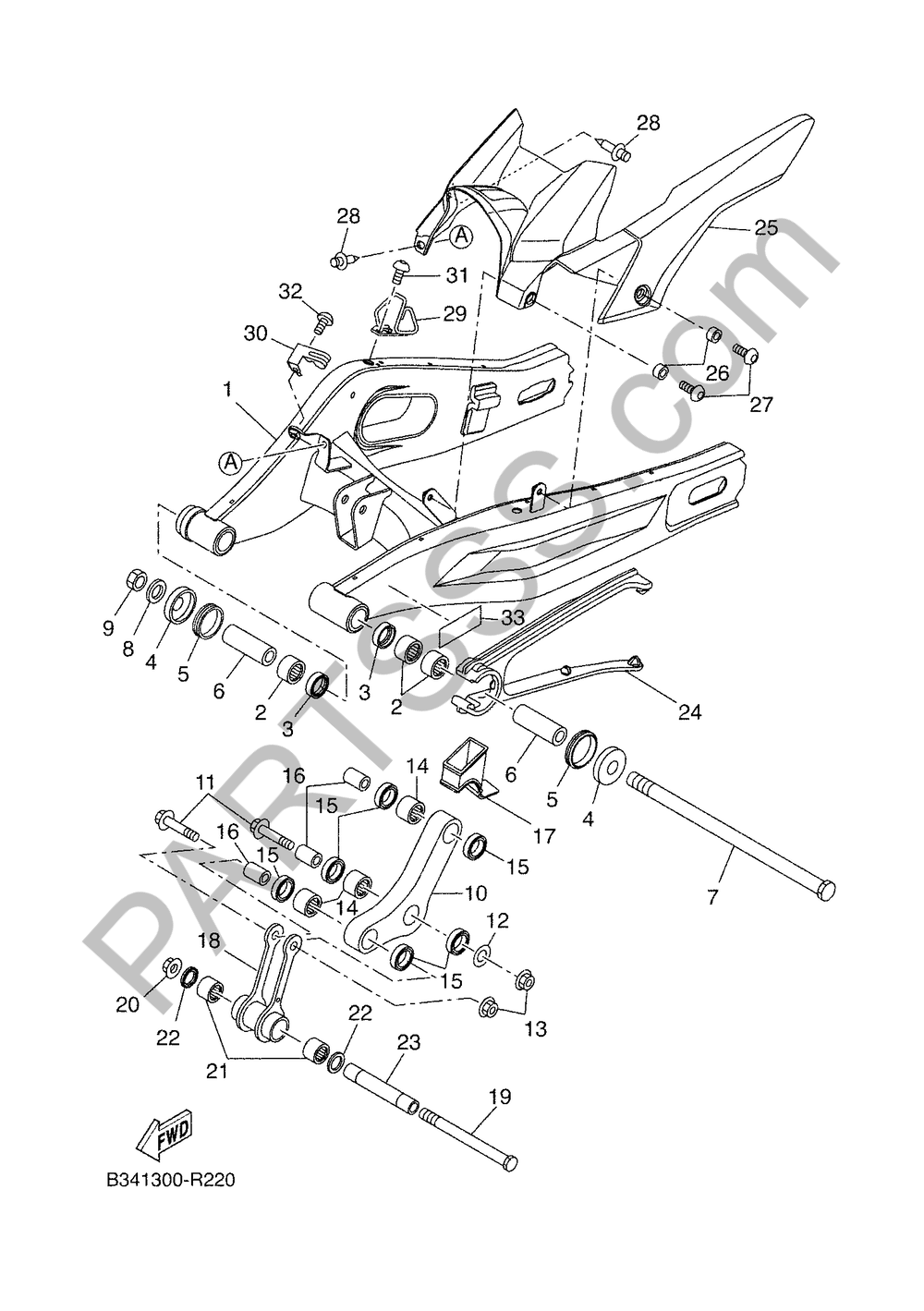

Add model to garageBRAZO TRASERO Yamaha XSR 900 ABARTH 2016
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
TRASERO BRAZO COMP.
1WS221101100
|
885,61 € | 1 | Add |
| 2 |
BEARING, CYLINDRICAL(2VM)
933172226200
|
35,24 € | 1 | Add |
| 3 |
OIL SEAL (23X)
931062201900
|
6,89 € | 1 | Add |
| 4 |
COVER
30X2219X0000
|
11,42 € | 1 | Add |
| 5 |
OIL SEAL (35X41.5X8-483)
931083500400
|
8,46 € | 1 | Add |
| 6 |
BUSH, SOLID(1LV)
903801615800
|
33,77 € | 1 | Add |
| 7 |
SHAFT, PIVOT
1UY221411000
|
81,18 € | 1 | Add |
| 8 |
WASHER, PLATE(33Y)
90201164H400
|
4,97 € | 1 | Add |
| 9 |
NUT, SELF-LOCKING
901851600200
|
11,74 € | 1 | Add |
| 10 |
ARM, RELAY
1WS2217A0000
|
286,62 € | 1 | Add |
| 11 |
BOLT, FLANGE(4GB)
958171004500
|
4,03 € | 1 | Add |
| 12 |
WASHER, PLATE
902011004500
|
2,88 € | 1 | Add |
| 13 |
NUT, U FLANGE
956021020000
|
4,29 € | 1 | Add |
| 14 |
BEARING
933153175800
|
20,57 € | 1 | Add |
| 15 |
OIL SEAL
931091707100
|
4,56 € | 1 | Add |
| 16 |
COLLAR
903871012A00
|
13,44 € | 1 | Add |
| 17 |
BOOT, RUBBER
1WS221890000
|
24,66 € | 1 | Add |
| 18 |
ROD, CONNECTING 1
1WS2217F0000
|
83,45 € | 1 | Add |
| 19 |
BOLT
901011204900
|
10,08 € | 1 | Add |
| 20 |
NUT, SELF-LOCKING
956021220000
|
2,06 € | 1 | Add |
| 21 |
BEARING, CYLINDRICAL(3YL)
933173177100
|
39,17 € | 1 | Add |
| 22 |
OIL SEAL
931091707100
|
4,56 € | 1 | Add |
| 23 |
BUSH
1WS221840000
|
43,81 € | 1 | Add |
| 24 |
SELLO DE GUARDA
1WS221510100
|
28,42 € | 1 | Add |
| 25 |
GUARDABARRO TRANSERO COMP.
B34F16500100
|
123,38 € | 1 | Add |
| 26 |
COLLAR
903870610600
|
1,42 € | 1 | Add |
| 27 |
BOLT,HEX. SOCKET BUTTON
901110611900
|
4,29 € | 1 | Add |
| 28 |
RIVET
902690700700
|
1,55 € | 1 | Add |
| 29 |
SOPORTE DE MANGUERA FRENO
BU2258870000
|
18,19 € | 1 | Add |
| 30 |
HOLDER, BRAKE HOSE 5
1WS2588F0000
|
13,05 € | 1 | Add |
| 31 |
BOLT, BUTTON
920140601600
|
1,60 € | 1 | Add |
| 32 |
BOLT, BUTTON HEAD
920170601000
|
1,60 € | 1 | Add |
| 33 |
ETIQUETA DE FRANJA
B34F16680000
|
10,06 € | 1 | Add |
