Yamaha XJ-SERIES XJ6 Diversion F ABS 2015

Add model to garage

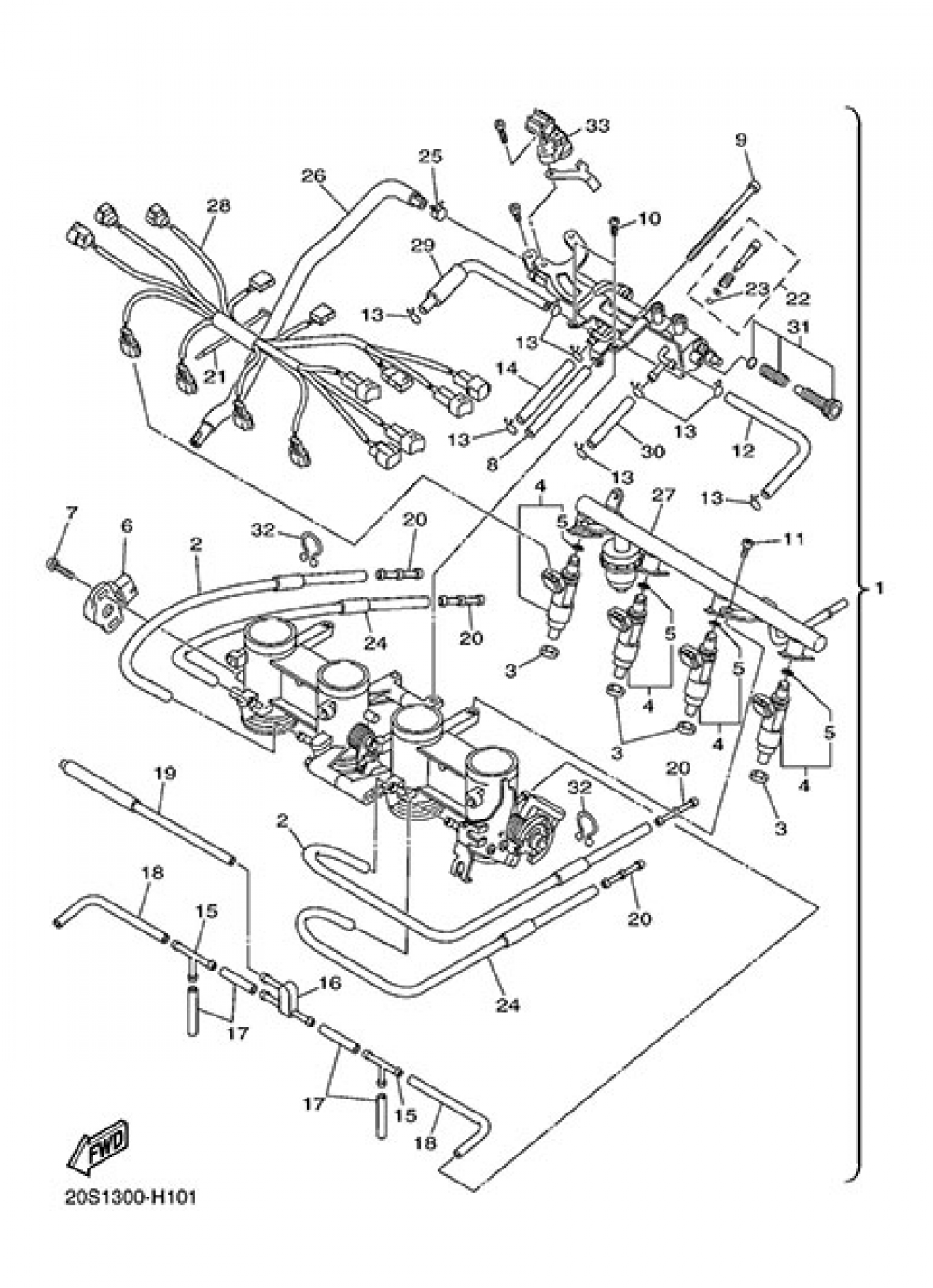

INTAKE 2 Yamaha XJ6 Diversion F ABS 2015

Pos. Ref./Description Price Qty.
1 THROTTLE BODY ASSY
20S137502000
3.278,70 € 1 Add
2 PIPE 1
5VX143480000
28,37 € 1 Add
3 GASKET, MANIFOLD
8FP135560000
9,88 € 1 Add
4 INJECTOR ASSY
5VX137610000
278,94 € 1 Add
5 O-RING
5PS141470000
11,54 € 1 Add
6 THROTTLE SENSOR ASSY
2D1858850000
264,91 € 1 Add
7 SCREW
4KM244530000
4,94 € 1 Add
8 PIPE
5VX141490000
19,60 € 1 Add
9 SCREW
5VX145650000
4,00 € 1 Add
10 SCREW, PAN HEAD(3LA)
985170501000 985070501000
0,65 € 1 Add
11 SCREW, PAN
985170601200 985070601200
0,65 € 1 Add
12 PIPE
5VX143960000
34,57 € 1 Add
13 CLIP
3UH149370000
1,65 € 1 Add
14 HOSE
5VX149870000
9,64 € 1 Add
15 PIPE, JOINT 1
68V243760000
11,13 € 1 Add
16 NIPPLE
3XV142510000
31,32 € 1 Add
17 PIPE 1
5FL143481000
4,57 € 1 Add
18 HOSE, VACUUM SENSING 4
68V135330000
12,55 € 1 Add
19 HOSE
5VX1410E0000
29,90 € 1 Add
20 NIPPLE
5PW142510000
3,56 € 1 Add
21 CLIP
4KM141370000
10,14 € 1 Add
22 AIR SCREW SET
5JW141040000
26,36 € 1 Add
23 O-RING, PILOT SCREW
3H1141470000
10,80 € 1 Add
24 PIPE
5VX143490000
27,95 € 1 Add
25 CLIP(3BM)
904671013500 904671109000
2,22 € 1 Add
26 HOSE 2
20S1243E0000
39,58 € 1 Add
