Yamaha 125cc SCOOTERS Bw's 125 2005

Add model to garage

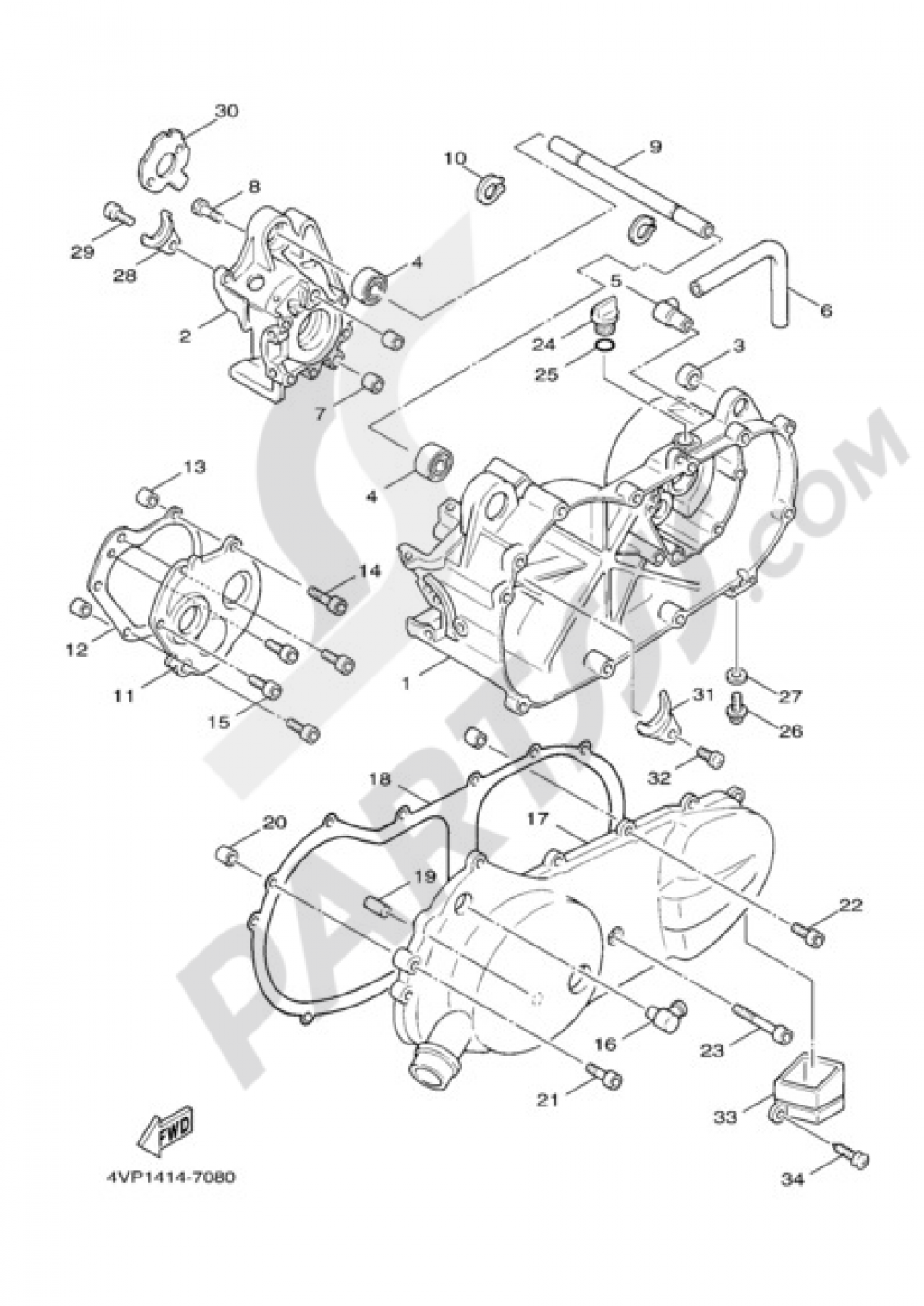

CRANKCASE Yamaha Bw's 125 2005

Pos. Ref./Description Price Qty.
1 CRANKCASE 1
5FAE51111200
590,86 € 1 Add
2 CRANKCASE 2
4VPE51210000
521,66 € 1 Add
3 BUSHING, REAR CUSHION
164222160000 4X6F22160000
8,12 € 1 Add
4 BRG.
93306003Y400
25,37 € 1 Add
5 BREATHER
3XGE53710000
0,66 € 5 Add
6 PIPE, BREATHER
4VPE53730000
4,75 € 1 Add
8 BOLT,SOCKET
913170603500 913180603500
1,37 € 1 Add
9 SPACER, ENGINE MOUNT
3XGE53170000
14,93 € 1 Add
10 CIRCLIP
9341017X0000 990091740000
0,39 € 10 Add
11 COVER, CRANKCASE 2
4VPE54210100 4VPE54210000
64,36 € 1 Add
12 GASKET, CRANKCASE
5DAE54611000 5DAE54610000
14,74 € 1 Add
13 PIN, DOWEL
918101480700
1,28 € 1 Add
14 BOLT,SOCKET
913170603500 913180603500
1,37 € 1 Add
15 BOLT,SOCKET
913170602000 913180602000
0,39 € 1 Add
16 NOZZLE 1
4VPE54390000
1,28 € 5 Add
17 COVER, CRANKCASE 1
4VPE54110033
151,19 € 1 Add
18 GASKET, CRANKCASE
5DAE54511000 5DAE54510000
14,74 € 1 Add
19 SHAFT
4VPE56590000
4,42 € 1 Add
20 PIN, DOWEL
918101480700
1,28 € 1 Add
21 BOLT,SOCKET
913170602500
1,50 € 5 Add
22 BOLT,SOCKET
913170603500
1,37 € 1 Add
23 BOLT, HEXAGON SOCKET HEAD(M01)
9011006X8100 913170604500
Obsolete 1 Not available
24 PLUG, OIL
4J2153631000 4Y4E53630000
4,98 € 1 Add
25 O-RING (26H)
932101457900 932101480500
1,44 € 5 Add
26 BLT,HEX,1/4-20X5/8
9010508X1500 958070801600
1,55 € 10 Add
27 WASHER, PLATE 3411117500
902010808700 904300811900
2,99 € 1 Add
