Yamaha 125cc SCOOTERS Cygnus X 125 2008

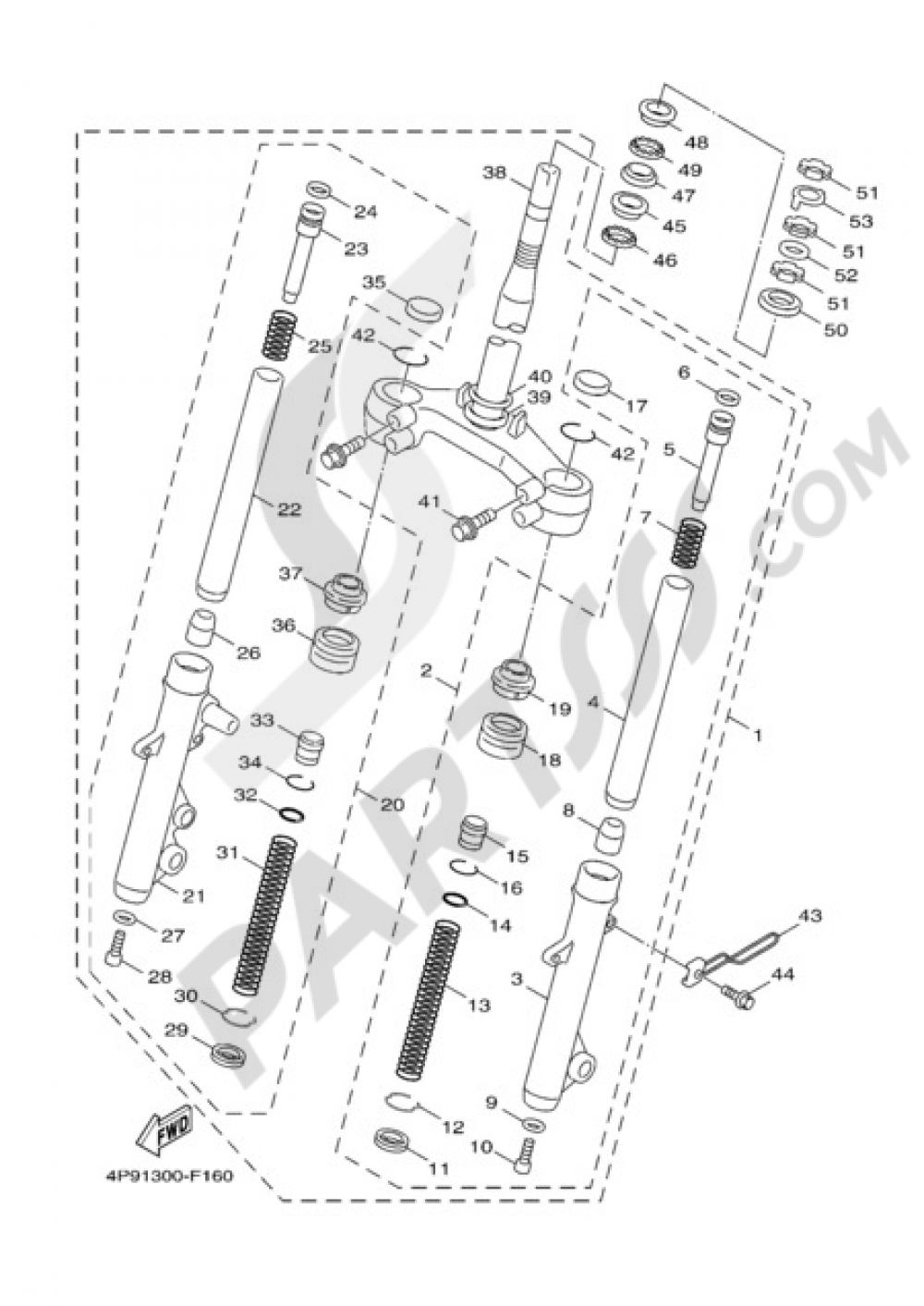

Add model to garageFRONT FORK Yamaha Cygnus X 125 2008
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
FRONT FORK ASSY
4P9F31000000
|
428,68 € | 1 | Add |
| 2 |
FRONT FORK ASSY (L
4P9F31020000
|
188,84 € | 1 | Add |
| 3 |
TUBE, OUTER (LEFT)
4P9F31260000
|
167,59 € | 1 | Add |
| 4 |
INNER TUBE COMP.1
4P9F31100000
|
137,60 € | 1 | Add |
| 5 |
SEAT, SPRING UPPER
4P9F31420000
|
17,52 € | 1 | Add |
| 6 |
PISTON RING
4P9F318X0000
|
3,70 € | 1 | Add |
| 7 |
SPRING, REBOUND
4P9F31510000
|
2,49 € | 1 | Add |
| 8 |
PISTON, FRONT FORK
4P9F31710000
|
4,03 € | 1 | Add |
| 9 |
GASKET
4P9F31580000
|
8,63 € | 1 | Add |
| 10 |
BOLT, HEXAGON SOCK
4P9F31810000
|
3,25 € | 1 | Add |
| 11 |
OIL SEAL
4C6F31450000
|
15,23 € | 1 | Add |
| 12 |
RING, PISTON
4P9F31570000
|
1,61 € | 1 | Add |
| 13 |
SPRING, FRONT FORK
4P9F31410000
|
10,84 € | 1 | Add |
| 14 |
O-RING
4C6F31470000
|
1,17 € | 1 | Add |
| 15 |
COLLAR
4P9F31130000
|
6,17 € | 1 | Add |
| 16 |
RING, FELT
4P9F31550000
|
1,88 € | 1 | Add |
| 17 |
PLUG, INNER TUBE
4P9F31540000
|
3,10 € | 1 | Add |
| 18 |
COVER
4P9F331G0000
|
3,38 € | 1 | Add |
| 19 |
BOOT
4P9F31910000
|
5,86 € | 1 | Add |
| 20 |
FRONT FORK ASSY (R
4P9F31030000
|
188,84 € | 1 | Add |
| 21 |
TUBE, OUTER (RIGHT
4P9F31360000
|
167,59 € | 1 | Add |
| 22 |
INNER TUBE COMP.1
4P9F31100000
|
137,60 € | 1 | Add |
| 23 |
SEAT, SPRING UPPER
4P9F31420000
|
17,52 € | 1 | Add |
| 24 |
PISTON RING
4P9F318X0000
|
3,70 € | 1 | Add |
| 25 |
SPRING, REBOUND
4P9F31510000
|
2,49 € | 1 | Add |
| 26 |
PISTON, FRONT FORK
4P9F31710000
|
4,03 € | 1 | Add |
| 27 |
GASKET
4P9F31580000
|
8,63 € | 1 | Add |
