Yamaha 125cc SCOOTERS X-City 125 2009

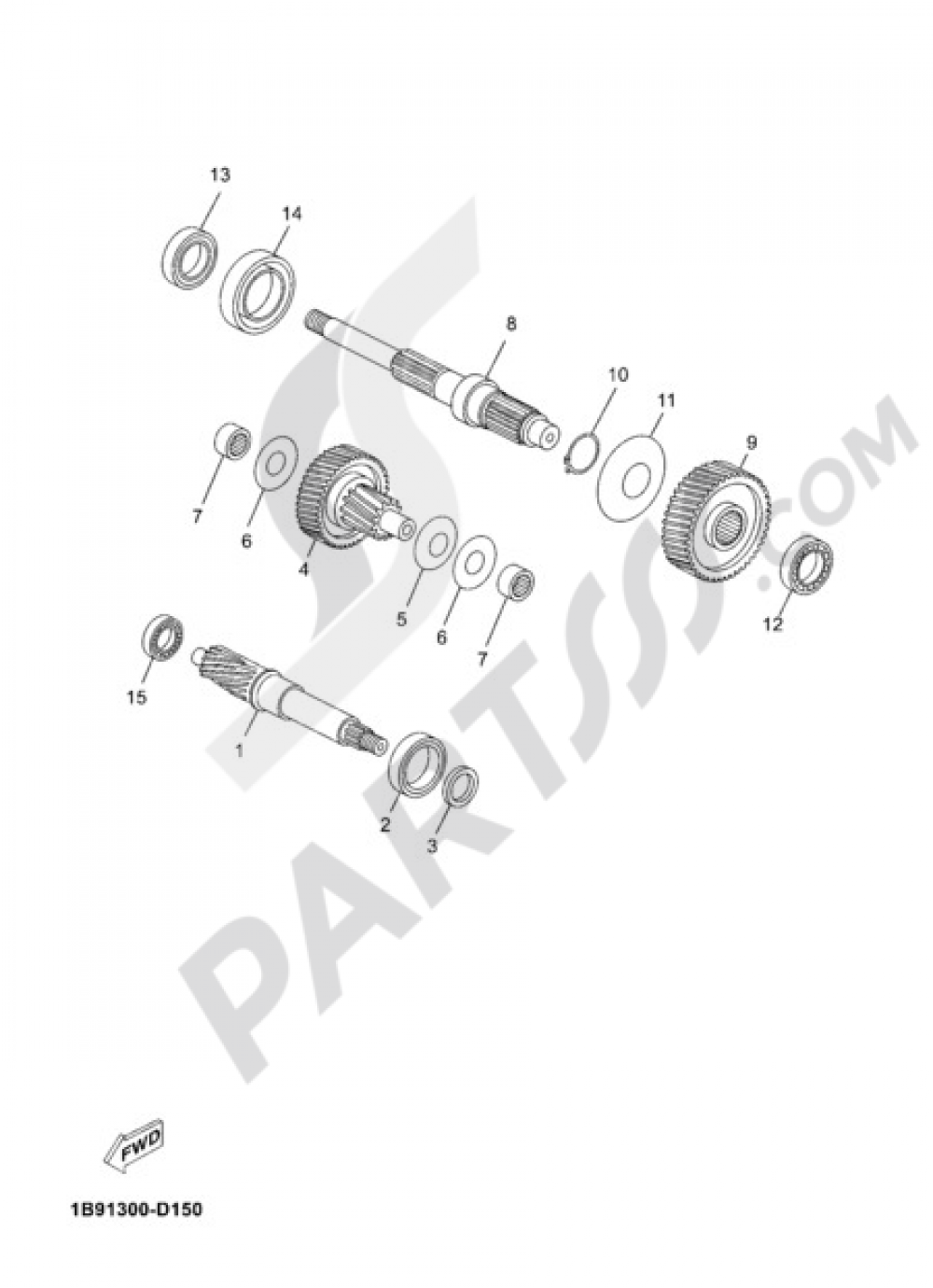

Add model to garageTRANSMISSION Yamaha X-City 125 2009
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
GEAR, PRIMARY DRIVE
1B9E61110100
|
260,96 € | 1 | Add |
| 2 |
BEARING
93306255Y100
|
14,75 € | 1 | Add |
| 3 |
OIL SEAL(1JY)
931022580000
|
16,82 € | 1 | Add |
| 4 |
MAIN AXLE COMP.
16PE74100100
|
Obsolete | 1 | Not available |
| 5 |
WASHER, CONICAL SP
902081580200
|
5,06 € | 1 | Add |
| 6 |
WASHER, PLATE
9020115X0500
|
6,21 € | 1 | Add |
| 7 |
BEARING
93311415Y000
|
30,89 € | 1 | Add |
| 8 |
AXLE, DRIVE
1B9E74210000
|
198,26 € | 1 | Add |
| 9 |
GEAR, 1ST WHEEL
16PE72110100
|
Obsolete | 1 | Not available |
| 10 |
CIRCLIP
9341025X0000
|
0,29 € | 10 | Add |
| 11 |
BOLT,HEX 5/16-18
902082580100
|
5,87 € | 1 | Add |
| 12 |
BRG,R-B 6000 26MM 19G NT
93306303YA00
|
12,73 € | 1 | Add |
| 13 |
BEARING
93306272Y100
|
36,83 € | 1 | Add |
| 14 |
OIL SEAL
931023200400
|
16,82 € | 1 | Add |
| 15 |
BRG,R-B 6000 26MM 19G NT
93306302X900
|
12,04 € | 1 | Add |
