Yamaha 125cc SCOOTERS X-Max 125 2006

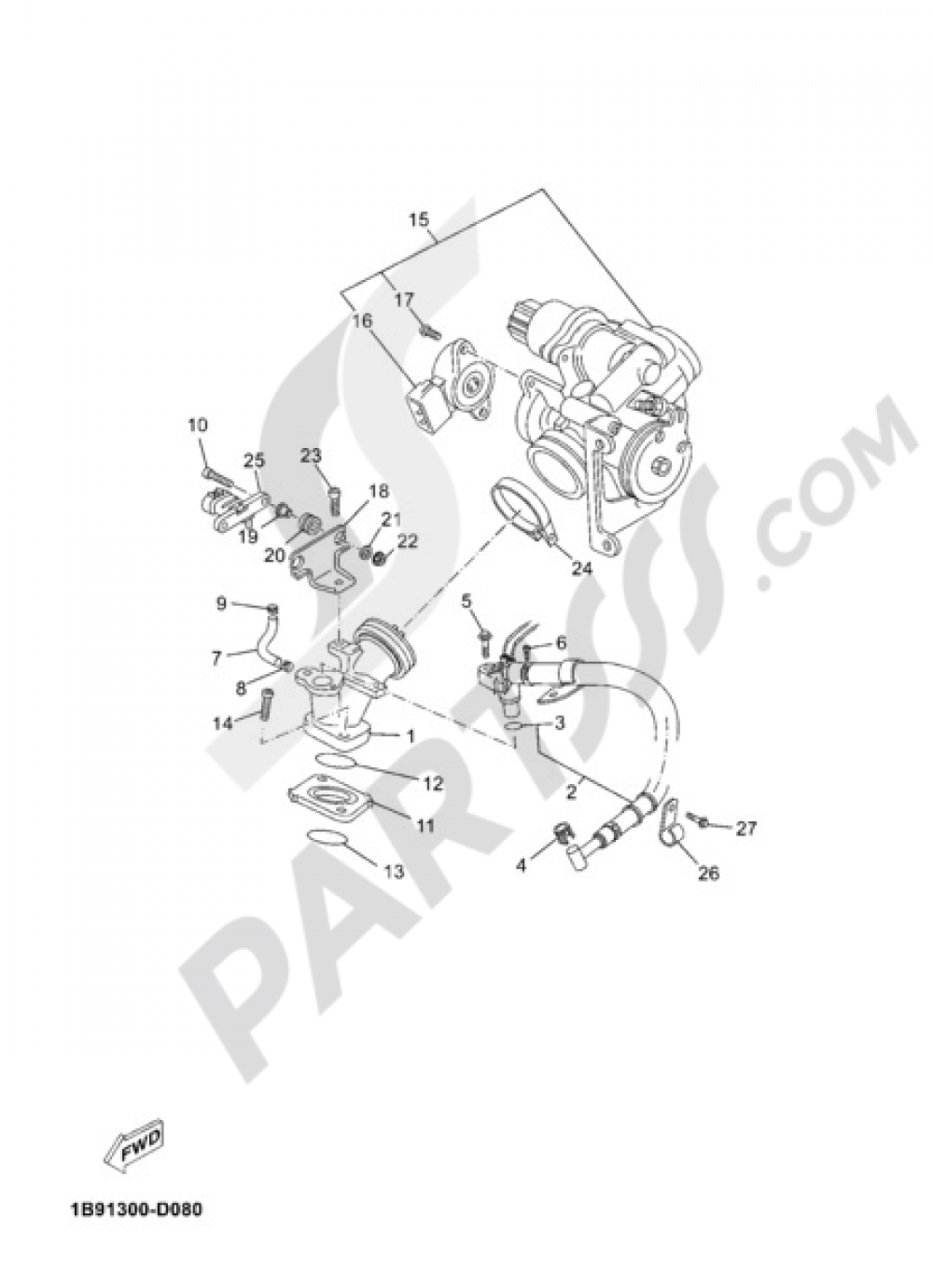

Add model to garageINTAKE Yamaha X-Max 125 2006
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
MANIFOLD
1B9E35850000
|
87,20 € | 1 | Add |
| 2 |
PIPE INLET ASSEMBLY
1B9139300000
|
Obsolete | 1 | Not available |
| 3 |
O-RING
5CA141470000
|
11,96 € | 1 | Add |
| 4 |
CLAMP 1
5VU241350000
|
16,78 € | 1 | Add |
| 5 |
BOLT,SOCKET
913170601000
|
1,60 € | 1 | Add |
| 6 |
BOLT, FLANGE
958170602500
|
0,52 € | 1 | Add |
| 7 |
HOSE
1B9E38950000
|
2,57 € | 1 | Add |
| 8 |
CLIP(4BH)
904670713800
|
1,42 € | 1 | Add |
| 9 |
CLIP (7R4)
904670705500
|
1,42 € | 1 | Add |
| 10 |
BOLT, HEXAGON SOCKET HEAD(1VJ)
901100613800
|
3,49 € | 1 | Add |
| 11 |
JOINT
1B9E35950000
|
19,62 € | 1 | Add |
| 12 |
O-RING
932103280700
|
1,98 € | 10 | Add |
| 13 |
O-RING
932103280700
|
1,98 € | 10 | Add |
| 14 |
BOLT
9010906X0800
|
1,26 € | 10 | Add |
| 15 |
THROTTLE BODY ASSY
1B9137500000
|
585,17 € | 1 | Add |
| 16 |
THROTTLE SENSOR ASSY
5RU858850000
|
125,47 € | 1 | Add |
| 17 |
SCREW
5CA142160000
|
0,62 € | 1 | Add |
| 18 |
BRACKET 1
1B9E42910000
|
11,03 € | 1 | Add |
| 19 |
COLLAR
9038706X3300
|
4,03 € | 1 | Add |
| 20 |
GROMMET
1B9E44350000
|
4,42 € | 1 | Add |
| 21 |
WASHER, PLATE
9020106X2300
|
1,60 € | 1 | Add |
| 22 |
NUT, FLANGE(7NB)
957800650000
|
1,77 € | 1 | Add |
| 23 |
BOLT, FLANGE
958170601000
|
0,28 € | 1 | Add |
| 24 |
BAND
1B9135750000
|
6,30 € | 1 | Add |
| 25 |
SENSOR, PRESSURE
1C7823800000
|
271,42 € | 1 | Add |
| 26 |
HOLDER, FUEL PIPE
1B9F13741000
|
Obsolete | 1 | Not available |
| 27 |
BOLT, FLANGE
9580M0601200
|
4,36 € | 1 | Add |
