Yamaha 125cc SCOOTERS X-Max 125 2016

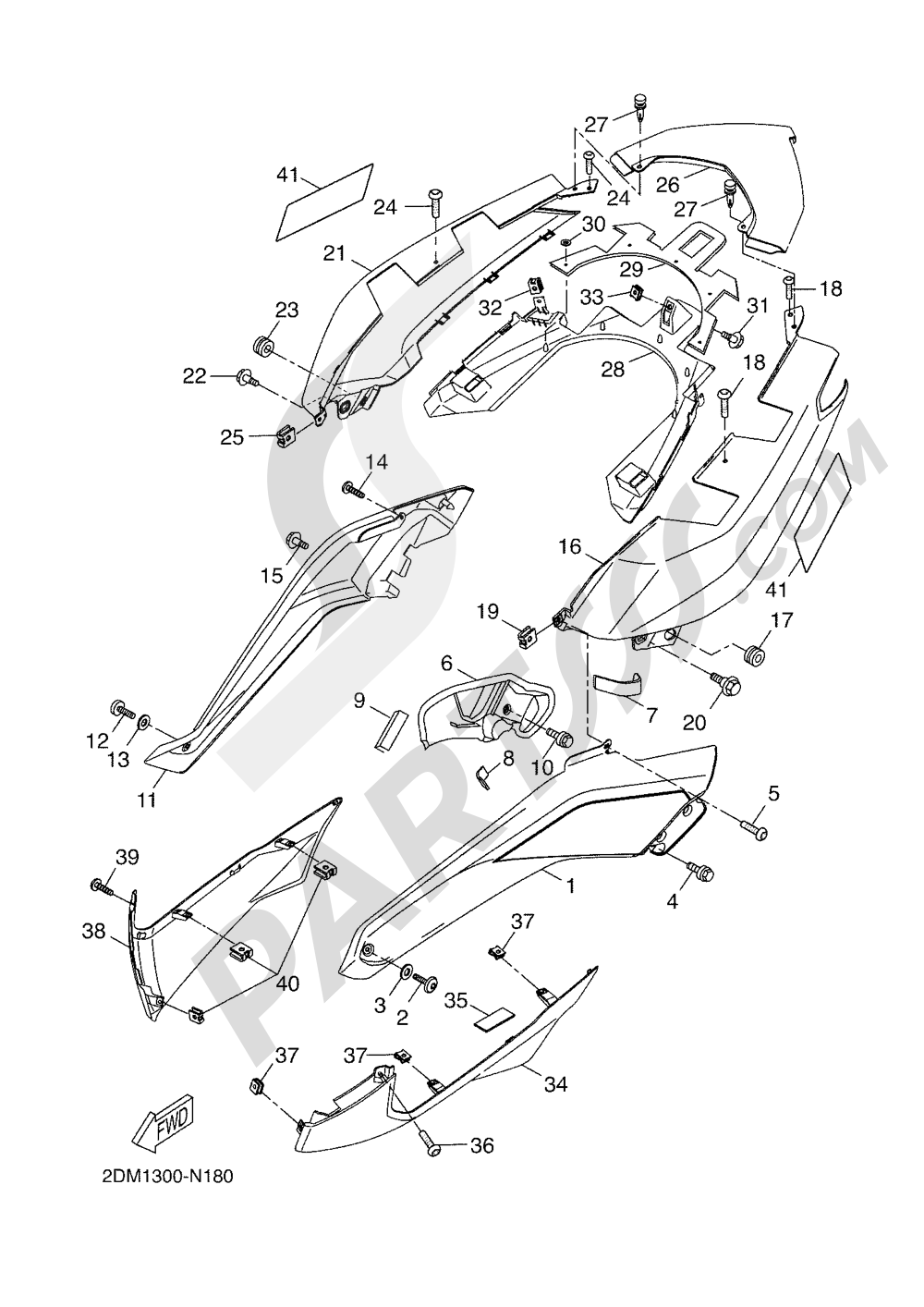

Add model to garageSIDE FAIRING / COWLING Yamaha X-Max 125 2016
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
|
COVER, SIDE 5 MWM3
1SDF171E00P2
|
81,85 € | 1 | Add | |
|
CUBIERTA LATERAL 4
1SDF174100P5
|
206,05 € | 1 | Add | |
|
CUBIERTA LATERAL
1SDF173100P5
|
206,05 € | 1 | Add | |
|
MUELLE, CUBIERTA LATERAL 2
1SDF171M00P5
|
132,46 € | 1 | Add | |
|
MUELLE , CUBIERTA LATERAL 1
1SDF171L00P5
|
132,46 € | 1 | Add | |
|
CUBIERTA LATERAL 5
1SDF171E00P5
|
81,85 € | 1 | Add | |
|
COVER, SIDE 4 MWM3
1SDF174100P2
|
206,05 € | 1 | Add | |
|
COVER, SIDE 3 MWM3
1SDF173100P2
|
206,05 € | 1 | Add | |
|
MOLE, SIDE COVER 2 MWM3
1SDF171M00P2
|
132,46 € | 1 | Add | |
|
MOLE, SIDE COVER 1 MWM3
1SDF171L00P2
|
132,46 € | 1 | Add | |
| 1 |
LID, SIDE COVER MBL2
2DMF171600P0
|
137,43 € | 1 | Add |
| 2 |
SCREW(4DN)
901490630200
|
5,97 € | 1 | Add |
| 3 |
RONDELLE
9020206X0100
|
3,62 € | 1 | Add |
| 4 |
BOLT, WITH WASHER
9011906X0200
|
0,74 € | 10 | Add |
| 5 |
SCREW, TAPPING
9016705X0600
|
2,17 € | 1 | Add |
| 6 |
PANEL INNER
2DMF175E1000
|
9,39 € | 1 | Add |
| 7 |
DAMPER PLATE
9052010X0100
|
20,21 € | 1 | Add |
| 8 |
DAMPER PLATE
9052010X0200
|
20,21 € | 1 | Add |
| 9 |
DAMPER PLATE
9052010X0300
|
20,21 € | 1 | Add |
| 10 |
PERNO
9010906X1800
|
10,08 € | 1 | Add |
| 11 |
LID, SIDE COVER 2 MBL2
2DMF172600P0
|
137,15 € | 1 | Add |
| 12 |
SCREW(4DN)
901490630200
|
5,97 € | 1 | Add |
| 13 |
RONDELLE
9020206X0100
|
3,62 € | 1 | Add |
| 14 |
SCREW, TAPPING
9016705X0600
|
2,17 € | 1 | Add |
| 15 |
BOLT, WITH WASHER
9011906X0200
|
0,74 € | 10 | Add |
| 16 |
COVER, SIDE 3 MNM3
1SDF173100P1
|
206,05 € | 1 | Add |
| 17 |
GROMMET(4BH)
904800155900
|
1,60 € | 1 | Add |
| 18 |
SCREW, TAPPING
9016705X0600
|
2,17 € | 1 | Add |
| 19 |
NUT, SPRING(1YT)
901830504200
|
0,62 € | 5 | Add |
| 20 |
PERNO
9010906X1800
|
10,08 € | 1 | Add |
| 21 |
COVER, SIDE 4 MNM3
1SDF174100P1
|
206,05 € | 1 | Add |
| 22 |
PERNO
9010906X1800
|
10,08 € | 1 | Add |
| 23 |
GROMMET(4BH)
904800155900
|
1,60 € | 1 | Add |
| 24 |
SCREW, TAPPING
9016705X0600
|
2,17 € | 1 | Add |
| 25 |
NUT, SPRING(1YT)
901830504200
|
0,62 € | 5 | Add |
| 26 |
COVER, SIDE 5 MNM3
1SDF171E00P1
|
81,85 € | 1 | Add |
| 27 |
RIVET
902690600100
|
1,55 € | 1 | Add |
| 28 |
COVER, SIDE 6
2DMF171X0000
|
32,87 € | 1 | Add |
| 29 |
PLATE
2DMF176E0000
|
33,86 € | 1 | Add |
| 30 |
NUT, SPRING
9018304X0000
|
7,39 € | 1 | Add |
| 31 |
BOLT, WITH WASHER
9011906X0200
|
0,74 € | 10 | Add |
| 32 |
NUT, SPRING(1YT)
901830504200
|
0,62 € | 5 | Add |
| 33 |
TUERCA DE RESORTE
9018306X0300
|
13,57 € | 1 | Add |
| 34 |
MOLE, SIDE COVER 1 MNM3
1SDF171L00P1
|
132,46 € | 1 | Add |
| 35 |
TAPE 1
1SDF173T0000
|
17,22 € | 1 | Add |
| 36 |
SCREW, TAPPING
9016705X0600
|
2,17 € | 1 | Add |
| 37 |
NUT, SPRING(1YT)
901830504200
|
0,62 € | 5 | Add |
| 38 |
MOLE, SIDE COVER 2 MNM3
1SDF171M00P1
|
132,46 € | 1 | Add |
| 39 |
SCREW, TAPPING
9016705X0600
|
2,17 € | 1 | Add |
| 40 |
NUT, SPRING(1YT)
901830504200
|
0,62 € | 5 | Add |
| 41 |
EMBLEM 3D
37PF173B0000
|
48,62 € | 1 | Add |
