Yamaha 125cc DT125RE 2004

Add model to garage

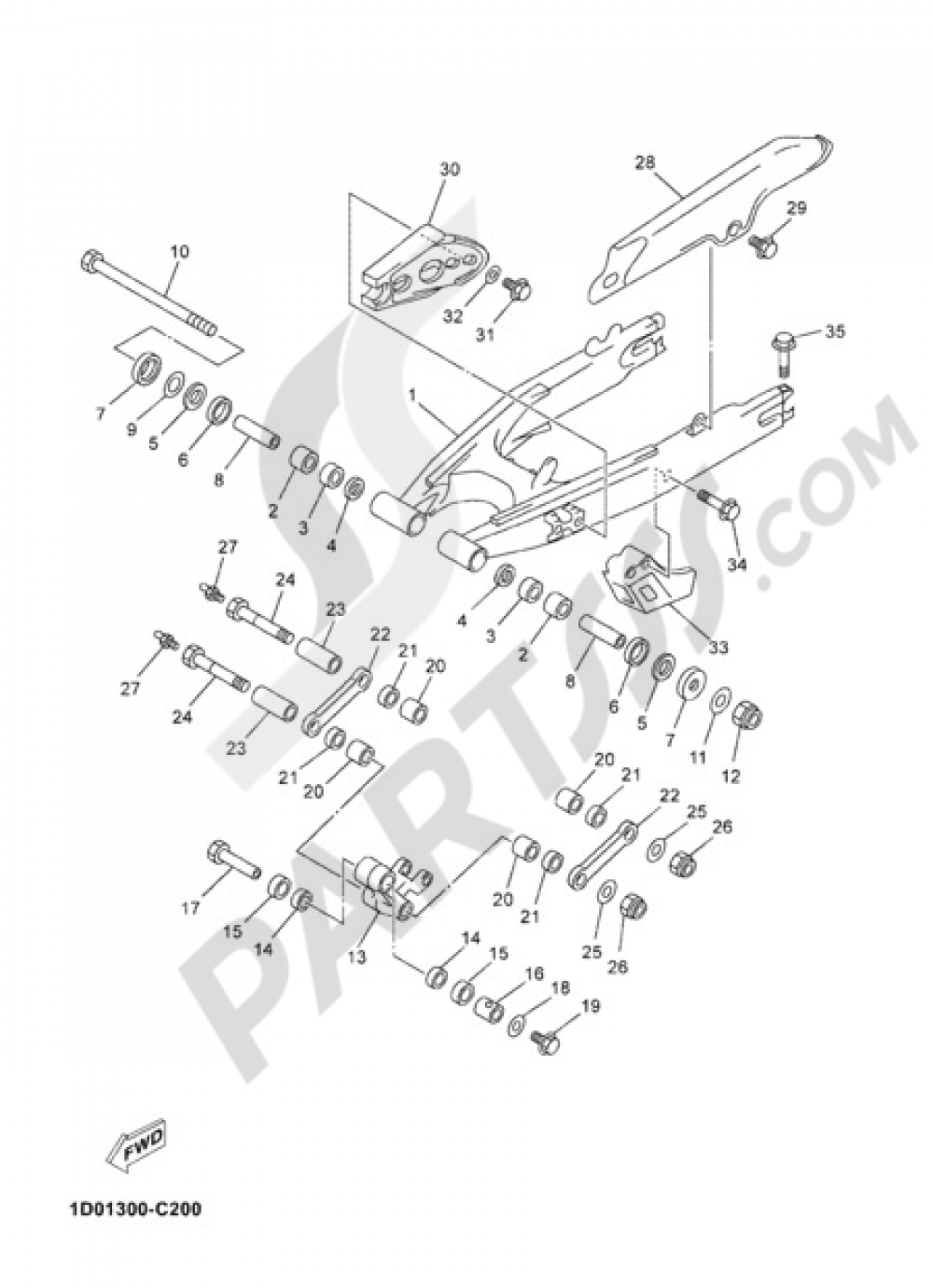

REAR ARM Yamaha DT125RE 2004

Pos. Ref./Description Price Qty.
1 REAR ARM COMP.
3BN221101035
847,70 € 1 Add
2 BEARING, CYLINDRICAL(4PT)
933152225100
45,17 € 1 Add
3 BUSH, SOLID (23X)
903802211100
18,17 € 1 Add
4 OIL SEAL (23X)
931062201900
6,07 € 1 Add
5 WASHER, PLATE(30X)
90201254H800
3,56 € 1 Add
6 OIL SEAL (35X41.5X8-483)
931083500400
7,32 € 1 Add
7 COVER
30X2219X0000
9,44 € 1 Add
8 BUSH, SOLID (3R4)
903801607700
32,47 € 1 Add
9 WASHER, PLATE (5Y1)
90201251F600
2,13 € 1 Add
10 SHAFT, PIVOT
5X6221410100 3R4221410000
46,42 € 1 Add
11 WASHER, PLATE(33Y)
90201164H400
4,32 € 1 Add
12 NUT, U (6TD)
956171610000 901851612700
18,77 € 1 Add
13 ARM, RELAY
3BN2217A1000
Obsolete 1 Not available
14 BEARING, CYLINDRICAL(4RR)
933153205200
43,73 € 1 Add
15 OIL SEAL
931092007600
7,72 € 1 Add
16 COLLAR(3BN)
90387164U700
21,69 € 1 Add
17 NUT, UNION(1LV)
904021000500
20,68 € 1 Add
18 WASHER, PLATE (17K)
90201106F200
3,09 € 1 Add
19 BOLT, FLANGE(3HP)
958171001600
2,27 € 1 Add
20 BUSH (30X)
903862012000
19,03 € 1 Add
21 OIL SEAL
931092007600
7,72 € 1 Add
22 ROD, CONNECTING 1
3BN2217F0000
23,62 € 1 Add
23 COLLAR(3BN)
90387164U800
28,71 € 1 Add
24 BOLT, UNION(2WG)
904011413600
46,97 € 1 Add
25 WASHER, PLATE (5X6)
90201160F600
6,75 € 1 Add
26 NUT, SELF-LOCKING (1J7)
901851407000 901851411200
8,50 € 1 Add
27 NIPPLE, GREASE(6A1)
9370006M0300 937000600400
6,28 € 1 Add
