Yamaha 125cc TT-R125 2002

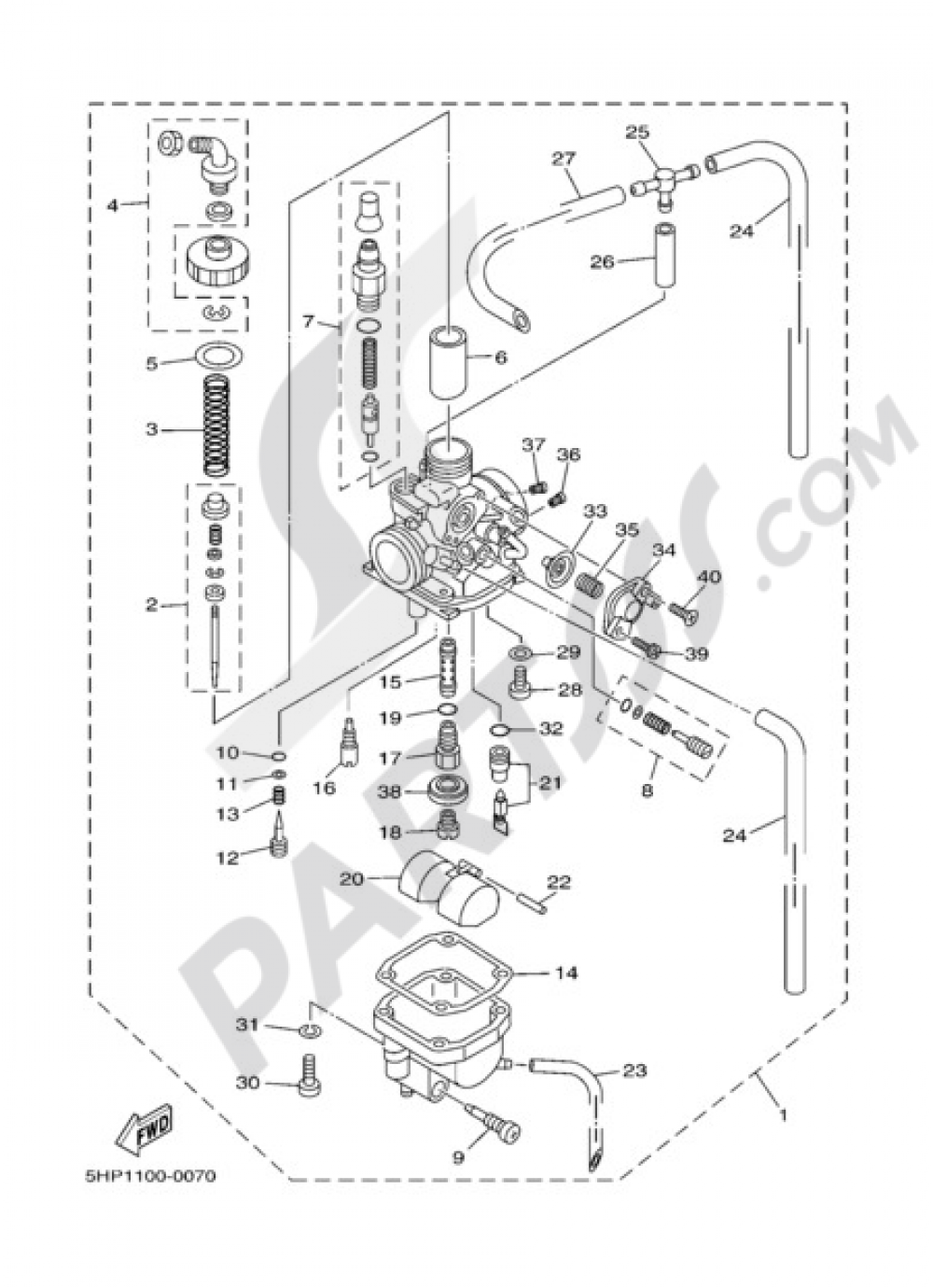

Add model to garageCARBURETOR Yamaha TT-R125 2002
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
CARBURETOR ASSY 1
5HP141011000
|
Obsolete | 1 | Not available |
| 2 |
NEEDLE SET
5HP1490J0000
|
65,52 € | 1 | Add |
| 3 |
SPRING, THROTTLE VALVE
4LS141310000
|
12,85 € | 1 | Add |
| 4 |
CABLE ADJUST SCREW SET
5DG141060000
|
Obsolete | 1 | Not available |
| 5 |
GASKET
4LS141260000
|
Obsolete | 1 | Not available |
| 6 |
VALVE, THROTTLE 1
5HH141122500
|
Obsolete | 1 | Not available |
| 7 |
STARTER SET
5HP1410A1000
|
55,56 € | 1 | Add |
| 8 |
THROTTLE SCREW SET
5HH141030000
|
44,79 € | 1 | Add |
| 9 |
PLUG, DRAIN
4LS141910000
|
10,09 € | 1 | Add |
| 10 |
O-RING, PILOT SCREW
3H1141470000
|
11,76 € | 1 | Add |
| 11 |
WASHER, PILOT SCREW
3H1149620000
|
5,12 € | 1 | Add |
| 12 |
SCREW, PILOT
4LS149232000
|
28,93 € | 1 | Add |
| 13 |
SPRING
5K7141340000
|
8,59 € | 1 | Add |
| 14 |
GASKET, FLOAT CHAMBER
24W141840000
|
9,94 € | 1 | Add |
| 15 |
NOZZLE, MAIN
21V1414M2600
|
58,34 € | 1 | Add |
| 16 |
JET, PILOT (N? 15)
5HP141421500
|
18,36 € | 1 | Add |
| 17 |
SETTER, NEEDLE JET
5HP141450000
|
41,03 € | 1 | Add |
| 18 |
JET,MA1N #102.5
6201423A71A0
|
19,71 € | 1 | Add |
| 18 |
JET, MAIN (N?105)
6201423121A0
|
19,71 € | 1 | Add |
| 19 |
O-RING
583145610000
|
3,42 € | 1 | Add |
| 20 |
FLOAT
5HH141850000
|
50,16 € | 1 | Add |
| 21 |
NEEDLE VALVE SET
5HP141071800
|
70,14 € | 1 | Add |
| 22 |
PIN, FLOAT
127141860000
|
6,65 € | 1 | Add |
| 23 |
HOSE (L700)
9044505M0700
|
6,09 € | 1 | Add |
| 25 |
NIPPLE
66E142510000
|
25,12 € | 1 | Add |
| 26 |
PIPE 1
5HP143480000
|
7,83 € | 1 | Add |
