Yamaha 125cc TT-R125 2004

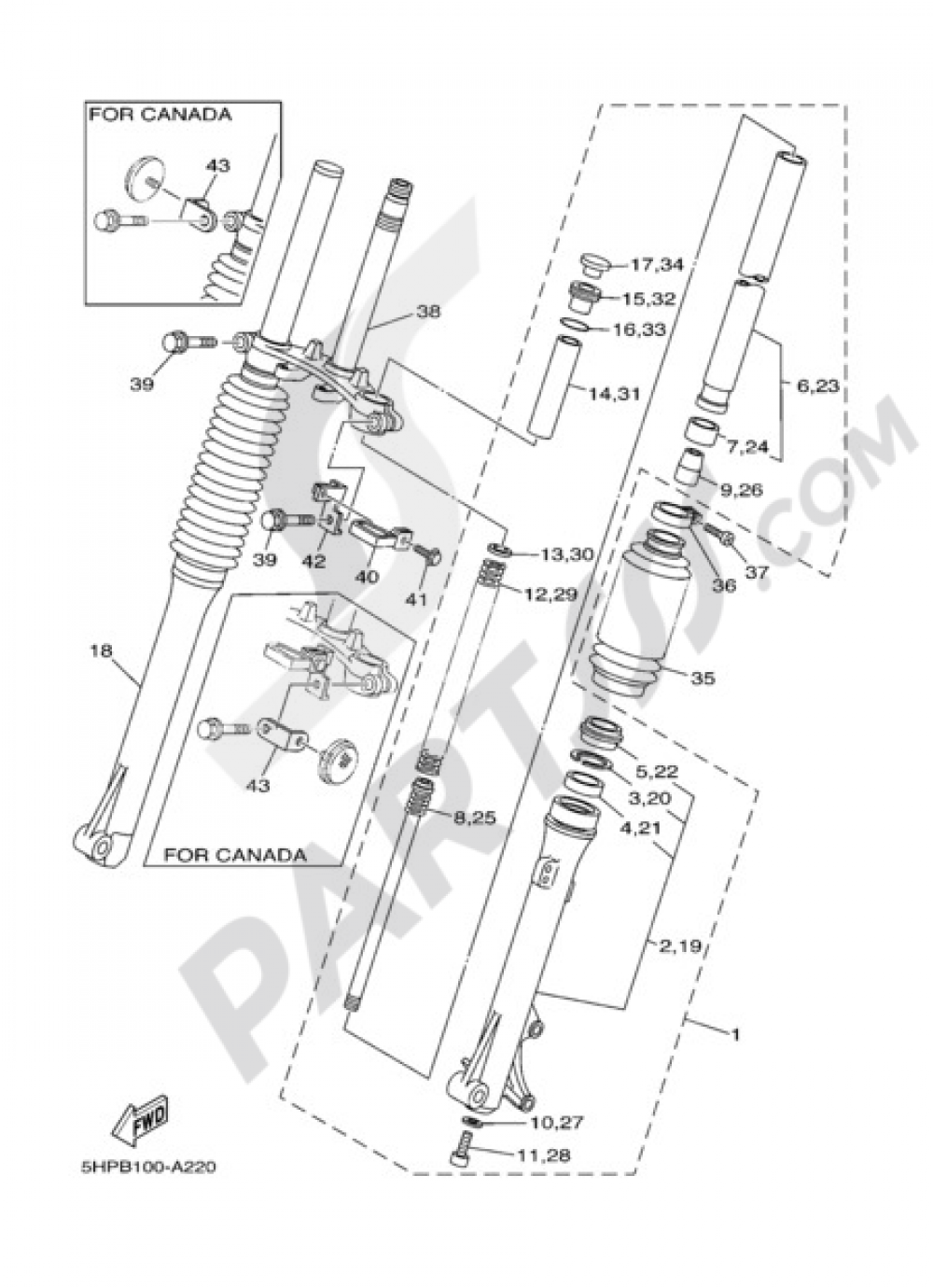

Add model to garageFRONT FORK Yamaha TT-R125 2004
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 28 |
BOLT, HEXAGON SOCKET HEAD
3D8231810000
|
10,80 € | 1 | Add |
| 29 |
SPRING, FRONT FORK
5HP231411000
|
Obsolete | 1 | Not available |
| 30 |
WASHER
5J0231460000
|
Obsolete | 1 | Not available |
| 31 |
SPACER
5HP231181000
|
Obsolete | 1 | Not available |
| 32 |
BOLT, CAP
1X0231110000
|
30,58 € | 1 | Add |
| 33 |
PACKING(O-RING)
146231140000
|
8,55 € | 1 | Add |
| 34 |
CAP
1X0231680000
|
5,60 € | 1 | Add |
| 35 |
BOOT
5HP231910000
|
27,82 € | 1 | Add |
| 36 |
BAND, BOOT
482231924000
|
13,02 € | 1 | Add |
| 37 |
SCREW, PAN HEAD
985170401600
|
0,52 € | 1 | Add |
| 38 |
UNDER BRACKET COMP.
5HP233400000
|
Obsolete | 1 | Not available |
| 39 |
BOLT, FLANGE(3XC)
958241003000
|
3,53 € | 1 | Add |
| 40 |
GUIDE, CABLE
4DA233890000
|
23,64 € | 1 | Add |
| 41 |
BOLT, WITH WASHER
901190507100
|
0,93 € | 1 | Add |
| 42 |
GUIDE, CABLE
5HP2331E0000
|
Obsolete | 1 | Not available |
