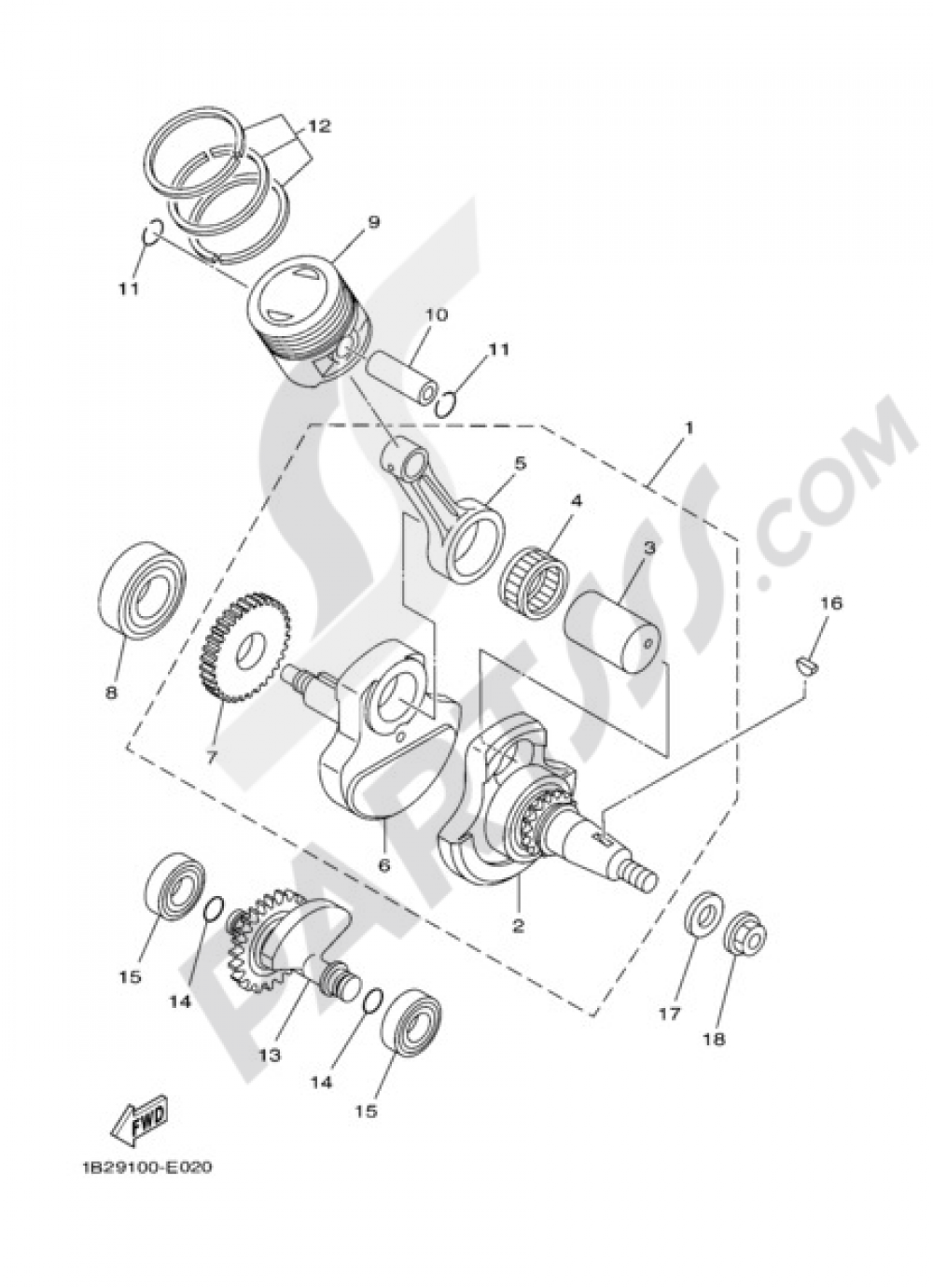

CRANKSHAFT & PISTON Yamaha TT-R125 2006

Pos. Ref./Description Price Qty.
1 CRANKSHAFT ASSY
5HHE14001300 5HHE14001200
418,84 € 1 Add
2 CRANK 1
5HHWE1411100 5HHWE1411000
267,85 € 3700 Add
3 PIN, CRANK 1
4LS116810100
47,30 € 1 Add
4 BEARING
933106290C00
34,70 € 1 Add
5 ROD, CONNECTING
4LS116510200
74,10 € 1 Add
6 CRANK 2
5HHE14221000
127,59 € 3700 Add
7 GEAR, DRIVE
5HHE15360000
82,74 € 1 Add
8 BEARING
93306205YW00
30,83 € 1 Add
9 PISTON (STD)
5HP1163100A0
80,36 € 1 Add
9 PISTON (0.50MM O/S)
5HP116360000
116,31 € 1 Add
9 PISTON (1.00MM O/S)
5HP116380000
116,31 € 1 Add
10 PIN, PISTON
2TK116330000
23,72 € 1 Add
11 CIRCLIP (4G0)
934501606800
1,86 € 2 Add
12 PISTON RING SET (1.00MM O/S)
4LS116070000
54,57 € 1 Add
12 PISTON RING SET (0.50MM O/S)
4LS116050000
54,57 € 1 Add
12 PISTON RING SET (STD)
4LS116030000
46,10 € 1 Add
13 COMPENSADOR COMPLETA
5HHE15000300 5HHE15000200
330,51 € 1 Add
14 O-RING
932101100100
0,90 € 1 Add
15 BRG, R-B (7H4)
933062021100 933062022100
20,15 € 1 Add
16 KEY WOODRUFF 146115450000
902800301700
2,03 € 1 Add
17 WASHER, PLATE (4K8)
90201120E800
4,49 € 1 Add
18 NUT(3EF)
901791265700 901791224800
5,11 € 1 Add
