Yamaha 125cc TT R125LW 2011

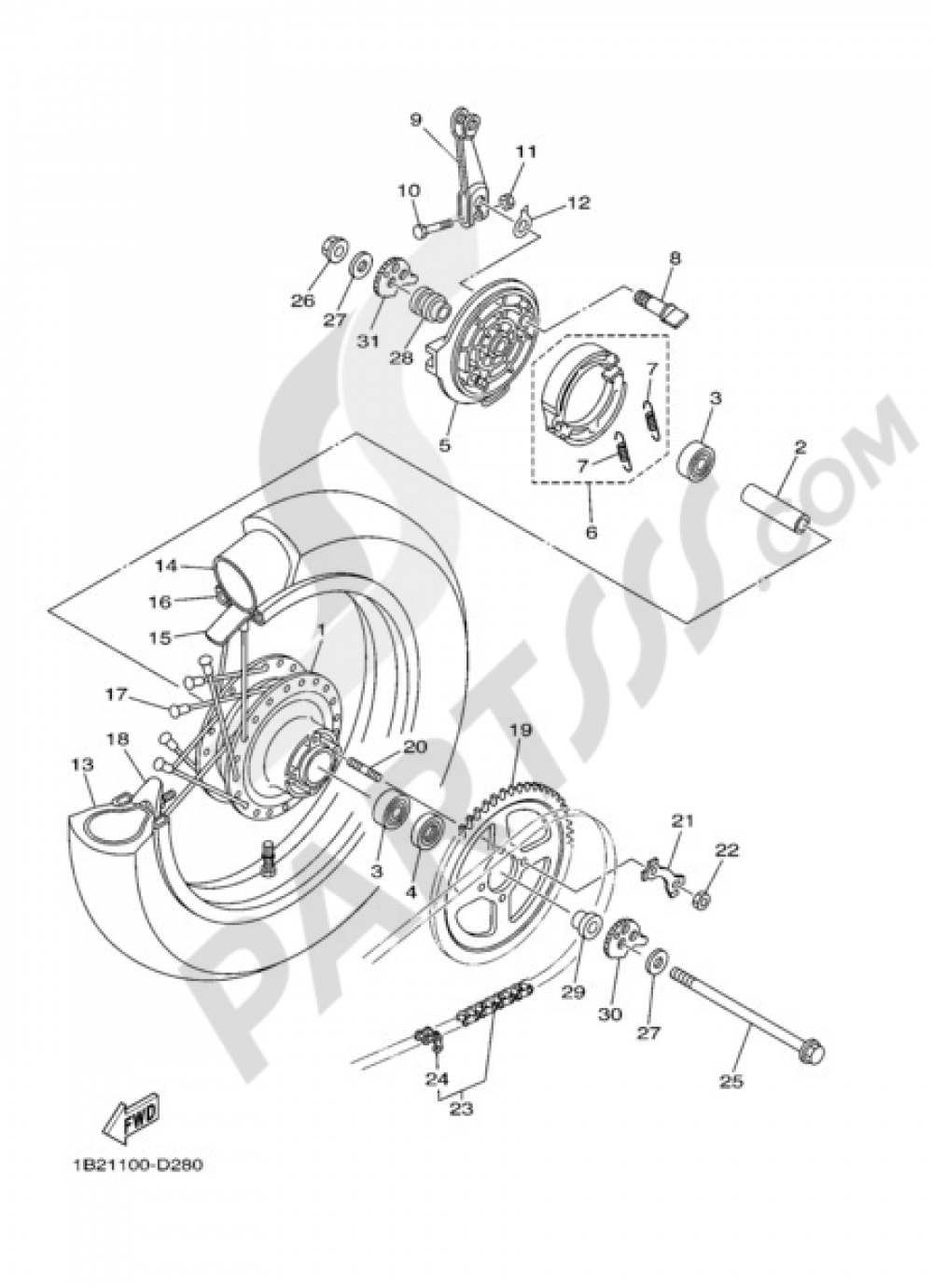

Add model to garageREAR WHEEL Yamaha TT R125LW 2011
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 2 |
SPACER (1U1)
905601217000
|
15,27 € | 1 | Add |
| 3 |
BEARING
93306301YY00
|
27,44 € | 1 | Add |
| 4 |
OIL SEAL
931062080900
|
9,57 € | 1 | Add |
| 5 |
PLATE, BRAKE SHOE
1B2F53210035
|
429,09 € | 1 | Add |
| 6 |
BRAKE SHOE KIT
4KNW253E1100
|
21,13 € | 1 | Add |
| 7 |
SPRING, TENSION
905061526000
|
8,59 € | 5 | Add |
| 8 |
CAMSHAFT
1B2F51510000
|
31,83 € | 1 | Add |
| 9 |
LEVER, CAMSHAFT
55K253550000
|
34,38 € | 1 | Add |
| 10 |
BOLT, HEXAGON
970170603000
|
1,54 € | 1 | Add |
| 11 |
NUT
9530N0660000
|
0,06 € | 10 | Add |
| 12 |
PLATE, INDICATOR
2JX2533A0000
|
4,65 € | 5 | Add |
| 13 |
TIRE
941091601900
|
95,74 € | 1 | Add |
| 14 |
TUBE
942091600300
|
32,82 € | 1 | Add |
| 15 |
BAND, RIM
943301605800
|
8,44 € | 1 | Add |
| 16 |
RIM (1.60-16)
944161600300
|
120,56 € | 1 | Add |
| 17 |
JUEGO DE RAYOS TRASEROS
1B2F53042000
|
103,00 € | 1 | Add |
| 18 |
SPACER, BEAD
1B2F53940000
|
50,86 € | 1 | Add |
| 19 |
CORONA
1B2F54543000
|
89,61 € | 1 | Add |
| 20 |
BOLT, STUD
901161001300
|
3,89 € | 1 | Add |
| 21 |
WASHER
5RMF54120000
|
4,08 € | 10 | Add |
| 22 |
NUT
901701020600
|
3,18 € | 1 | Add |
| 23 |
CADENA, DRIVE (8R4)
9Y5825112100
|
98,44 € | 1 | Add |
| 24 |
CADENA
946825100100
|
6,10 € | 1 | Add |
| 25 |
AXLE, WHEEL
5HN253810000
|
23,34 € | 1 | Add |
| 26 |
NUT, U FLANGE
956071220000
|
10,18 € | 1 | Add |
| 27 |
WASHER, PLATE (4N0)
90201126A700
|
2,64 € | 1 | Add |
