Yamaha 125cc TT R125LW 2014

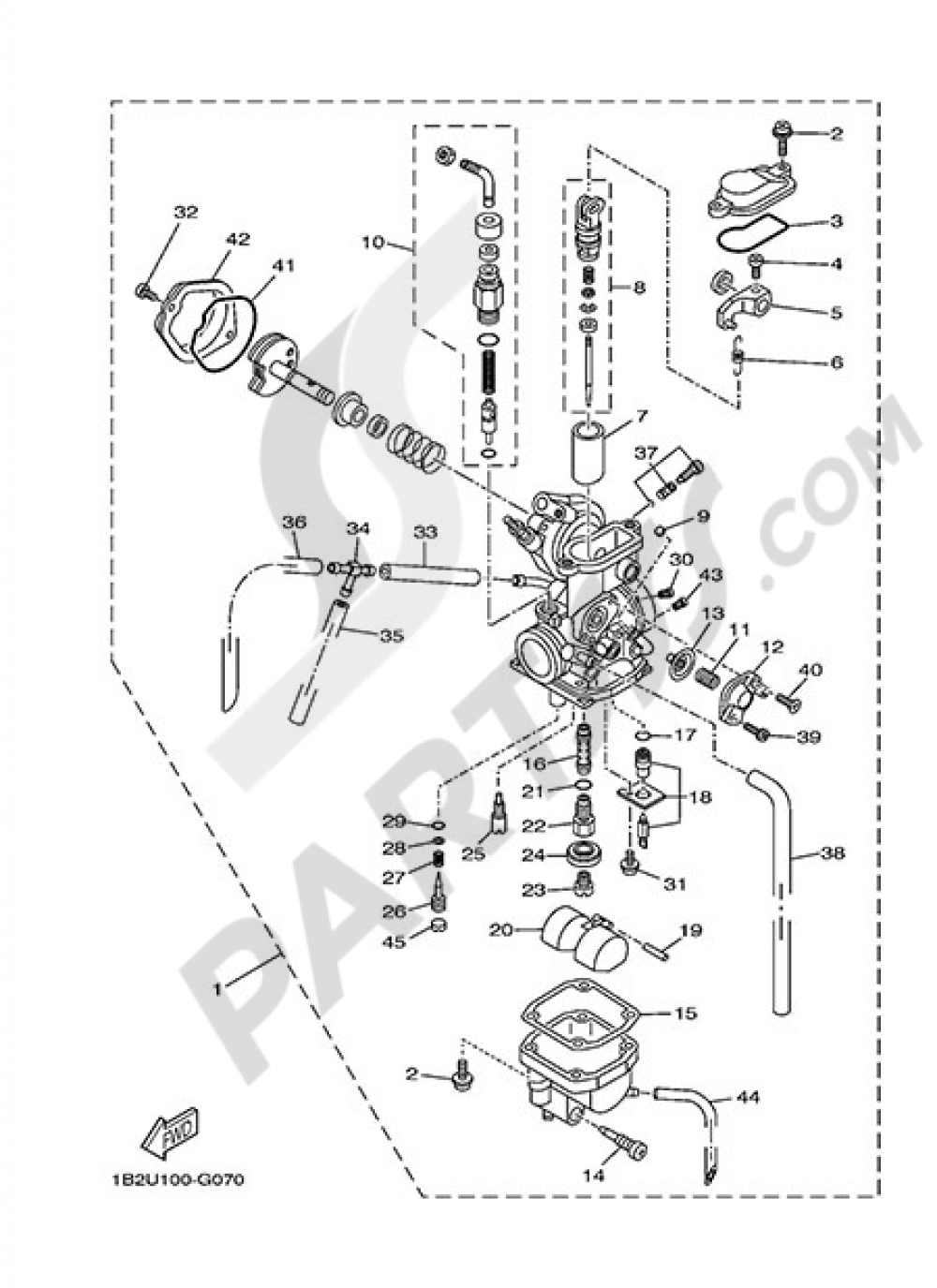

Add model to garageCARBURETOR Yamaha TT R125LW 2014
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
CARBURETOR ASSY 1
1B2141011000
|
475,26 € | 1 | Add |
| 2 |
SCREW,W/WASHER
976070411400
|
1,54 € | 1 | Add |
| 3 |
O-RING
1B2145610000
|
7,75 € | 1 | Add |
| 4 |
SCREW
1B2142160000
|
5,60 € | 1 | Add |
| 5 |
LEVER, STARTER
1B2149050000
|
28,41 € | 1 | Add |
| 6 |
SPRING
1B2145890000
|
6,65 € | 1 | Add |
| 7 |
VALVE, THROTTLE 1
1B2141122500
|
178,76 € | 1 | Add |
| 8 |
NEEDLE SET
1B21490J0000
|
51,14 € | 1 | Add |
| 9 |
NET, FILTER
5LW149940000
|
1,60 € | 1 | Add |
| 10 |
STARTER SET
1B21410A0000
|
55,56 € | 1 | Add |
| 11 |
SPRING, DIAPHRAGM
5AP149330000
|
15,37 € | 1 | Add |
| 12 |
COVER, CARBURETOR
5HP142800000
|
75,19 € | 1 | Add |
| 13 |
DIAPHRAGM ASSY
5AP149400000
|
23,73 € | 1 | Add |
| 14 |
PLUG, DRAIN
4LS141910000
|
10,09 € | 1 | Add |
| 15 |
GASKET, FLOAT CHAMBER
24W141840000
|
9,94 € | 1 | Add |
| 16 |
NOZZLE, MAIN
1B2141412900
|
55,29 € | 1 | Add |
| 17 |
O-RING
4LS141470000
|
7,42 € | 1 | Add |
| 18 |
NEEDLE VALVE SET
5RM141071800
|
51,88 € | 1 | Add |
| 19 |
PIN, FLOAT
127141860000
|
6,65 € | 1 | Add |
| 20 |
FLOAT
5HH141850000
|
50,16 € | 1 | Add |
| 21 |
O-RING
583145610000
|
3,42 € | 1 | Add |
| 22 |
SETTER, NEEDLE JET
1B2141450000
|
49,40 € | 1 | Add |
| 23 |
JET, MAIN (N?100)
620142312000
|
19,71 € | 1 | Add |
| 24 |
WASHER, MAIN JET
5V7141530000
|
14,55 € | 1 | Add |
| 25 |
JET, PILOT (N? 15)
5HP141421500
|
18,36 € | 1 | Add |
| 26 |
SCREW, PILOT
5HP149230000
|
24,64 € | 1 | Add |
| 27 |
SPRING
5K7141340000
|
8,59 € | 1 | Add |
