Yamaha 125cc TT R125LWE 2014

Add model to garage

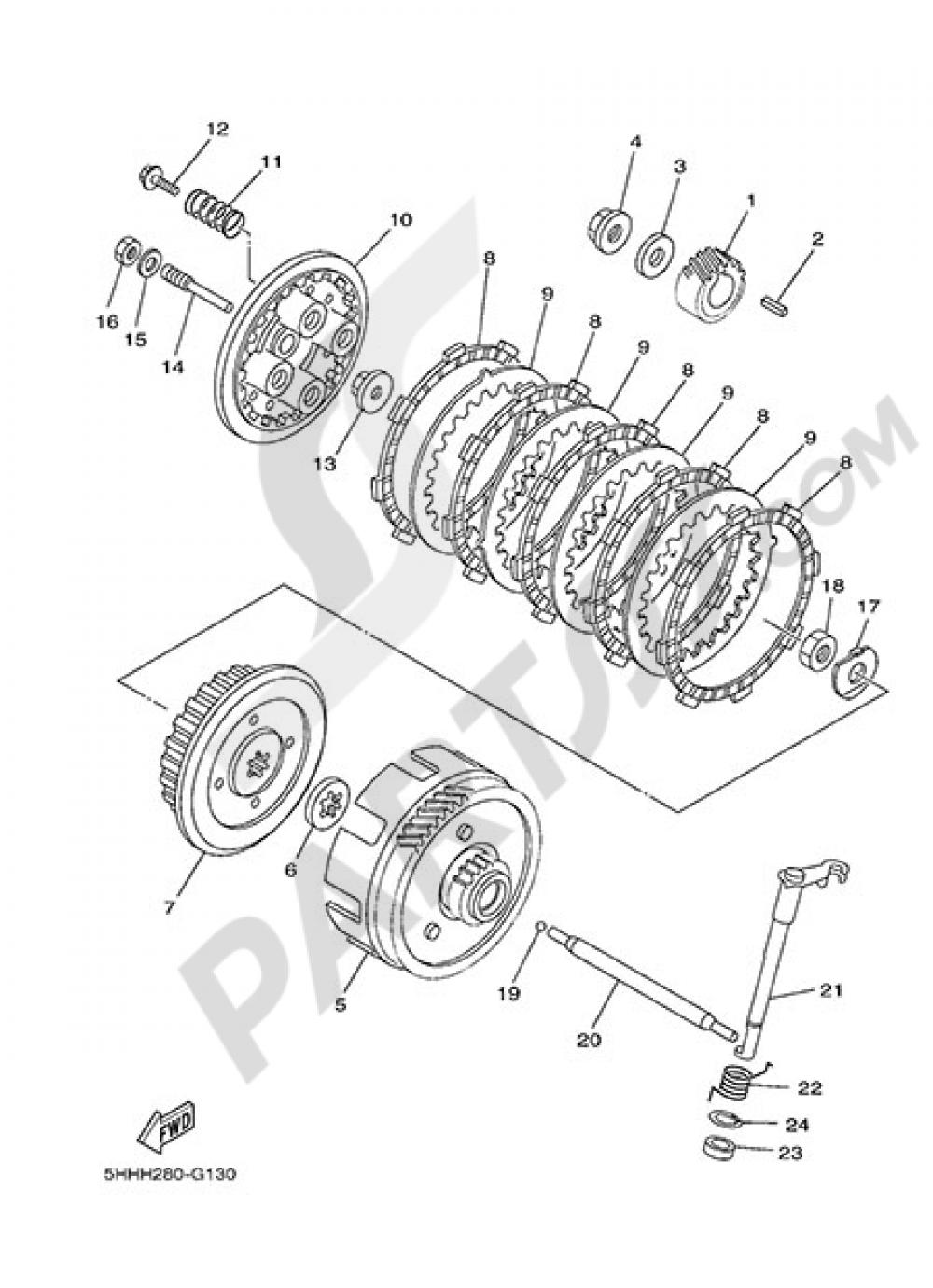

CLUTCH Yamaha TT R125LWE 2014

Pos. Ref./Description Price Qty.
1 GEAR, PRIMARY DRIVE
401161111000
80,03 € 1 Add
2 KEY, STRAIGHT
902820500100
4,73 € 1 Add
3 WASHER, PLATE (35T)
90201122H100
3,27 € 1 Add
4 NUT(1EE)
901791265900 901791281300
6,32 € 1 Add
5 PRIMARY DRIVEN GEAR COMP.
1B2161500000
273,35 € 1 Add
6 PLATE, THRUST 1
4V0161540000
21,45 € 1 Add
7 BOSS, CLUTCH
5AP163710000
86,22 € 1 Add
8 PLATE, FRICTION
598163210100
11,97 € 1 Add
9 PLATE, CLUTCH
1V1163240000
9,57 € 1 Add
10 PLATE, PRESSURE 1
5AP163510000
36,26 € 1 Add
11 SPRING, COMPRESSION(58T)
90501204A000
4,15 € 1 Add
12 BOLT, W/WASHER (3V2)
901190502000
1,09 € 5 Add
13 PLATE, PUSH
1W1163580100
10,20 € 1 Add
14 ROD, PUSH 1
5AP163560000
9,44 € 1 Add
15 WASHER(6TA)
929070620000
0,53 € 1 Add
16 NUT(6TA)
953170660000 953070660000
0,53 € 1 Add
17 WASHER, LOCK (21T)
902151221100
1,83 € 1 Add
18 NUT(37F)
901701233700 901701206000
3,41 € 5 Add
19 BALL
935031600300 935031680200
0,35 € 5 Add
20 ROD, PUSH 2
5HHE63570000
19,48 € 1 Add
21 PUSH LEVER COMP.
1B2E63810100
73,80 € 1 Add
22 SPRING, TORSION
9050816W1300
0,96 € 5 Add
23 OIL SEAL (4G0)
931021222400
12,26 € 1 Add
24 CIRCLIP(1EV)
990092050000
0,53 € 5 Add
