Yamaha 125cc XT125R 2005

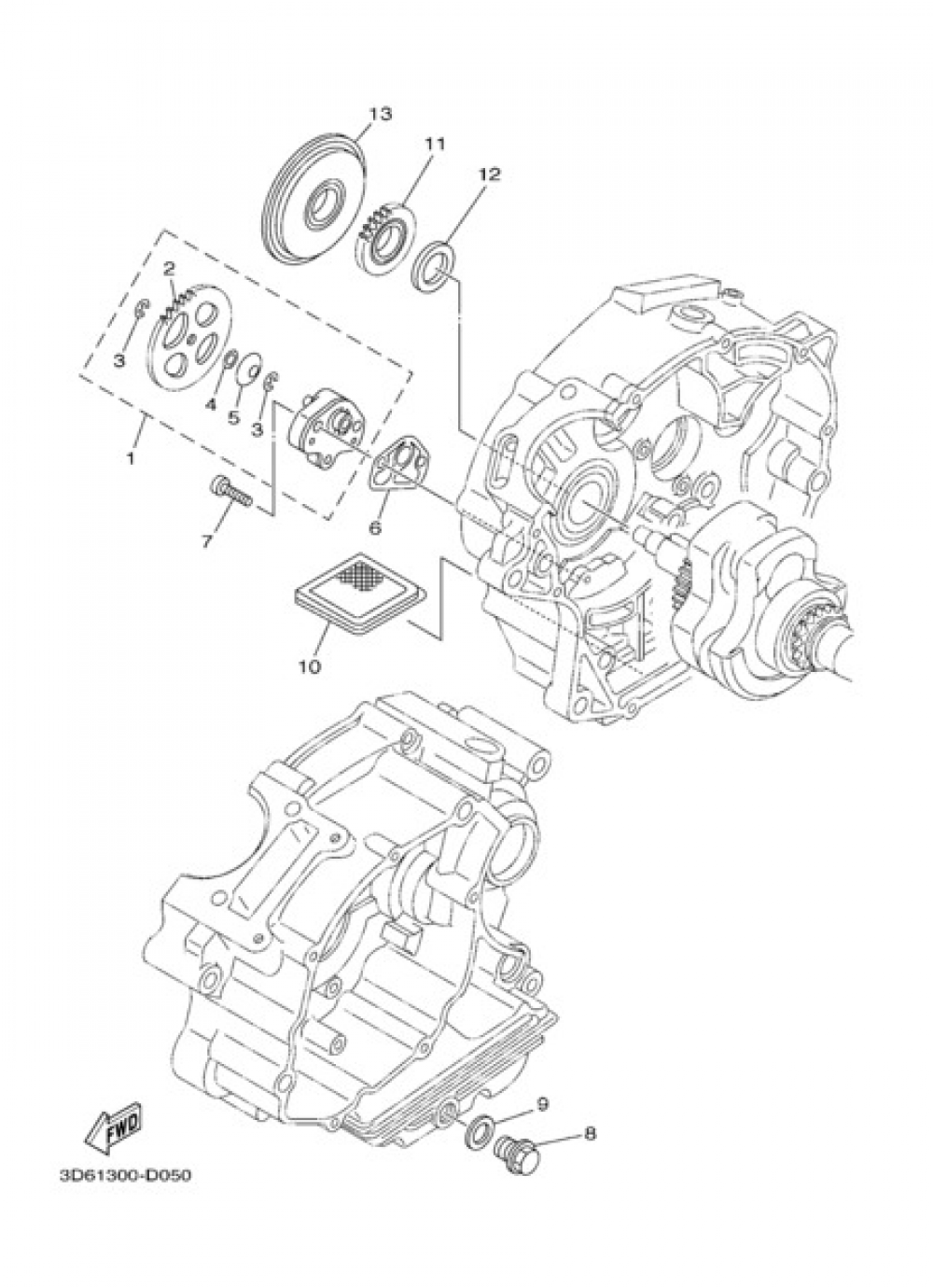

Add model to garageOIL PUMP Yamaha XT125R 2005
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
OIL PUMP ASSY
5AP133000000
|
Obsolete | 1 | Not available |
| 2 |
GEAR, PUMP DRIVEN
4GL133250000
|
Obsolete | 1 | Not available |
| 3 |
CIRCLIP(22K)
990800560000
|
2,48 € | 1 | Add |
| 4 |
WASHER, PLATE(8E7)
902010764100
|
3,77 € | 5 | Add |
| 5 |
WASHER, CONICAL SPRING(4GL)
902080705200
|
2,57 € | 1 | Add |
| 6 |
GASKET, PUMP COVER
5HHE33290000
|
0,85 € | 5 | Add |
| 7 |
SCREW, FLAT FILLIS
901550680200
|
Obsolete | 10 | Not available |
| 8 |
PLUG, STRAIGHT SCREW (22F)
903401209700
|
1,60 € | 5 | Add |
| 9 |
GASKET (3JD1)
904301220700
|
1,52 € | 5 | Add |
| 10 |
STRAINER, OIL
22F134110100
|
36,54 € | 1 | Add |
| 11 |
GEAR, PUMP DRIVE
5HHE33240000
|
Obsolete | 1 | Not available |
| 12 |
WASHER, PLATE
9020120W7200
|
Obsolete | 10 | Not available |
| 13 |
FILTER,ROTARY
5HHE34510000
|
Obsolete | 1 | Not available |
