Yamaha 50cc MARCHAS TZR50 2011

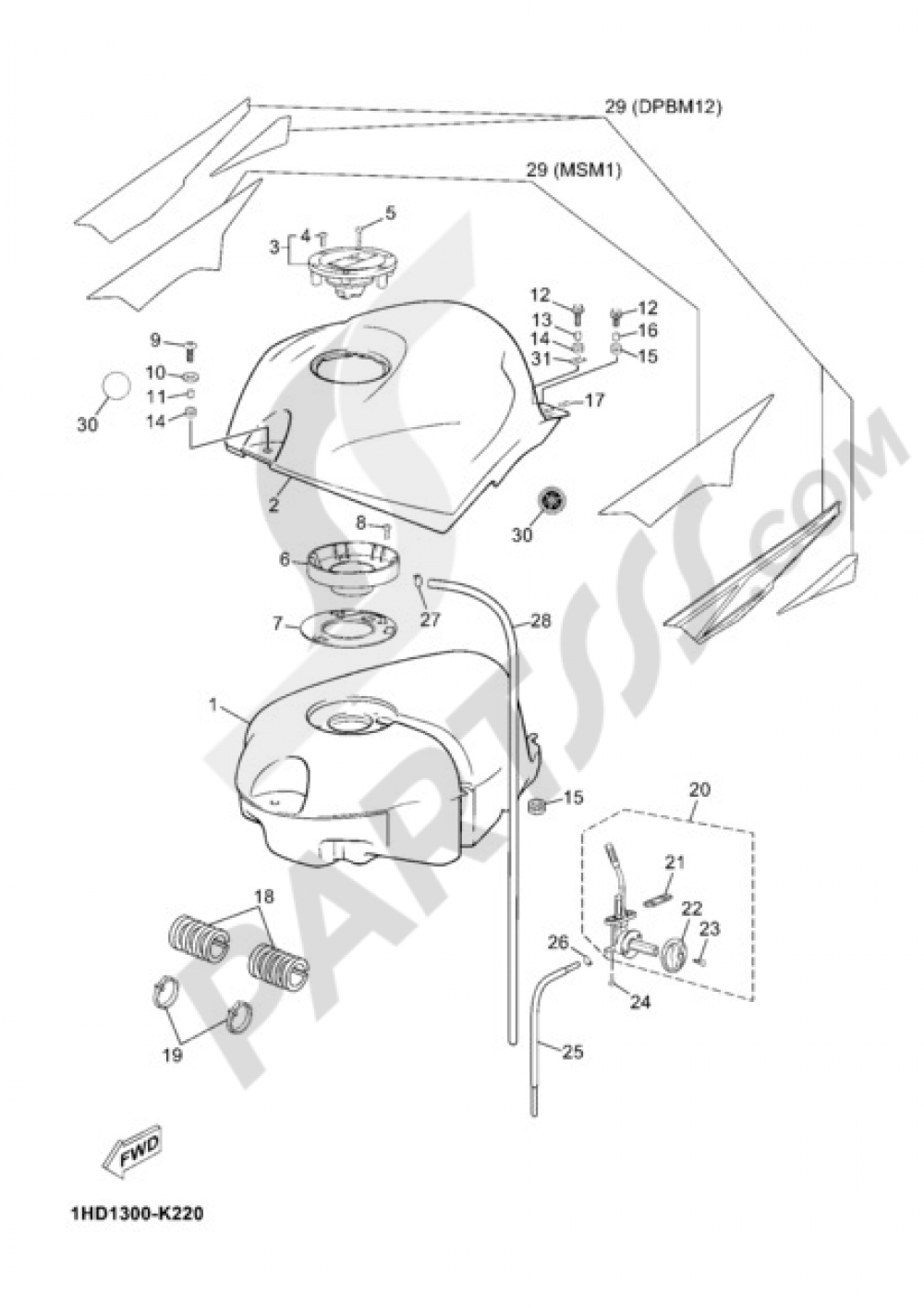

Add model to garageFUEL TANK Yamaha TZR50 2011
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
FUEL TANK COMP
5WXF41100100
|
211,59 € | 1 | Add |
| 2 |
OUTER PANEL COMP
5WXF411X00PC
|
591,63 € | 1 | Add |
| 2 |
OUTER PANEL COMP
5WXF411X00P5
|
574,41 € | 1 | Add |
| 3 |
CAP ASSY
5WXF46021000
|
Obsolete | 1 | Not available |
| 4 |
BOLT,SOCKET
913800501000
|
0,62 € | 1 | Add |
| 5 |
BOLT
9131M0501400
|
Obsolete | 5 | Not available |
| 6 |
COVER, FILLER
5WXF414A0000
|
28,65 € | 1 | Add |
| 7 |
SEAL
5WXF414G0000
|
9,63 € | 1 | Add |
| 8 |
BOLT,SOCKET
913800503000
|
1,82 € | 1 | Add |
| 9 |
SCREW(1FN)
901490621800
|
Obsolete | 1 | Not available |
| 10 |
WASHER
9020210X0100
|
2,29 € | 1 | Add |
| 11 |
COLLAR (1T2)
903870759800
|
4,16 € | 1 | Add |
| 12 |
BOLT, WITH WASHER
9011906X0400
|
2,07 € | 10 | Add |
| 13 |
COLLAR
9038706X2400
|
1,72 € | 5 | Add |
| 14 |
GROMMET
9048014X0100
|
1,65 € | 5 | Add |
| 15 |
GROMMET
904801301400
|
2,43 € | 1 | Add |
| 16 |
COLLAR(51L)
90387067K600
|
3,18 € | 5 | Add |
| 17 |
NUT, SPRING
901830681600
|
1,82 € | 10 | Add |
| 18 |
DAMPER, LOCATING 1
5RWF41810000
|
4,65 € | 1 | Add |
| 19 |
CLAMP(6J8)
9046450X0500
|
0,22 € | 10 | Add |
| 20 |
FUEL COCK ASSY 1
5WXF45000000
|
99,19 € | 1 | Add |
| 21 |
EMPAQUE
5WXF45120000
|
0,46 € | 10 | Add |
| 22 |
KNOB
5WXF45980000
|
2,01 € | 5 | Add |
| 23 |
BOLT
9131M0502000
|
0,22 € | 10 | Add |
| 24 |
SCREW, BINDING HEAD
9890L0601200
|
0,22 € | 10 | Add |
| 25 |
PIPE 3
5WXF43130000
|
27,18 € | 1 | Add |
| 26 |
CLIP
9046711X0200
|
0,62 € | 1 | Add |
