Yamaha 50cc SCOOTERS AEROX R 2002

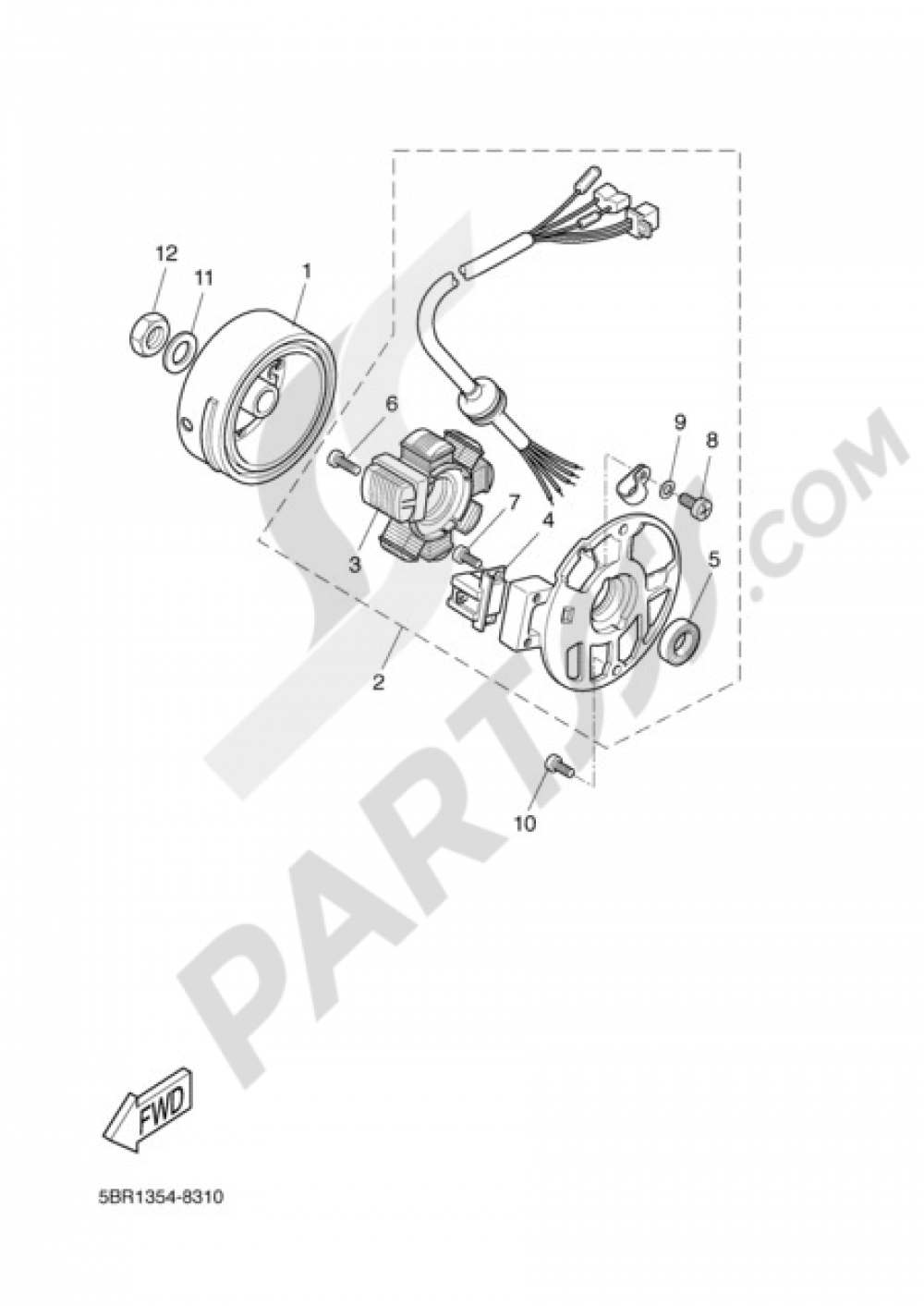

Add model to garageGENERATOR Yamaha AEROX R 2002
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
ROTOR ASSY
2JAH55500100
|
Obsolete | 1 | Not available |
| 2 |
BASE ASSY
3KJ855600000
|
Obsolete | 1 | Not available |
| 3 |
STATOR COMP.
3VP814030000
|
Obsolete | 1 | Not available |
| 4 |
COIL, PULSER
2JA85580M000
|
Obsolete | 1 | Not available |
| 5 |
OIL SEAL(1YU)
931041909700
|
8,46 € | 1 | Add |
| 6 |
SCREW, PAN HEAD
985170502000
|
0,62 € | 1 | Add |
| 7 |
SCREW, PAN HEAD(3LA)
985170501000
|
0,62 € | 1 | Add |
| 8 |
SCREW, PAN HEAD(3XP)
985170400600
|
2,57 € | 1 | Add |
| 9 |
YBS67-4 WASHER, SPRING
929900410000
|
0,62 € | 5 | Add |
| 10 |
SCREW, PAN HEAD(3TJ)
985070601600
|
0,62 € | 1 | Add |
| 11 |
WASHER, PLATE
929901060000
|
1,94 € | 5 | Add |
| 12 |
NUT
901701001100
|
1,55 € | 1 | Add |
