Yamaha 50cc SCOOTERS AEROX R 2006

Add model to garage

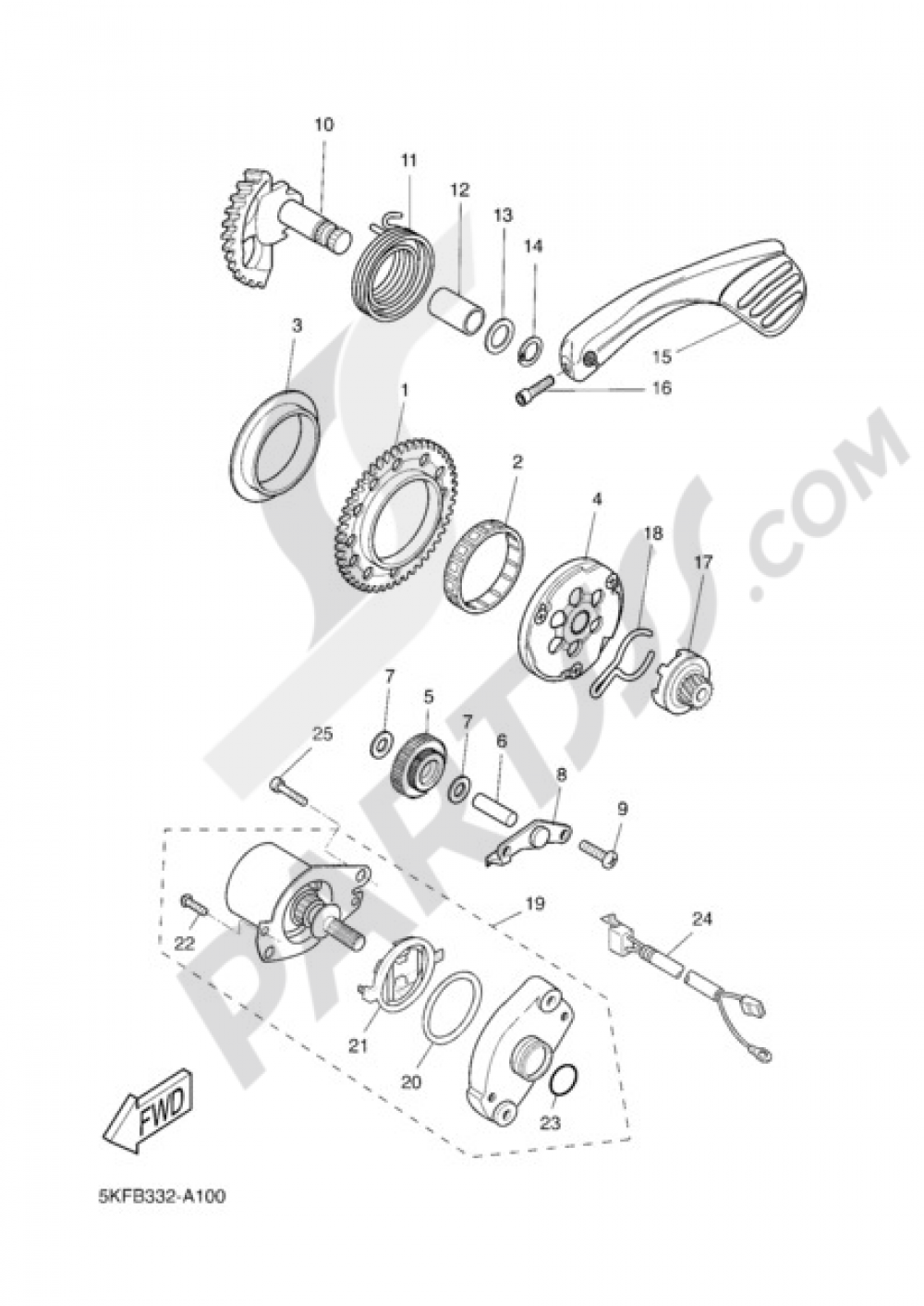

STARTER Yamaha AEROX R 2006

Pos. Ref./Description Price Qty.
1 GEAR 1
3AA155130000
33,12 € 1 Add
2 BEARING
933102571200 93310257R100
26,10 € 1 Add
3 BOSS, GEAR
3KJ155280000
9,74 € 1 Add
4 STARTER CLUTCH ASSY
3VL155700000
47,14 € 1 Add
5 ENGRENAJE NEUTRO COMPLETO
2ADE56500000 4SBE56500000
32,63 € 1 Add
6 SHAFT
3VLE56591000 3VLE56590000
1,92 € 1 Add
7 WASHER, PLATE 2562171800
902010808800 9020108X0000
1,98 € 1 Add
8 PLATE, IDLE GEAR
4CUE55320000
5,03 € 1 Add
9 BOLT, HEXAGON SOCKET HEAD(M01)
9011006X8200 9011006X2100
1,36 € 10 Add
10 KICK SHAFT ASSY
5ADE56010000
70,83 € 1 Add
11 SPRING, TORSION (32N)
905083260900
13,93 € 1 Add
12 BUSH, SOLID
903801581700 9038015X0000
2,32 € 5 Add
13 WASHER, PLATE (5G3)
90201154E900 90201155G500
2,24 € 1 Add
14 CIRCLIP(1AR)
990091540000
2,03 € 5 Add
15 KICK CRANK ASSY
5FXE56202000
15,31 € 1 Add
16 BOLT, HEXAGON. SOCK
9011006X1600
4,96 € 1 Add
17 MAINTENANCE PART
2ADE56310000 4SBE56310000
34,69 € 1 Add
18 CLIP
3VLE56730000
7,01 € 1 Add
19 STARTING MOTOR ASSY
5BMH18000100 5BMH18000000
179,56 € 1 Add
21 BRUSH SET
5BM818010100
42,40 € 1 Add
22 SCREW, PAN HEAD(JG1)
985070400800
0,53 € 1 Add
23 O-RING (35R)
932102361400
0,92 € 1 Add
24 WIRE, LEAD
4CUH25410000
13,44 € 1 Add
25 BOLT
1TKE54810000 9011006X0300
0,22 € 10 Add
