Yamaha 50cc SCOOTERS AEROX REPLICA 2009

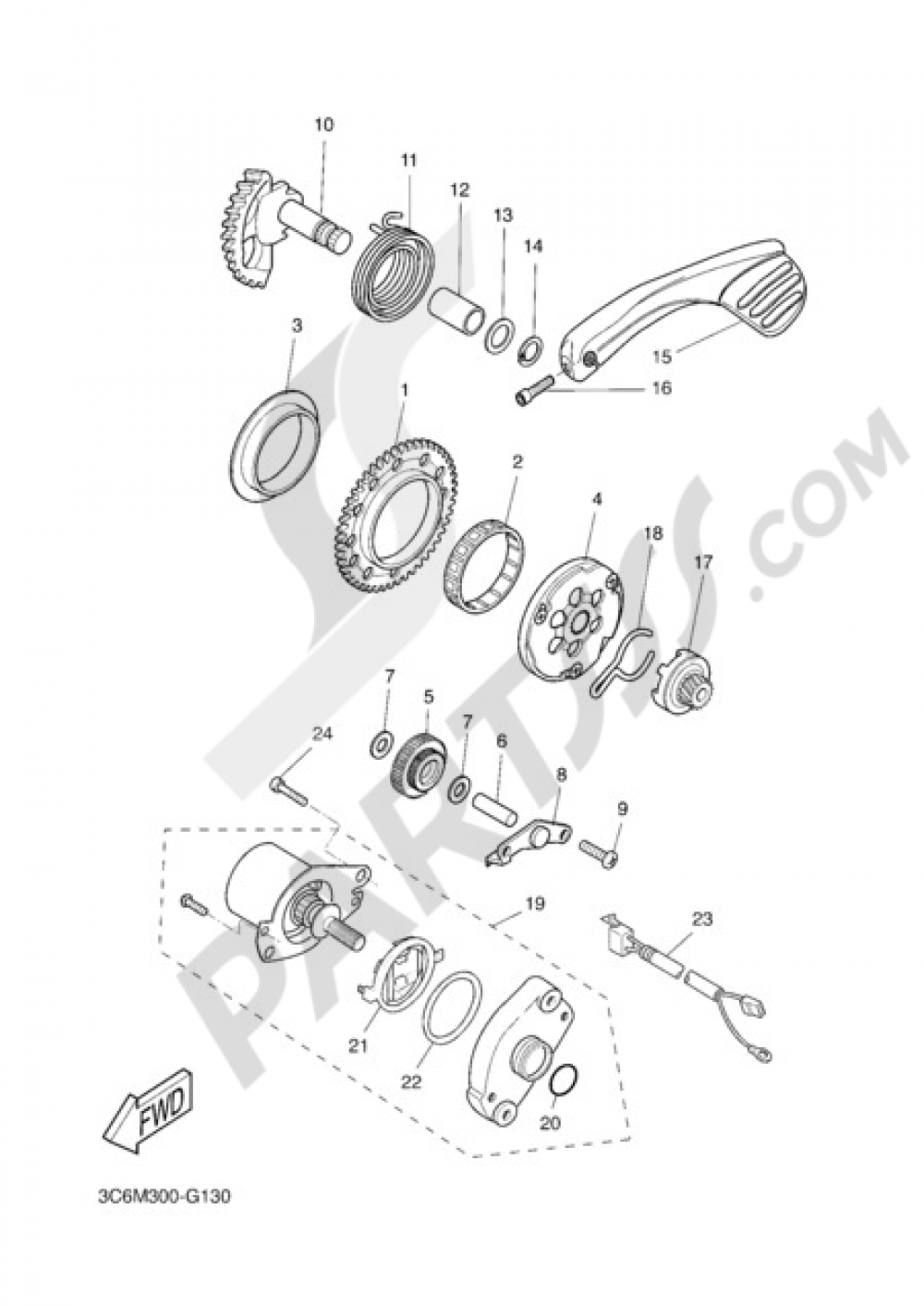

Add model to garageSTARTER Yamaha AEROX REPLICA 2009
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
GEAR 1
3AA155130000
|
42,74 € | 1 | Add |
| 2 |
BEARING
93310257YB00
|
45,46 € | 1 | Add |
| 3 |
BOSS, GEAR
3KJ155280000
|
13,14 € | 1 | Add |
| 4 |
STARTER CLUTCH ASSY
3VL155700000
|
60,81 € | 1 | Add |
| 5 |
ENGRENAJE NEUTRO COMPLETO
2ADE56500000
|
Obsolete | 1 | Not available |
| 6 |
SHAFT
3VLE56591000
|
Obsolete | 1 | Not available |
| 7 |
WASHER, PLATE 2562171800
902010808800
|
2,97 € | 1 | Add |
| 8 |
PLATE, IDLE GEAR
4CUE55320000
|
Obsolete | 1 | Not available |
| 9 |
BOLT, HEXAGON SOCKET HEAD(M01)
9011006X8200
|
1,72 € | 10 | Add |
| 10 |
KICK SHAFT ASSY
5ADE56010000
|
91,32 € | 1 | Add |
| 11 |
SPRING, TORSION (32N)
905083260900
|
20,27 € | 1 | Add |
| 12 |
BUSH, SOLID
903801581700
|
3,53 € | 5 | Add |
| 13 |
WASHER, PLATE (5G3)
90201154E900
|
3,47 € | 1 | Add |
| 14 |
CIRCLIP(1AR)
990091540000
|
3,18 € | 5 | Add |
| 15 |
KICK CRANK ASSY
5FXE56201100
|
Obsolete | 1 | Not available |
| 16 |
BOLT, HEXAGON. SOCK
9011006X1600
|
6,71 € | 1 | Add |
| 17 |
SPARE PART
2ADE56310000
|
44,85 € | 1 | Add |
| 18 |
CLIP
3VLE56730000
|
9,67 € | 1 | Add |
| 19 |
STARTING MOTOR ASS
4CUH18001000
|
Obsolete | 1 | Not available |
| 20 |
O-RING (35R)
932102361400
|
1,07 € | 1 | Add |
| 21 |
BRUSH SET
1YU81801M000
|
49,40 € | 1 | Add |
| 22 |
GASKET, YOKE
53L8181YM000
|
4,00 € | 1 | Add |
| 23 |
WIRE, LEAD
4CUH25410000
|
Obsolete | 1 | Not available |
| 24 |
BOLT
1TKE54810000
|
Obsolete | 10 | Not available |
