Yamaha 50cc SCOOTERS Jog RR 2005

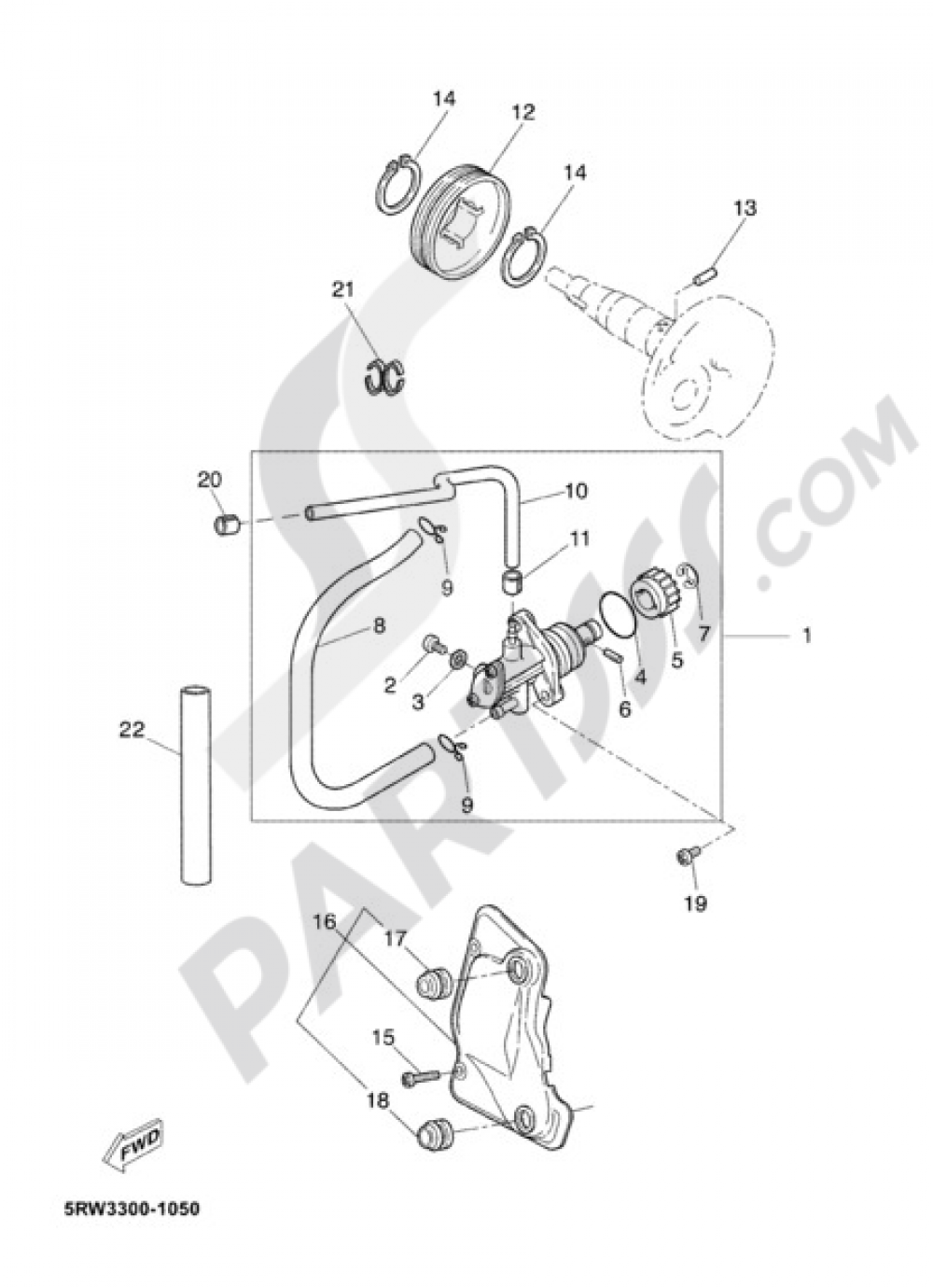

Add model to garageOIL PUMP Yamaha Jog RR 2005
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
OIL PUMP ASSY
5RWE31000000
|
147,56 € | 1 | Add |
| 2 |
BOLT, BREATHER
3WF131850000
|
1,28 € | 5 | Add |
| 3 |
GASKET, BREATHER BOLT
1YU131870000
|
1,04 € | 5 | Add |
| 4 |
O-RING
1YU134730000
|
7,52 € | 1 | Add |
| 5 |
GEAR, WORM WHEEL
3AA131240000
|
10,00 € | 1 | Add |
| 6 |
PIN, DOWEL
1YU135160000
|
3,32 € | 1 | Add |
| 7 |
CLIP
1YU135770000
|
1,44 € | 5 | Add |
| 8 |
HOSE
906995010000
|
40,63 € | 1 | Add |
| 9 |
CLIP 101235600
904670800300
|
2,27 € | 2 | Add |
| 10 |
HOSE (L520)
90445055E500
|
6,30 € | 1 | Add |
| 11 |
CLIP (214-13164-00)
904680203300
|
3,32 € | 5 | Add |
| 12 |
GEAR, PUMP DRIVE
3VLE31780000
|
11,68 € | 1 | Add |
| 13 |
PIN,DOWEL (603)
936031200700
|
2,15 € | 5 | Add |
| 14 |
CIRCLIP(1EY)
990091940000
|
4,16 € | 1 | Add |
| 15 |
SCREW, PAN HEAD
985070501400
|
0,60 € | 10 | Add |
| 16 |
COVER, PUMP CASE
5DNE31410000
|
Obsolete | 1 | Not available |
| 17 |
GROMMET
904801387500
|
1,61 € | 10 | Add |
| 18 |
GROMMET
904801387600
|
1,70 € | 10 | Add |
| 19 |
SCREW, BINDING (11H)
9015405X0300
|
0,84 € | 1 | Add |
| 20 |
CLIP
9046802X0100
|
1,94 € | 10 | Add |
| 21 |
GUIDE, OIL HOSE
5BRE34870000
|
12,15 € | 1 | Add |
| 22 |
PROTECTOR, HOSE
5RWF18240000
|
1,94 € | 1 | Add |
