Yamaha 50cc SCOOTERS Neo's 2009

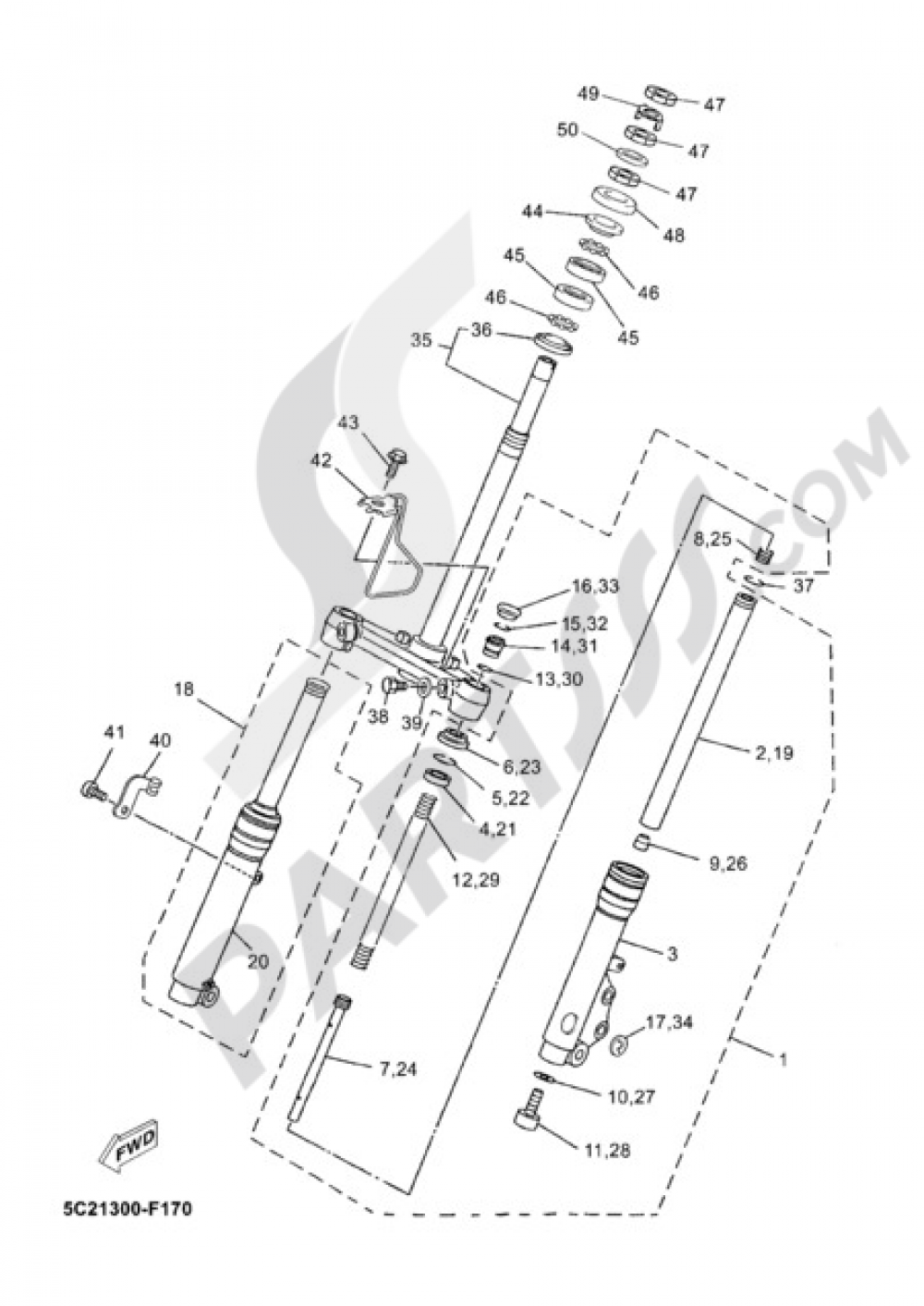

Add model to garageFRONT FORK Yamaha Neo's 2009
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
FRONT FORK ASSY (L.H)
5C2F31020000
|
160,38 € | 1 | Add |
| 2 |
INNER TUBE COMP.1
5KKF31100000
|
107,85 € | 1 | Add |
| 3 |
TUBE, OUTER (LEFT)
5C2F31260000
|
Obsolete | 1 | Not available |
| 4 |
OIL SEAL
5KKF31450000
|
22,83 € | 1 | Add |
| 5 |
JONC ARRET
5KKF31560000
|
Obsolete | 5 | Not available |
| 6 |
JOINT ANTI-POUSSIERE
5KKF31440000
|
Obsolete | 1 | Not available |
| 7 |
CYLINDER COMP., FRONT FORK
5KKF31702000
|
29,95 € | 1 | Add |
| 8 |
SPRING, REBOUND
5KKF31510000
|
1,89 € | 5 | Add |
| 9 |
SPINDLE, TAPER
5KKF31730000
|
8,30 € | 1 | Add |
| 10 |
WASHER, FELT
5KKF31651000
|
Obsolete | 2 | Not available |
| 11 |
BOLT 2
5KKF33560000
|
1,46 € | 5 | Add |
| 12 |
SPRING, FRONT FORK
5KKF31411000
|
13,40 € | 1 | Add |
| 13 |
O-RING
5KKF31470000
|
Obsolete | 10 | Not available |
| 14 |
BOLT, CAP
5KKF31110000
|
6,37 € | 1 | Add |
| 15 |
CIRCLIP
5KKF31830000
|
0,41 € | 10 | Add |
| 16 |
CAP
5C2F31542000
|
11,10 € | 1 | Add |
| 17 |
EMBLEM
5KKF31080000
|
Obsolete | 5 | Not available |
| 18 |
FRONT FORK ASSY (R.H)
5C2F31030000
|
160,38 € | 1 | Add |
| 19 |
INNER TUBE COMP.1
5KKF31100000
|
107,85 € | 1 | Add |
| 20 |
TUBE, OUTER (RIGHT)
5C2F31360000
|
Obsolete | 1 | Not available |
| 21 |
OIL SEAL
5KKF31450000
|
22,83 € | 1 | Add |
| 22 |
JONC ARRET
5KKF31560000
|
Obsolete | 5 | Not available |
| 23 |
JOINT ANTI-POUSSIERE
5KKF31440000
|
Obsolete | 1 | Not available |
| 24 |
CYLINDER COMP., FRONT FORK
5KKF31702000
|
29,95 € | 1 | Add |
| 25 |
SPRING, REBOUND
5KKF31510000
|
1,89 € | 5 | Add |
| 26 |
SPINDLE, TAPER
5KKF31730000
|
8,30 € | 1 | Add |
| 27 |
WASHER, FELT
5KKF31651000
|
Obsolete | 2 | Not available |
