Yamaha AVENTURA XT1200Z SuperTenere 2013

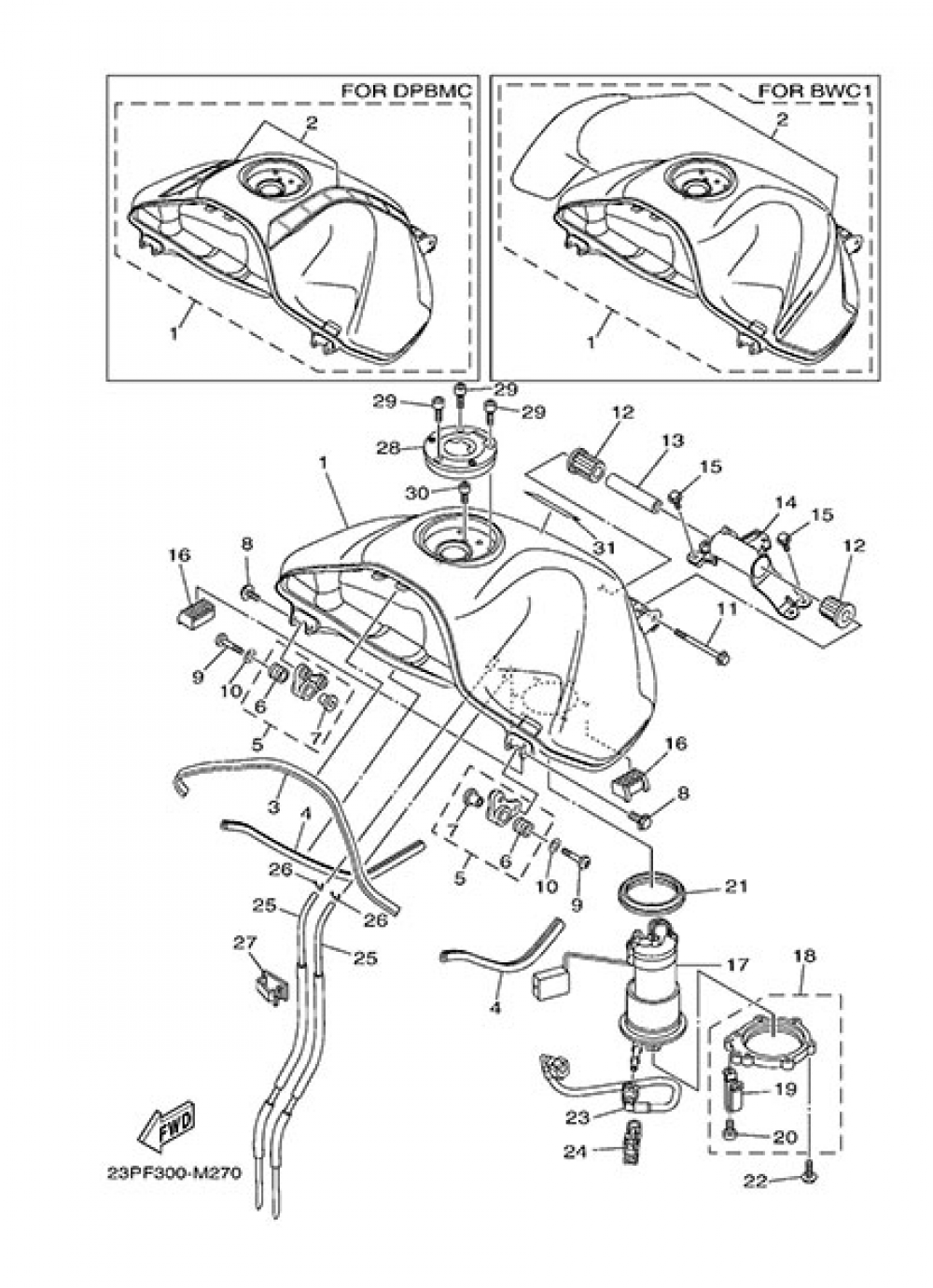

Add model to garageFUEL Yamaha XT1200Z SuperTenere 2013
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
GASOLINA DEP SITO COMP.
23P2411001P4
|
1.708,12 € | 1 | Add |
| 1 |
GASOLINA DEP SITO COMP.
23PW24100101
|
1.708,12 € | 1 | Add |
| 1 |
FUEL TANK COMP.
23PY24100002
|
1.708,12 € | 1 | Add |
| 2 |
GRAPHIC SET
23P242401000
|
Obsolete | 1 | Not available |
| 2 |
GRAPHIC SET
23P242400000
|
100,51 € | 1 | Add |
| 3 |
MOLD, FUEL TANK
23P241880000
|
31,34 € | 1 | Add |
| 4 |
MOLD, FUEL TANK
23P241881000
|
31,34 € | 1 | Add |
| 5 |
TANK BRACKET ASSY
23P241040000
|
62,76 € | 1 | Add |
| 6 |
GROMMET
904801800800
|
3,47 € | 1 | Add |
| 7 |
COLLAR
903870626600
|
8,02 € | 1 | Add |
| 8 |
BOLT, WITH WASHER
901190620000
|
1,46 € | 1 | Add |
| 9 |
SCREW
901490632800
|
7,61 € | 1 | Add |
| 10 |
WASHER PLATE 137241870000
902010607200
|
2,97 € | 1 | Add |
| 11 |
BOLT, FLANGE(2UJ)
958140811000
|
4,08 € | 1 | Add |
| 12 |
DAMPER, LOCATING 3
23P241830000
|
5,48 € | 1 | Add |
| 13 |
COLLAR
903871205000
|
11,14 € | 1 | Add |
| 14 |
BRACKET, TANK FITTING
23P2413Y0000
|
66,83 € | 1 | Add |
| 15 |
BOLT, FLANGE
958170602000
|
1,30 € | 1 | Add |
| 16 |
DAMPER, LOCATING 1
23P241810000
|
9,43 € | 1 | Add |
| 17 |
BOMBA DE COMBUSTIBLE COMPLETA
23P139070300
|
1.579,65 € | 1 | Add |
| 18 |
TANK BRACKET ASSY 2
23P241050000
|
68,72 € | 1 | Add |
| 19 |
BRACKET, FUEL TANK 2
2D1241920000
|
17,56 € | 1 | Add |
| 20 |
SCREW, BIND
989020500800
|
1,60 € | 1 | Add |
| 21 |
O-RING
19B244860100
|
20,62 € | 1 | Add |
| 22 |
BOLT, HEXAGON SOCKET HEAD
901100502800
|
0,86 € | 1 | Add |
| 23 |
ANILLO DE ESPACIADOR
23P139710100
|
89,66 € | 1 | Add |
| 24 |
CLAMP
904641600500
|
21,80 € | 1 | Add |
