Yamaha AVENTURA XT660R 2004

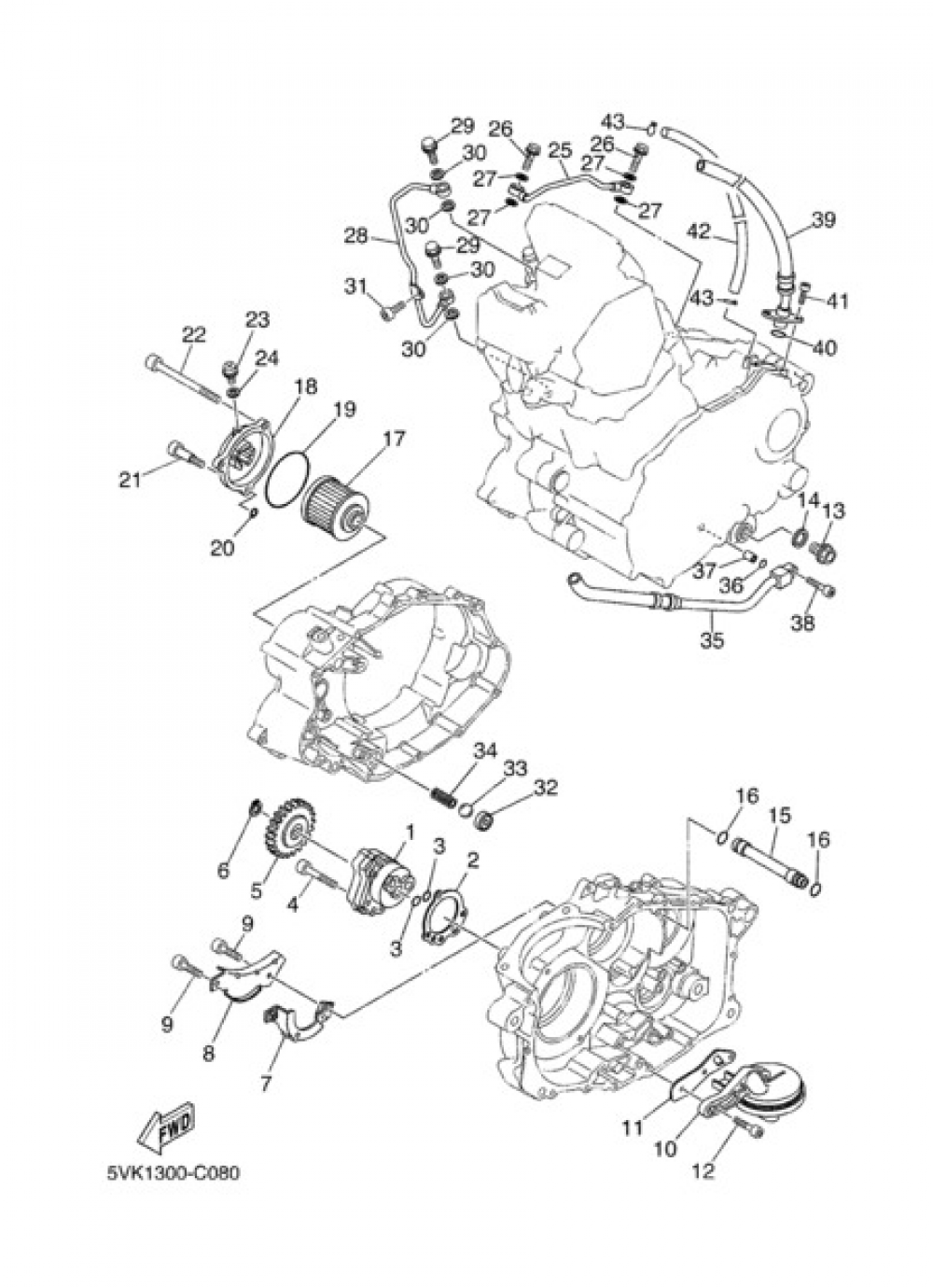

Add model to garageOIL PUMP Yamaha XT660R 2004
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
OIL PUMP ASSY
5LP133000000
|
199,70 € | 1 | Add |
| 2 |
GASKET, PUMP COVER
5LP133290000
|
1,46 € | 1 | Add |
| 3 |
O-RING
9321013X0000
|
0,67 € | 5 | Add |
| 4 |
BOLT, BUTTON
920170603500
|
2,35 € | 1 | Add |
| 5 |
GEAR, PUMP DRIVEN
3AJ133250000
|
30,56 € | 1 | Add |
| 6 |
CIRCLIP(24H)
990091140000
|
2,48 € | 1 | Add |
| 7 |
COVER, PUMP 2
5VK133560000
|
Obsolete | 1 | Not available |
| 8 |
COVER, PUMP GEAR
5VK133270000
|
Obsolete | 1 | Not available |
| 9 |
BOLT, SOCKET
913170500800
|
1,77 € | 1 | Add |
| 10 |
STRAINER COMP.
5VKWE3430000
|
Obsolete | 1 | Not available |
| 11 |
SEAL, OIL STRAINER
5VKE34151000
|
1,31 € | 5 | Add |
| 12 |
BOLT,SOCKET
913170602000
|
0,41 € | 1 | Add |
| 13 |
PLUG, STRAIGHT SCREW(3FA)
903401413200
|
4,23 € | 1 | Add |
| 14 |
GASKET
214111980100
|
3,32 € | 1 | Add |
| 15 |
PIPE, DELIVERY 3
5VK131810000
|
Obsolete | 1 | Not available |
| 16 |
O-RING (P95)
932101107300
|
4,97 € | 1 | Add |
| 17 |
ELEMENT ASSY, OIL CLEANER
4X7134409000
|
14,13 € | 1 | Add |
| 18 |
COVER, OIL ELEMENT
2WK134470000
|
43,65 € | 1 | Add |
| 19 |
O-RING (583 OIL CLEANER)
932106429700
|
5,48 € | 1 | Add |
| 20 |
O-RING
9321007X0100
|
1,46 € | 5 | Add |
| 21 |
BOLT (583 OIL DRAIN)
901090641900
|
3,43 € | 1 | Add |
| 22 |
BOLT,SOCKET
913170609500
|
3,77 € | 1 | Add |
| 23 |
SCREW (583)
901490511000
|
2,22 € | 1 | Add |
| 24 |
GASKET (583)
904300512600
|
1,98 € | 1 | Add |
| 25 |
PIPE, DELIVERY 1
5VK131611000
|
51,60 € | 1 | Add |
| 26 |
BOLT, UNION(3AJ)
904010813300
|
4,17 € | 1 | Add |
| 27 |
GASKET(3AJ)
904300820400
|
3,25 € | 5 | Add |
