Yamaha AVENTURA XT660Z Tenere ABS 2013

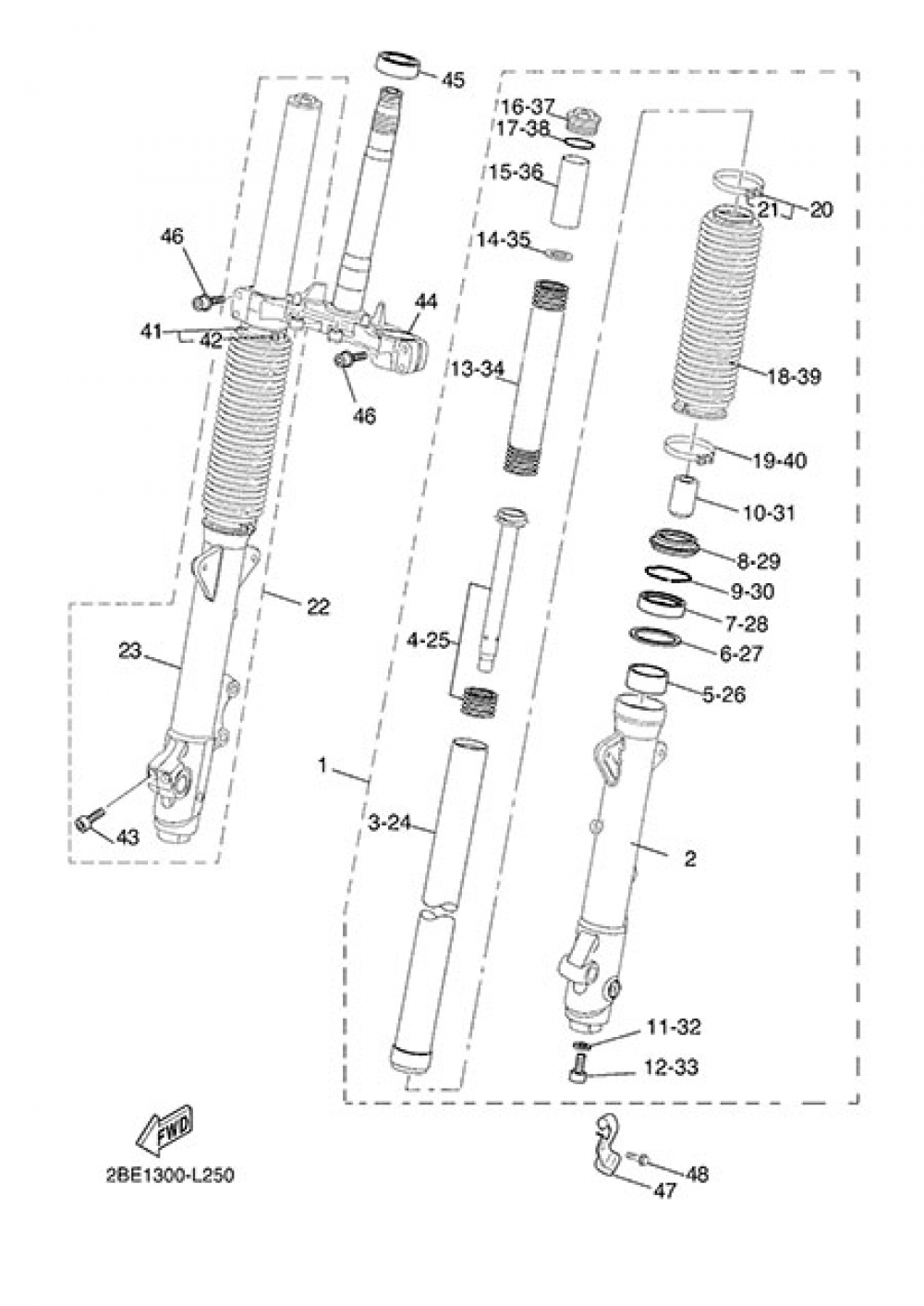

Add model to garageFRONT FORK Yamaha XT660Z Tenere ABS 2013
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
FRONT FORK ASSY (L.H)
56P231021000
|
518,85 € | 1 | Add |
| 2 |
TUBE, OUTER (LEFT)
56P231261000
|
895,54 € | 1 | Add |
| 3 |
INNER TUBE COMP.1
56P231101000
|
498,75 € | 1 | Add |
| 4 |
CYLINDER COMP., FRONT FORK
56P231701000
|
364,07 € | 1 | Add |
| 5 |
METAL, SLIDE 1
5EB231250000
|
22,60 € | 1 | Add |
| 6 |
WASHER
4V423146L000
|
6,63 € | 1 | Add |
| 7 |
OIL SEAL
3XJ23145L000
|
16,90 € | 1 | Add |
| 8 |
SEAL, DUST
2VM23144L000
|
25,37 € | 1 | Add |
| 9 |
RING, SNAP
4V423153L000
|
4,03 € | 1 | Add |
| 10 |
SPINDLE, TAPER
4YR231730000
|
35,05 € | 1 | Add |
| 11 |
GASKET
50923158L000
|
2,21 € | 1 | Add |
| 12 |
BOLT, HEXAGON SOCKET HEAD
3D8231810000
|
10,13 € | 1 | Add |
| 13 |
SPRING, FRONT FORK
56P231411000
|
97,37 € | 1 | Add |
| 14 |
WASHER, SPRING UPPER
3LR231490000
|
7,26 € | 1 | Add |
| 15 |
SPACER
3YF231180000
|
17,52 € | 1 | Add |
| 16 |
BOLT, CAP
3TJ231110000
|
65,56 € | 1 | Add |
| 17 |
ANILLO O
4V423188L100
|
5,26 € | 1 | Add |
| 18 |
BOOT
11D231911000
|
43,49 € | 1 | Add |
| 19 |
BAND
11D234891000
|
25,64 € | 1 | Add |
| 20 |
BAND, BOOT
4V423192L000
|
21,23 € | 1 | Add |
| 21 |
SCREW, PAN HEAD
985170401600
|
0,51 € | 1 | Add |
| 22 |
FRONT FORK ASSY (R.H)
56P231031000
|
518,85 € | 1 | Add |
| 23 |
TUBE, OUTER (RIGHT)
11D231361000
|
279,48 € | 1 | Add |
| 24 |
INNER TUBE COMP.1
56P231101000
|
498,75 € | 1 | Add |
| 25 |
CYLINDER COMP., FRONT FORK
56P231701000
|
364,07 € | 1 | Add |
| 26 |
METAL, SLIDE 1
5EB231250000
|
22,60 € | 1 | Add |
| 27 |
WASHER
4V423146L000
|
6,63 € | 1 | Add |
