Yamaha CARRETERA WR250X 2012

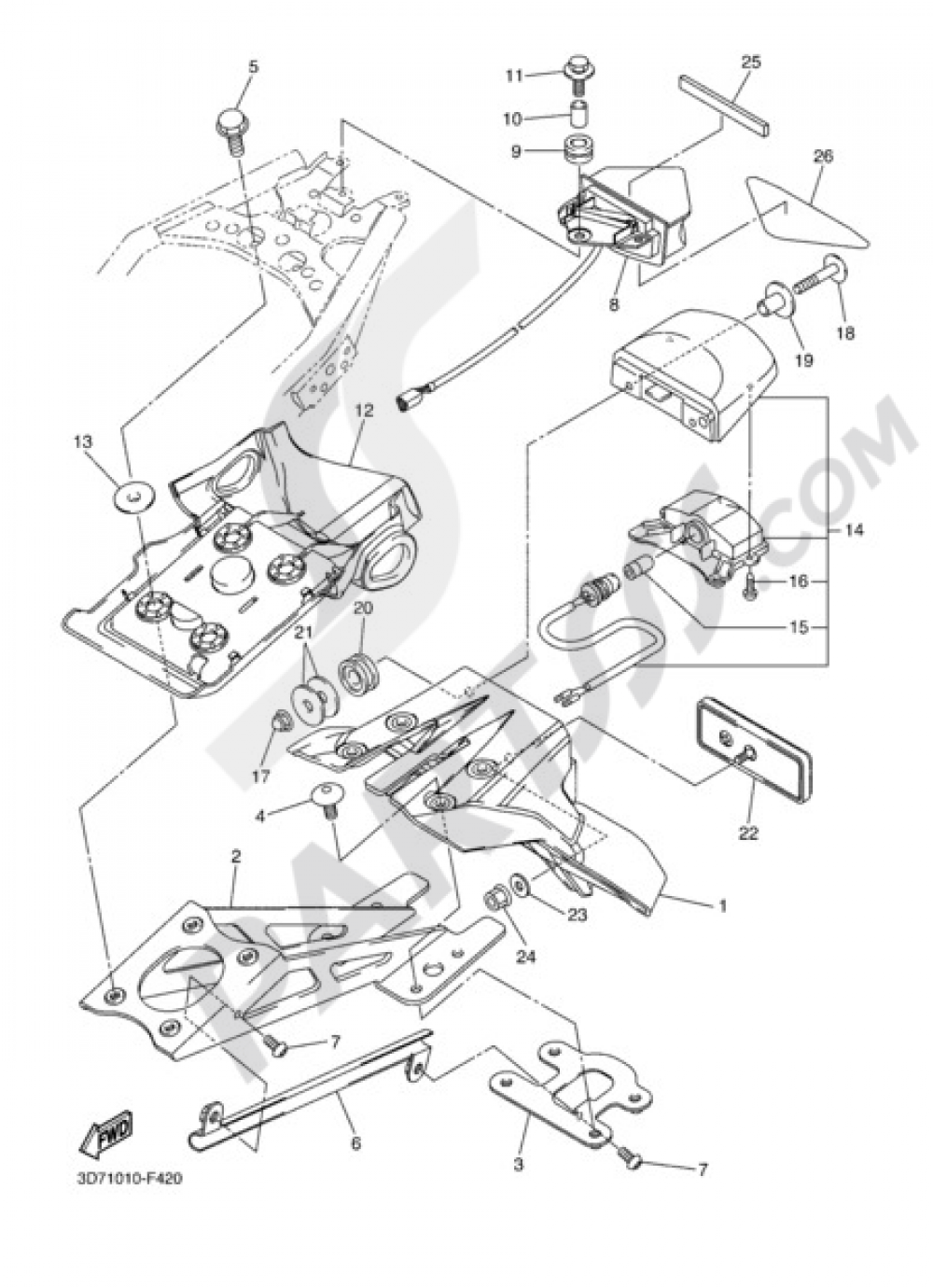

Add model to garageREAR LIGHT Yamaha WR250X 2012
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
SOPORTE DE LICENCIA
3D7216851100
|
39,42 € | 1 | Add |
| 2 |
REAR STAY COMP.
3D7216400000
|
212,33 € | 1 | Add |
| 3 |
STAY 2
3D72164G0000
|
22,89 € | 1 | Add |
| 4 |
BOLT
901110606100
|
1,42 € | 1 | Add |
| 5 |
BOLT, FLANGE
901050616900
|
1,60 € | 1 | Add |
| 6 |
BRACKET, REAR STAY
3D7216880000
|
12,88 € | 1 | Add |
| 7 |
BOLT, BUTTON HEAD
920120501000
|
0,69 € | 1 | Add |
| 8 |
TAILLIGHT UNIT ASSY
3D7847100000
|
198,30 € | 1 | Add |
| 9 |
GROMMET(3GM)
904801051700
|
3,09 € | 1 | Add |
| 10 |
COLLAR 288839130000
903870538300
|
2,35 € | 1 | Add |
| 11 |
BOLT, HEXAGON WITH WASHER(353)
901190500100
|
1,88 € | 5 | Add |
| 12 |
COVER, TAILLIGHT
3D7845160000
|
56,82 € | 1 | Add |
| 13 |
COLLAR
903870619000
|
6,59 € | 1 | Add |
| 14 |
LICENCE LIGHT UNIT ASSY
3D7847450000
|
55,33 € | 1 | Add |
| 15 |
AMPOLLETA
5YPH53530000
|
1,52 € | 1 | Add |
| 16 |
SCREW, TRUSS TAP.
977074001200
|
0,62 € | 1 | Add |
| 17 |
NUT, CROWN(47X)
901760505400
|
1,60 € | 1 | Add |
| 18 |
BOLT
901110501000
|
1,94 € | 1 | Add |
| 19 |
COLLAR
903870615900
|
2,48 € | 1 | Add |
| 20 |
DAMPER
4WM835130000
|
4,17 € | 1 | Add |
| 21 |
WASHER, PLATE (4H7)
90201061A500
|
1,66 € | 1 | Add |
| 22 |
REFLECTOR
3Y6851300200
|
22,64 € | 1 | Add |
| 23 |
WASHER, PLATE (8J0)
902010572500
|
3,09 € | 10 | Add |
| 24 |
NUT, FLANGE
957020550000
|
0,93 € | 1 | Add |
| 25 |
DAMPER, TAIL 1
3D7847360000
|
1,49 € | 1 | Add |
| 26 |
DAMPER, TAIL 2
3D7847370000
|
3,43 € | 1 | Add |
