Yamaha CARRETERA YBR250 2009

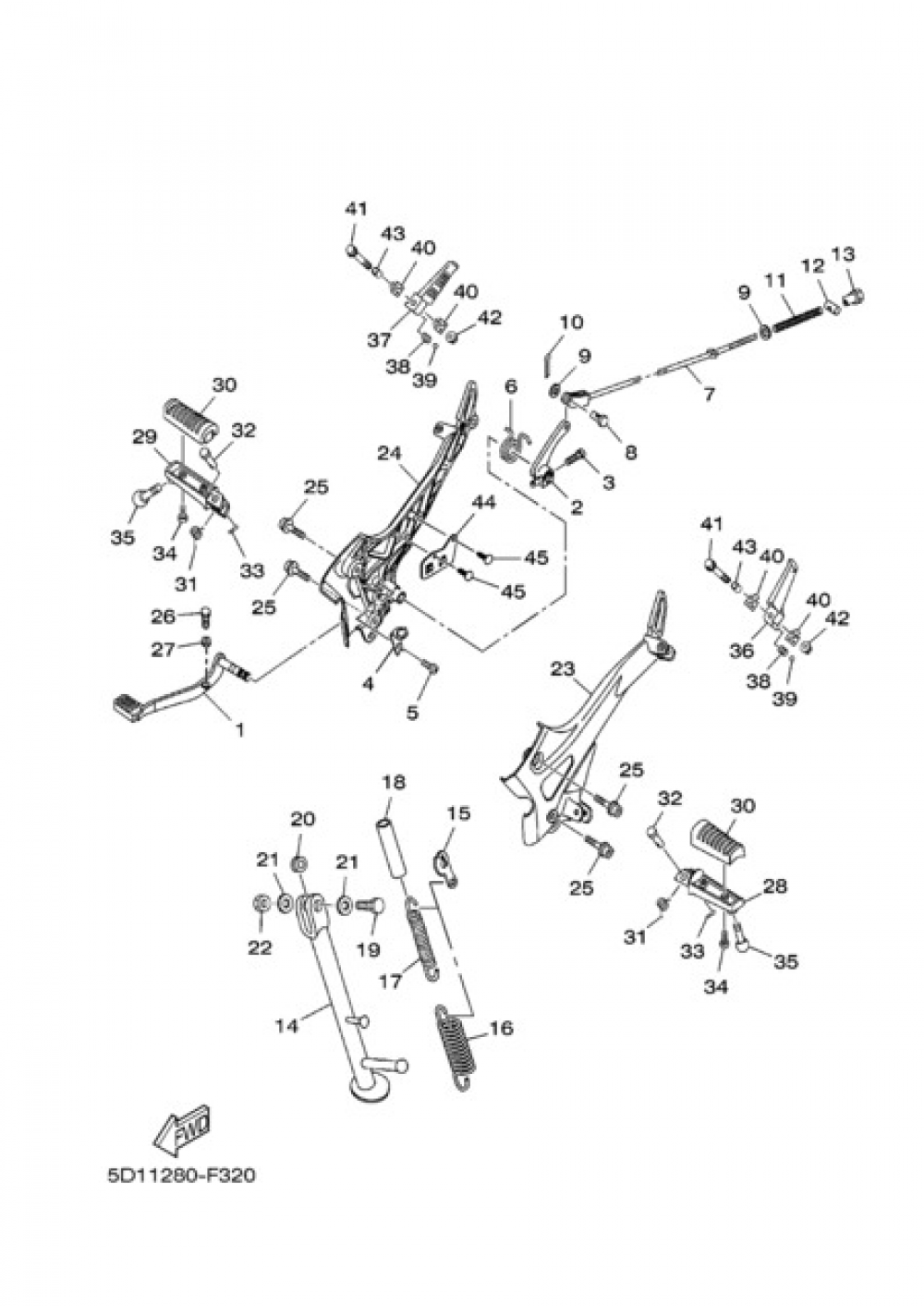

Add model to garageSTAND & FOOTREST Yamaha YBR250 2009
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
PEDAL, BRAKE
1S4F72110000
|
Obsolete | 1 | Not available |
| 2 |
LEVER
1S4F72620000
|
Obsolete | 1 | Not available |
| 3 |
BOLT, HEX.SOCKET HE
9131M0602000
|
0,62 € | 5 | Add |
| 4 |
STAY, STOP SWITCH
1S4F144G0000
|
Obsolete | 5 | Not available |
| 5 |
SCREW, PAN HEAD
9851M0600800
|
Obsolete | 10 | Not available |
| 6 |
SPRING, RETURN
1S4F72160000
|
Obsolete | 5 | Not available |
| 7 |
ROD, BRAKE
1S4F72310000
|
22,28 € | 1 | Add |
| 8 |
PIN, CLEVIS (5X6)
917010601800
|
2,64 € | 1 | Add |
| 9 |
WASHER(6TA)
929070620000
|
0,62 € | 1 | Add |
| 10 |
PIN, COTTER (648)
914902001500
|
2,29 € | 1 | Add |
| 11 |
SPRING, (180-27236-00)
905011024500
|
3,18 € | 5 | Add |
| 12 |
PIN 1562723700
902491200800
|
4,42 € | 5 | Add |
| 13 |
NUT (25K)
901790641100
|
1,60 € | 5 | Add |
| 14 |
STAND, SIDE
1S4F73110000
|
Obsolete | 1 | Not available |
| 15 |
LINK, SIDE STAND
1S4F73150000
|
Obsolete | 1 | Not available |
| 16 |
SPRING, TENSION
905062600100
|
Obsolete | 1 | Not available |
| 17 |
SPRING TENTION (2E9,SIDE STAND
905061816800
|
8,30 € | 1 | Add |
| 18 |
COVER, DUST
5D1F72350000
|
Obsolete | 1 | Not available |
| 19 |
BOLT
901011003400
|
11,68 € | 1 | Add |
| 20 |
COLLAR
903871000300
|
11,08 € | 1 | Add |
| 21 |
WASHER, PLATE(47X)
90201101J100
|
3,47 € | 1 | Add |
| 22 |
NUT, SELFLOCKING (533 FRAME)
901851006000
|
5,40 € | 1 | Add |
| 23 |
BRACKET 2
1S4F74420000
|
Obsolete | 1 | Not available |
| 24 |
BRACKET 3
5D1F74430000
|
Obsolete | 1 | Not available |
| 25 |
BOLT, HEXAGON SOCKET HEAD(3GM)
901100819900
|
2,76 € | 1 | Add |
| 26 |
BOLT
9702M0502000
|
Obsolete | 10 | Not available |
| 27 |
NUT, HEXAGON
953170560000
|
1,65 € | 1 | Add |
