Yamaha CUSTOM XV1900A Midnight Star 2007

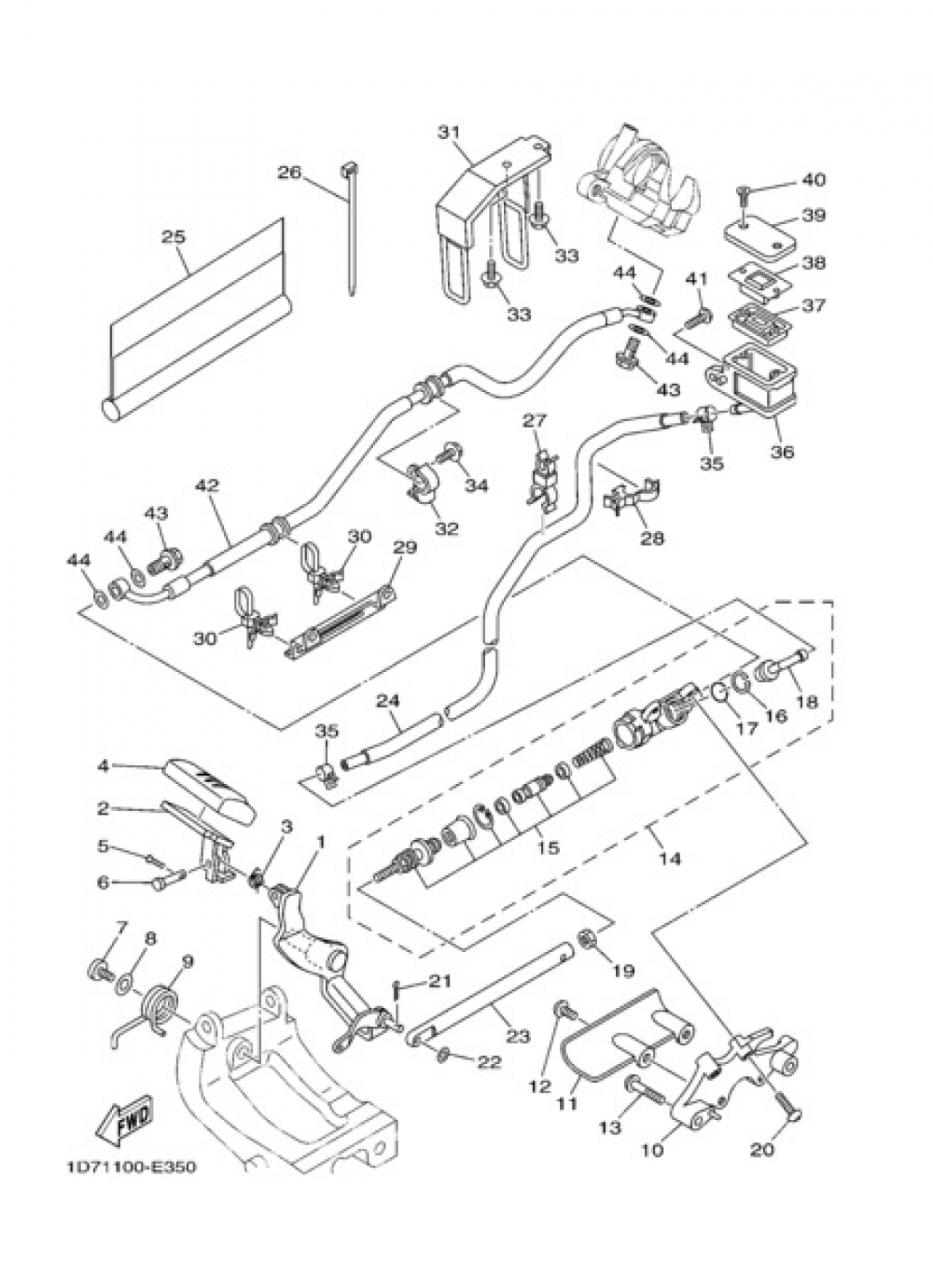

Add model to garageREAR MASTER CYLYNDER Yamaha XV1900A Midnight Star 2007
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 28 |
CLAMP(4HM)
904641519200
|
2,46 € | 1 | Add |
| 29 |
HOLDER, FUEL PIPE
1D7213740000
|
18,66 € | 1 | Add |
| 30 |
CLAMP
904641400600
|
1,89 € | 1 | Add |
| 31 |
HOLDER, BRAKE HOSE
1D72587A0000
|
55,42 € | 1 | Add |
| 32 |
HOLDER, BRAKE HOSE 5
1D72588F0000
|
18,41 € | 1 | Add |
| 33 |
BOLT, FLANGE
950220601200
|
0,46 € | 1 | Add |
| 34 |
BOLT, FLANGE
950220601200
|
0,46 € | 1 | Add |
| 35 |
CLIP (7K7)
904671104400
|
3,67 € | 1 | Add |
| 36 |
TANK, RESERVOIR
5YU258940000
|
22,39 € | 1 | Add |
| 37 |
DIAPHRAGM, RESERVOIR
55U258540000
|
21,04 € | 1 | Add |
| 38 |
PLATE, DIAPHRAGM
3GM2585B2000
|
13,25 € | 1 | Add |
| 39 |
CAP, RESERVOIR
5YU258520000
|
57,35 € | 1 | Add |
| 40 |
SCREW, FLAT HEAD
987060404000
|
0,51 € | 1 | Add |
| 41 |
BOLT, BUTTON HEAD(4NK)
920140601400
|
0,94 € | 1 | Add |
| 42 |
HOSE, BRAKE 4
1D72581J0000
|
103,80 € | 1 | Add |
| 43 |
BOLT, UNION
904011002000
|
3,80 € | 1 | Add |
| 44 |
GASKET
904301000500
|
3,77 € | 1 | Add |
