Yamaha CUSTOM XVS1100 2002

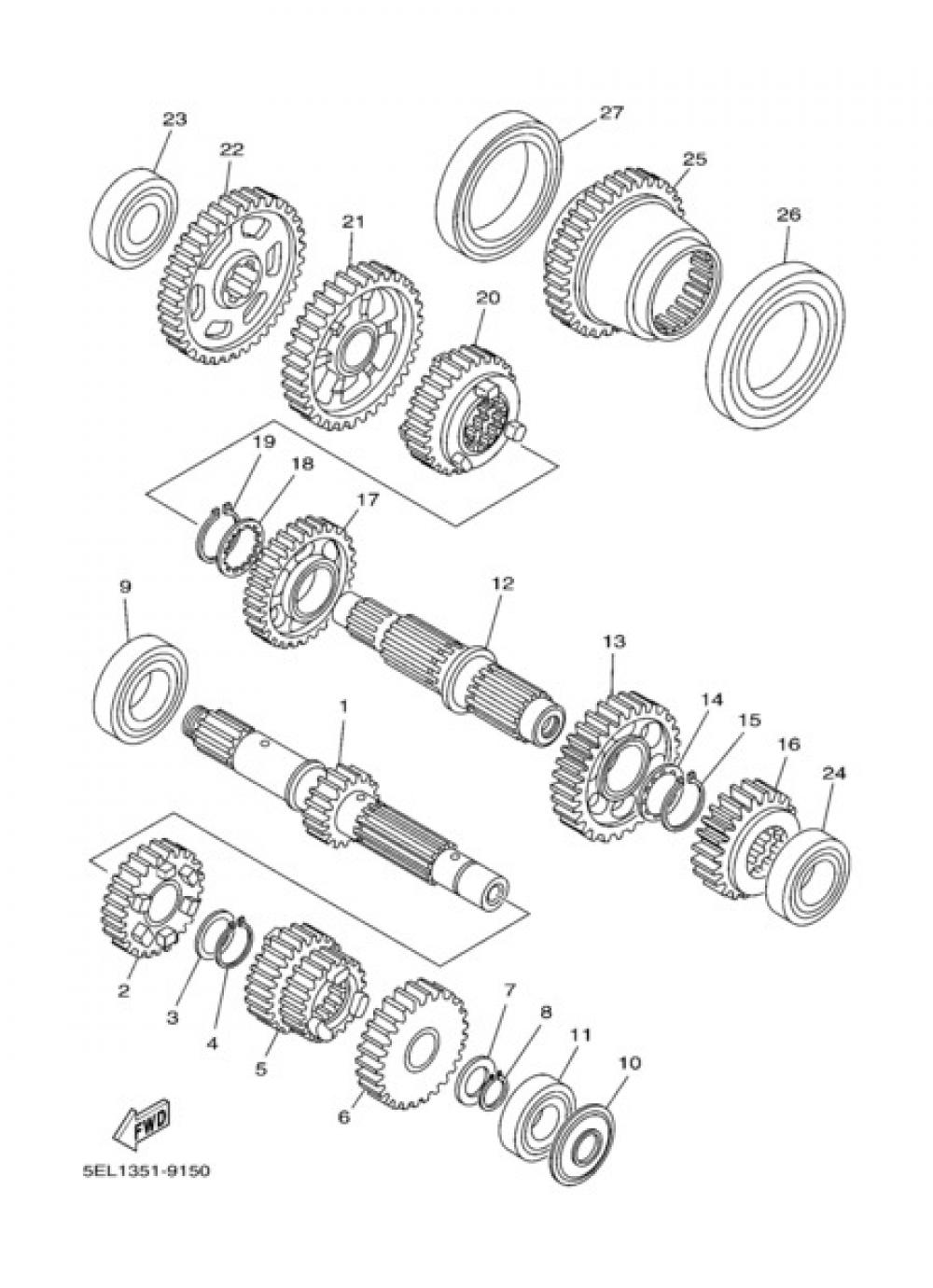

Add model to garageTRANSMISSION Yamaha XVS1100 2002
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
AXLE, MAIN
5EL174110000
|
Obsolete | 1 | Not available |
| 2 |
GEAR, 4TH PINION
5EL171410000
|
163,96 € | 1 | Add |
| 3 |
WASHER(3VD)
902092133200
|
10,38 € | 1 | Add |
| 4 |
CIRCLIP(JF7)
990092540000
|
0,62 € | 1 | Add |
| 5 |
GEAR, 2ND PINION
5EL171210000
|
128,77 € | 1 | Add |
| 6 |
GEAR, 5TH PINION
5EL171510000
|
152,88 € | 1 | Add |
| 7 |
WASHER PLATE 328171160000
902012027600
|
5,67 € | 5 | Add |
| 8 |
CIRCLIP(1AR)
990092040000
|
4,36 € | 5 | Add |
| 9 |
BEARING (3Y1)
933063052500
|
40,31 € | 1 | Add |
| 10 |
OIL SEAL (4X7)
931042006800
|
10,63 € | 1 | Add |
| 11 |
BEARING
933063044300
|
42,51 € | 1 | Add |
| 12 |
DRIVE AXLE ASSY
5EL174020000
|
Obsolete | 1 | Not available |
| 13 |
GEAR, 2ND WHEEL
5EL172210000
|
187,96 € | 1 | Add |
| 14 |
WASHER(3VD)
902092833100
|
13,02 € | 1 | Add |
| 15 |
CIRCLIP(3VD)
934403117200
|
24,56 € | 1 | Add |
| 16 |
GEAR, 5TH WHEEL
5EL172510000
|
190,24 € | 1 | Add |
| 17 |
GEAR, 3RD WHEEL
5EL172310000
|
Obsolete | 1 | Not available |
| 18 |
WASHER(3VD)
902092833100
|
13,02 € | 1 | Add |
| 19 |
CIRCLIP(3VD)
934403117200
|
24,56 € | 1 | Add |
| 20 |
ENGRANAJE DE RUEDA 4TA
5KS172410000
|
128,77 € | 1 | Add |
| 21 |
GEAR, 1ST WHEEL
4X7172110000
|
152,88 € | 1 | Add |
| 22 |
GEAR, MIDDLE DRIVE
5EL175820000
|
Obsolete | 1 | Not available |
| 23 |
BEARING
93306204Y700
|
17,83 € | 1 | Add |
| 24 |
BRG,R-B 6205DU8 52MM NK
933062055000
|
46,62 € | 1 | Add |
| 25 |
GEAR, MIDDLE DRIVEN
5EL175830000
|
314,93 € | 1 | Add |
| 26 |
BRG,R-B 16012 95MM 276G NT
933160120100
|
143,19 € | 1 | Add |
| 27 |
BRG,R-B 6912 85MM 189G NK
933069120100
|
120,18 € | 1 | Add |
