Yamaha CUSTOM XVS1100 2003

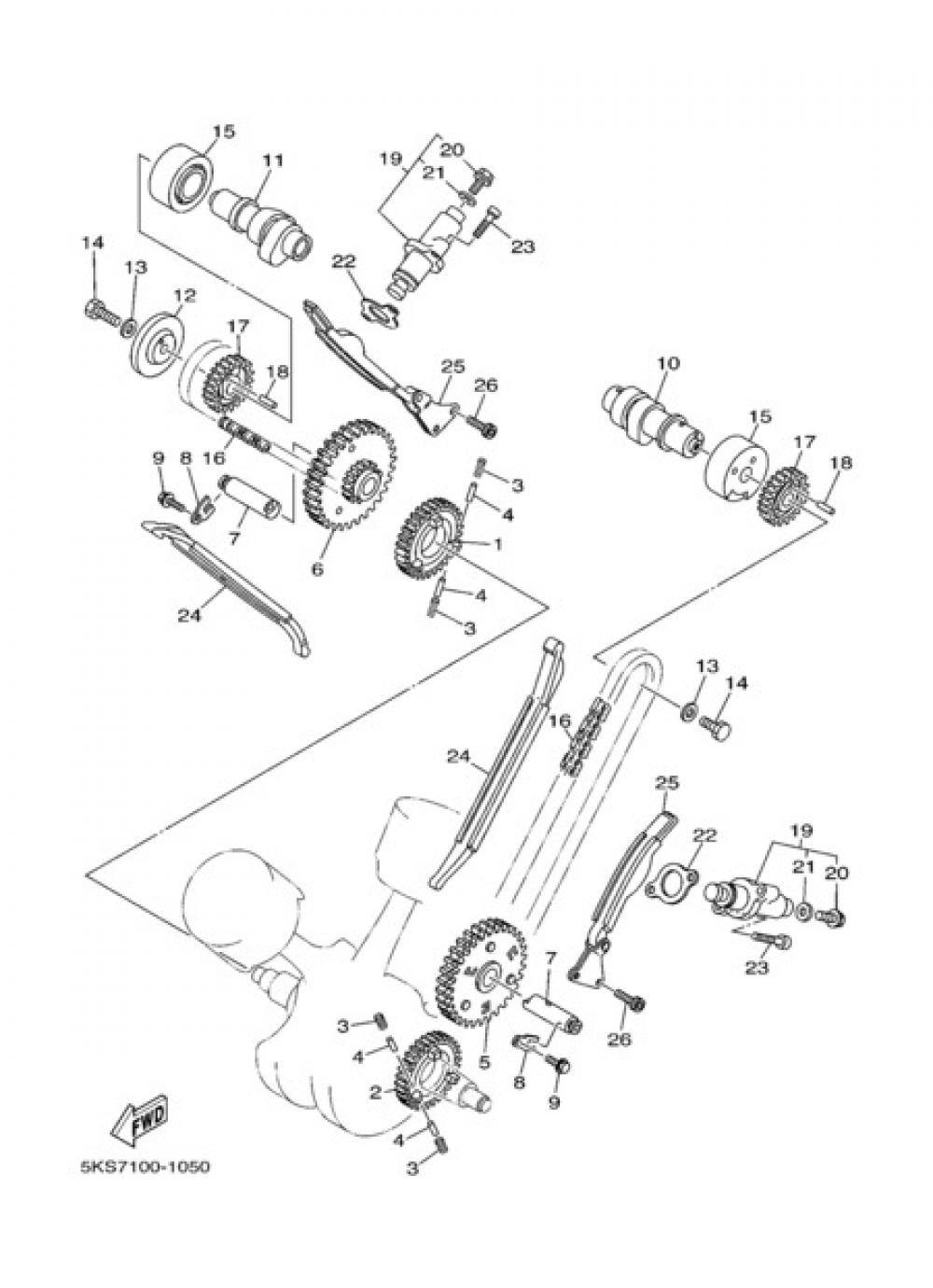

Add model to garageCAMSHAFT &CHAIN Yamaha XVS1100 2003
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
GEAR, DRIVE
4X7115360000
|
Obsolete | 1 | Not available |
| 2 |
GEAR, BREAKER DRIVE
4X7115340000
|
108,68 € | 1 | Add |
| 3 |
SPRING COMPRESSION341114880000
905012113300
|
5,40 € | 1 | Add |
| 4 |
PIN, DOWEL
936051009000
|
3,53 € | 5 | Add |
| 5 |
CAM CHAIN SPROCKET ASSY 1
5EL115400100
|
334,33 € | 1 | Add |
| 6 |
CAM CHAIN SPROCKET ASSY 2
5EL115500100
|
388,60 € | 1 | Add |
| 7 |
SHAFT, TENSIONER
5EL122470000
|
169,97 € | 1 | Add |
| 8 |
WASHER (4X7)
902090620500
|
4,36 € | 1 | Add |
| 9 |
BOLT, FLANGE
901050606600
|
2,12 € | 1 | Add |
| 10 |
CAMSHAFT 1
5EL121710000
|
305,92 € | 1 | Add |
| 11 |
CAMSHAFT 2
5EL121810000
|
Obsolete | 1 | Not available |
| 12 |
PLATE, BREATHER 2
42X111450000
|
17,14 € | 1 | Add |
| 13 |
WASHER, PLATE (3L6)
902011077400
|
6,24 € | 1 | Add |
| 14 |
BOLT (583)
901011030300
|
3,74 € | 1 | Add |
| 15 |
BUSH, SOLID (20X)
903802512500
|
69,12 € | 1 | Add |
| 16 |
CHAIN
945914909800
|
44,67 € | 1 | Add |
| 17 |
SPROCKET, CAM CHAIN
5EL121760000
|
67,11 € | 1 | Add |
| 18 |
PIN,DOWEL (168)
936041203700
|
2,43 € | 5 | Add |
| 19 |
TENSIONER ASSY, CAM CHAIN
5EL122100100
|
266,86 € | 1 | Add |
| 20 |
BOLT
5EL122280000
|
1,60 € | 1 | Add |
| 21 |
GASKET
5EL122140000
|
3,94 € | 1 | Add |
| 22 |
GASKET, TENSIONER CASE
4FM122130000
|
1,98 € | 1 | Add |
| 23 |
BOLT,SOCKET HEAD
913140602500
|
1,46 € | 1 | Add |
| 24 |
GUIDE, STOPPER 1
5EL122310000
|
53,88 € | 1 | Add |
| 25 |
GUIDE, STOPPER 2
5EL122410100
|
100,54 € | 1 | Add |
| 26 |
BOLT, SOCKET
913140601600
|
2,01 € | 1 | Add |
