Yamaha CUSTOM XVS1300A Midnight Star 2010

Add model to garage

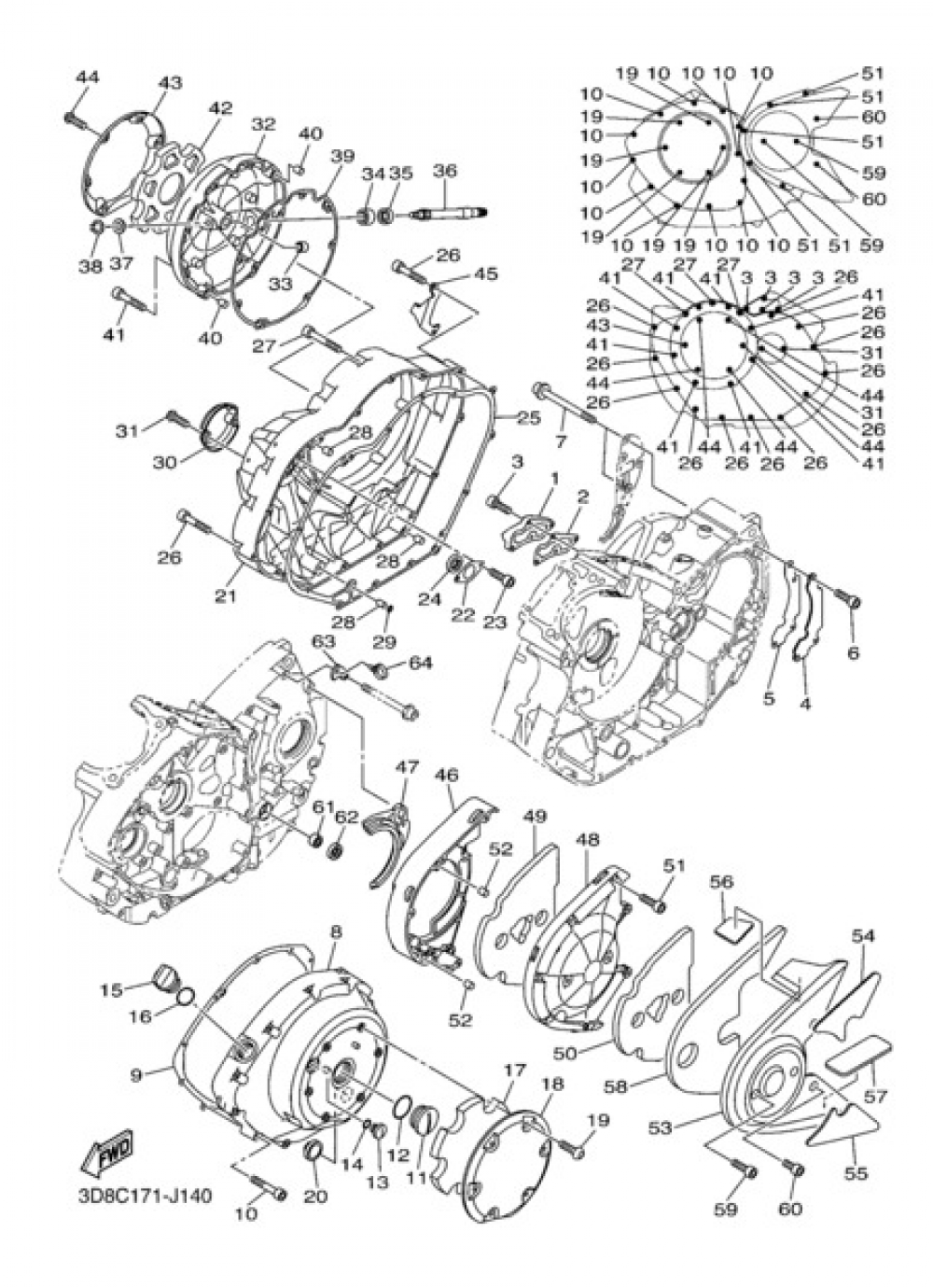

CRANKCASE COVER 1 Yamaha XVS1300A Midnight Star 2010

Pos. Ref./Description Price Qty.
1 COVER, OIL PUMP
3D8154160000
71,97 € 1 Add
2 GASKET 1
3D8154540000
5,58 € 1 Add
3 BOLT,SOCKET HEAD
913140602000 901100627400
1,94 € 1 Add
4 SEPARATOR, OIL
3D8153580000
7,52 € 1 Add
5 GASKET, DRAIN
3D8153530000
4,03 € 1 Add
6 BOLT,SOCKET
913170601600 901100616100
0,27 € 1 Add
7 BOLT, HEXAGON SOCKET HEAD
901100627000
8,51 € 1 Add
8 COVER, CRANKCASE 1
3D8154110000
200,82 € 1 Add
9 GASKET, CRANKCASE COVER 1
3D8154510000
27,90 € 1 Add
10 BOLT, SOCKET
913140604000
1,70 € 1 Add
11 PLUG, STRAIGHT SCREW (5Y1)
903403607800
10,06 € 1 Add
12 ANILLO O
932103580400 93210357A300
13,23 € 1 Add
13 PLUG, STRAIGHT SCREW(2HT)
903401411700
11,04 € 1 Add
14 O-RING (2H9)
932101436900
1,17 € 1 Add
15 PLUG, OIL LEVEL
3F9153621000
13,11 € 1 Add
16 O-RING(1KT)
932102777800 932102737000
7,14 € 1 Add
17 DAMPER 1
3D81542A0100
79,11 € 1 Add
18 COVER
3D8154920000
161,91 € 1 Add
19 BOLT, BUTTON HEAD(4NK)
920140601400
0,90 € 1 Add
20 GAUGE, LEVEL
2H7153610000
27,52 € 1 Add
21 COVER, CRANKCASE 2
3D8154210000
260,95 € 1 Add
22 PLATE, BEARING COVER
3D8153880000
3,82 € 1 Add
23 BOLT,SOCKET
913170601200 913120601200
0,90 € 1 Add
24 OIL SEAL (4X7)
931011410200
12,32 € 1 Add
25 GASKET, CRANKCASE COVER 2
3D8154610000
27,90 € 1 Add
26 BOLT, SOCKET
913140604000
1,70 € 1 Add
27 BOLT, SOCKET
913140606500
2,27 € 1 Add
