Yamaha CUSTOM XVS1300A Midnight Star 2011

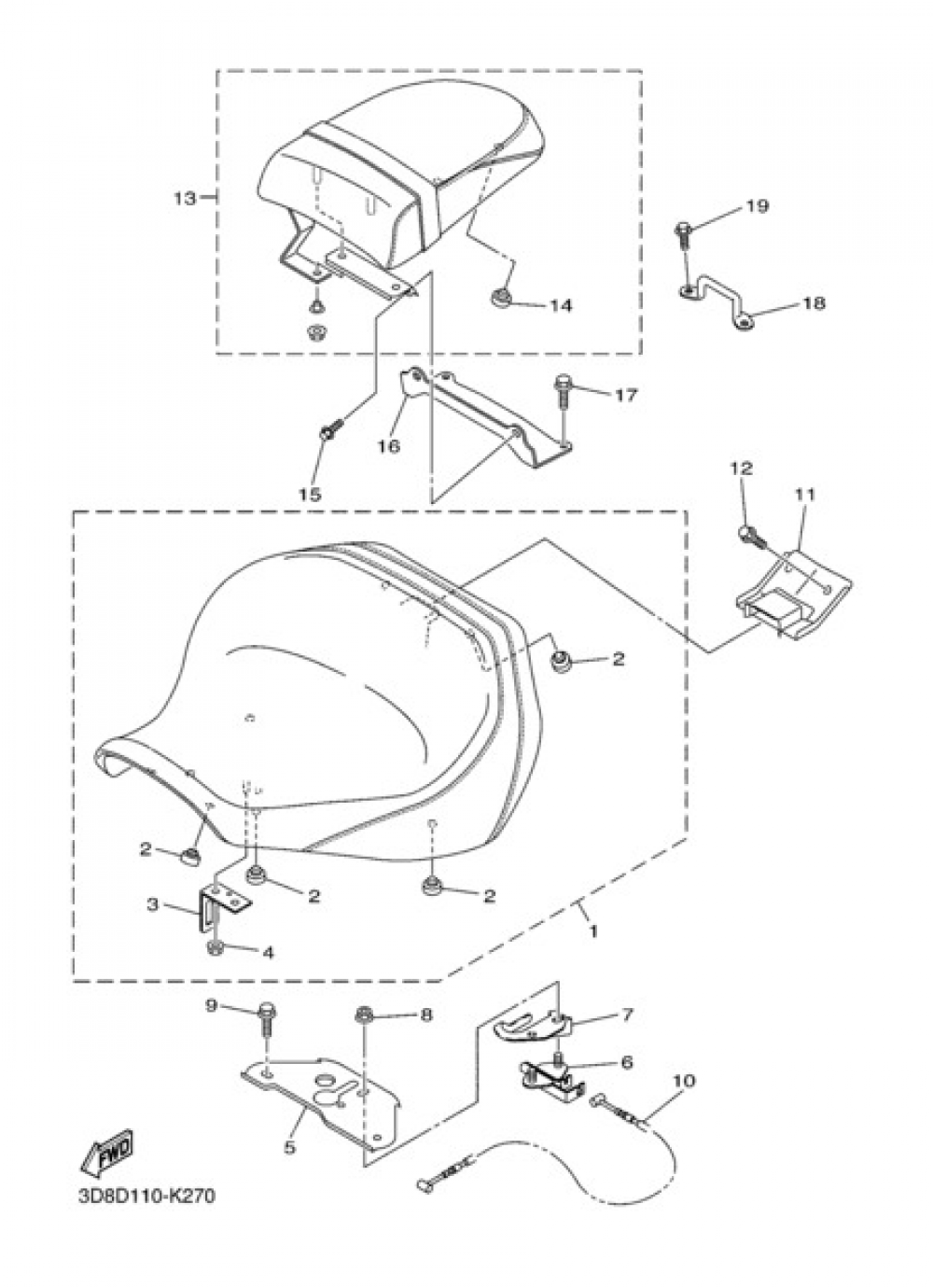

Add model to garageSEAT Yamaha XVS1300A Midnight Star 2011
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
SINGLE ASIENTO CONJUNTO
3D8247101100
|
345,53 € | 1 | Add |
| 2 |
PAD, SEAT
22W247410000
|
1,55 € | 1 | Add |
| 3 |
BRACKET, SEAT
4NK247280000
|
10,19 € | 1 | Add |
| 4 |
NUT, U FLANGE
956040620000
|
1,55 € | 1 | Add |
| 5 |
BRACKET, SEAT 1
3D8213410100
|
21,56 € | 1 | Add |
| 6 |
SEAT LOCK ASSY
4BP247800000
|
68,38 € | 1 | Add |
| 7 |
PLATE
27D247920000
|
8,33 € | 1 | Add |
| 8 |
NUT, FLANGE(7NB)
957800650000
|
1,77 € | 1 | Add |
| 9 |
BOLT, FLANGE
958170601400
|
0,93 € | 1 | Add |
| 10 |
CABLE, SEAT LOCK
5PX2478E0000
|
17,22 € | 1 | Add |
| 11 |
BRACKET
3D82475N0000
|
27,68 € | 1 | Add |
| 12 |
BOLT, BUTTON HEAD
920120801200
|
1,33 € | 1 | Add |
| 13 |
ASIENTO TANDEM COMPLETO
3D8247500200
|
272,23 € | 1 | Add |
| 14 |
PAD, SEAT
22W247410000
|
1,55 € | 1 | Add |
| 15 |
BOLT, FLANGE
950220801200
|
0,74 € | 1 | Add |
| 16 |
BRACKET, SEAT LEVER 1
1D72475H0000
|
14,52 € | 1 | Add |
| 17 |
BOLT, FLANGE
950220801200
|
0,74 € | 1 | Add |
| 18 |
BRACKET 6
3D82475R0000
|
17,74 € | 1 | Add |
| 19 |
BOLT, FLANGE
950220801200
|
0,74 € | 1 | Add |
