Yamaha CUSTOM XVS950A Midnight Star 2009

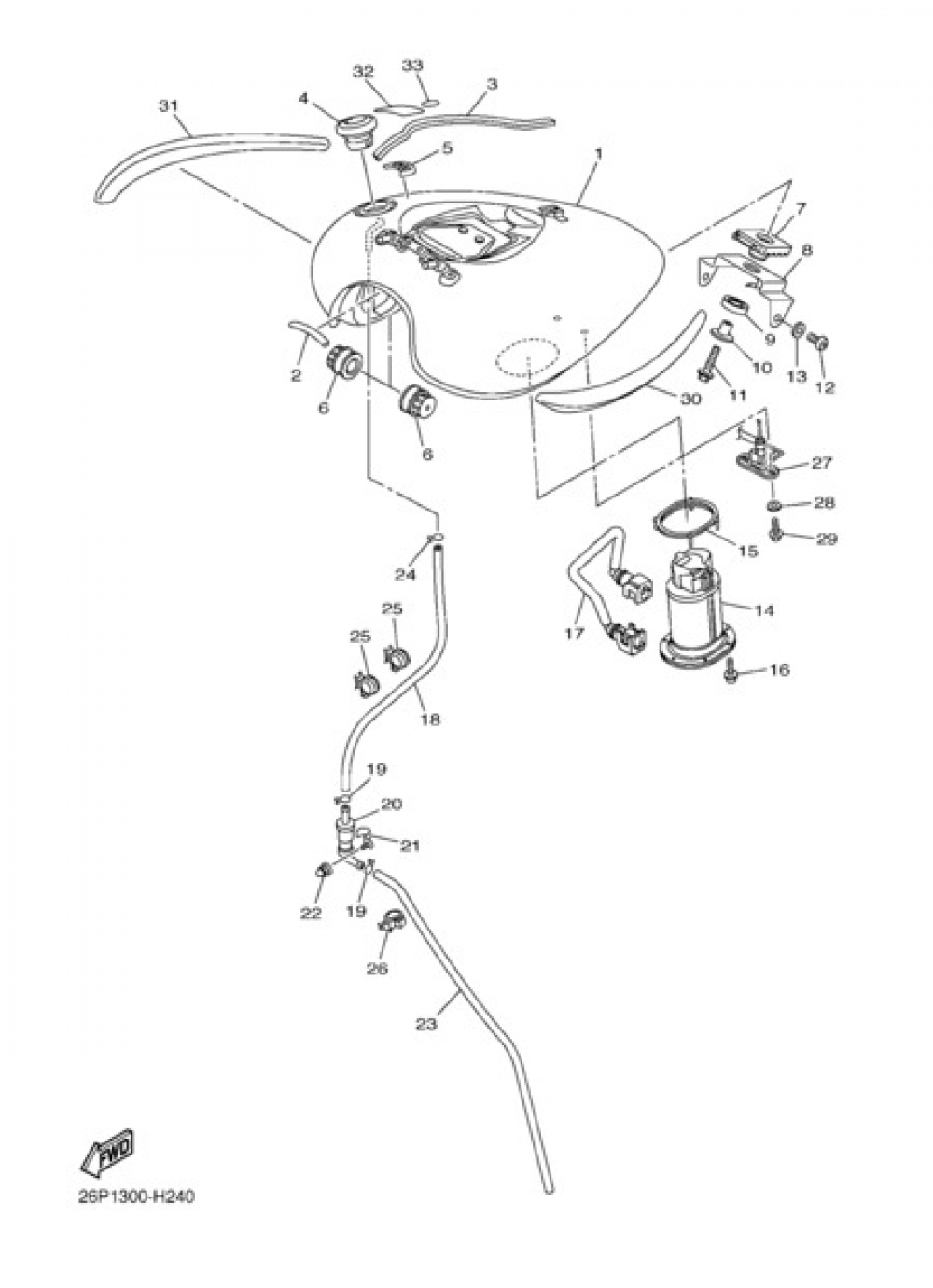

Add model to garageFUEL TANK Yamaha XVS950A Midnight Star 2009
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
FUEL TANK COMP.
5S7YK24100P0
|
1.375,77 € | 1 | Add |
| 1 |
FUEL TANK COMP.
5S7YK24100P4
|
1.375,77 € | 1 | Add |
| 1 |
FUEL TANK COMP.
5S7YK24100P5
|
1.250,71 € | 1 | Add |
| 2 |
MOLD, FUEL TANK
1HX241880100
|
10,20 € | 1 | Add |
| 3 |
DAMPER, SIDE COVER
5S7241450000
|
6,84 € | 1 | Add |
| 4 |
CAP ASSY
4NK246022000
|
249,87 € | 1 | Add |
| 5 |
PROTECTOR, FUEL TANK
5C4241410000
|
44,98 € | 1 | Add |
| 6 |
DAMPER, LOCATING 1
5S7241810000
|
18,77 € | 1 | Add |
| 7 |
DAMPER, LOCATING 2
1D7241820000
|
16,59 € | 1 | Add |
| 8 |
BRACKET, TANK FITTING
5S72413Y0000
|
26,12 € | 1 | Add |
| 9 |
DAMPER, LOCATING 3
4TR241830000
|
2,57 € | 1 | Add |
| 10 |
COLLAR
903870617700
|
10,51 € | 1 | Add |
| 11 |
MAINTENANCE PART
95D320603000
|
0,86 € | 1 | Add |
| 12 |
BOLT, BUTTON HEAD
920120801400
|
1,16 € | 1 | Add |
| 13 |
WASHER, PLATE(6L2)
9020108M0100
|
1,93 € | 5 | Add |
| 14 |
FUEL PUMP COMP.
5S7139070000
|
890,82 € | 1 | Add |
| 15 |
O-RING
5VN244860000
|
41,13 € | 1 | Add |
| 16 |
BOLT, HEXAGON SOCKET HEAD
901100502800
|
0,86 € | 1 | Add |
| 17 |
PIPE, FUEL 1
5S7139710000
|
73,63 € | 1 | Add |
| 18 |
PIPE 3
5S7243130000
|
31,15 € | 1 | Add |
| 19 |
CLIP
90467090A200
|
0,80 € | 1 | Add |
| 20 |
ROLL OVER VALVE ASSY
5RB241800000
|
129,88 € | 1 | Add |
| 21 |
CLAMP 2
5S7241360000
|
9,30 € | 1 | Add |
| 22 |
NUT, CROWN
901760500400
|
3,63 € | 1 | Add |
| 23 |
HOSE (L500)
904451103600
|
17,90 € | 1 | Add |
| 24 |
CLIP
90467090A200
|
0,80 € | 1 | Add |
| 25 |
CLAMP(4GY)
904642019100
|
4,14 € | 1 | Add |
