Yamaha FZ- SERIES FZ1 ABS 2010

Add model to garage

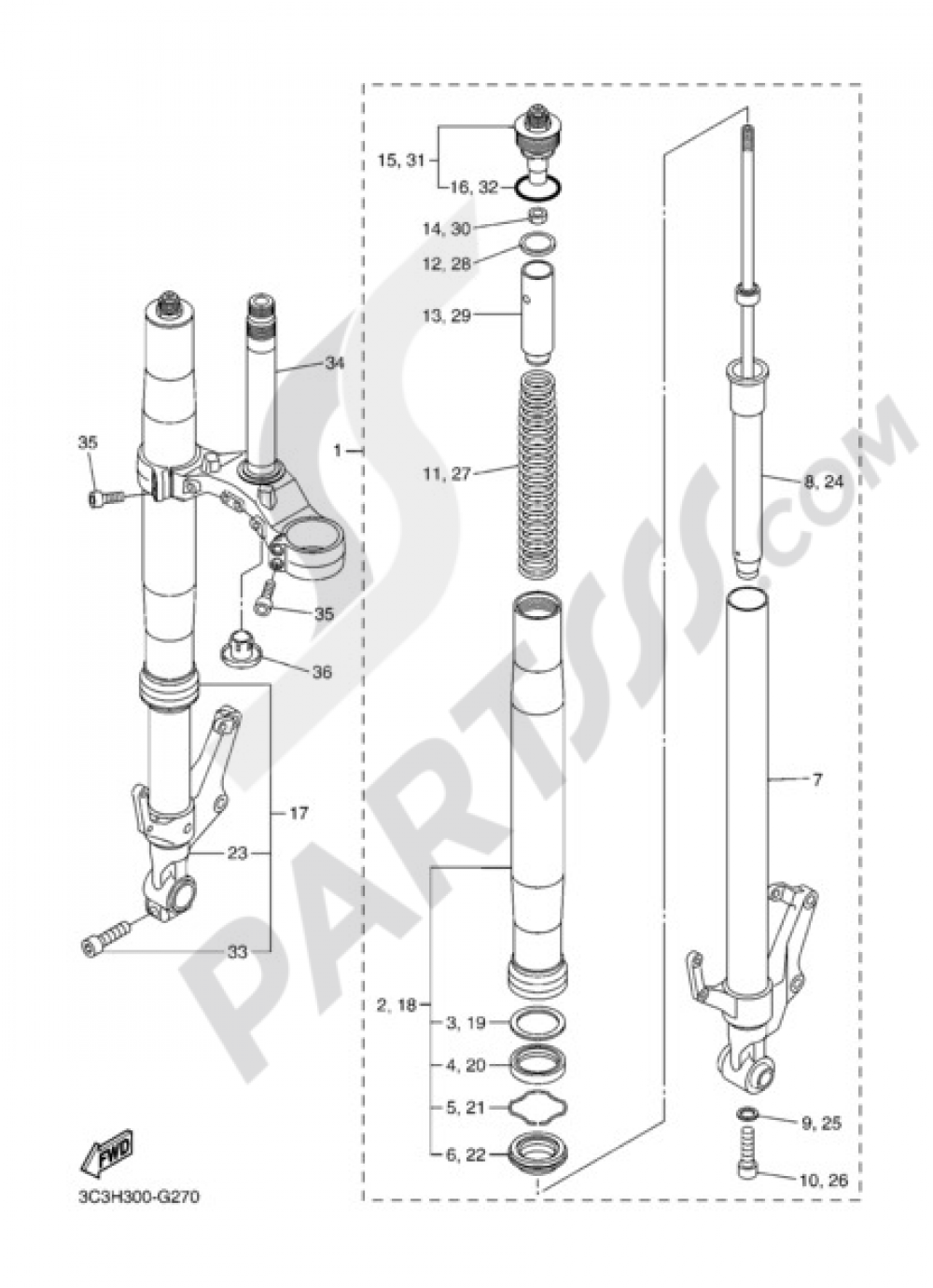

FRONT FORK Yamaha FZ1 ABS 2010

Pos. Ref./Description Price Qty.
1 FRONT FORK ASSY (L.H)
5D0231021000
705,12 € 1 Add
2 TUBE, OUTER (RIGHT)
2D1231360000
261,12 € 1 Add
3 WASHER
4V423146L000
5,28 € 1 Add
4 OIL SEAL
4PU231450100
14,44 € 1 Add
5 RING, SNAP
4V423153L000
3,09 € 1 Add
6 SEAL, DUST
4PU231440000
20,35 € 1 Add
7 INNER TUBE COMP.1
5D0231100000
343,64 € 1 Add
8 CYLINDER COMP., FRONT FORK
2D1231701100
291,51 € 1 Add
9 GASKET
50923158L000
1,92 € 1 Add
10 BOLT, HEXAGON SOCKET HEAD
3D8231810000
4,36 € 1 Add
11 SPRING, FRONT FORK
2D1231410000
173,72 € 1 Add
12 WASHER
5VY122770000
9,16 € 1 Add
13 SPACER
5VY231180000
43,35 € 1 Add
14 NUT
3LC233570000
0,41 € 5 Add
15 BOLT, CAP
2D1231110000
152,05 € 1 Add
16 O-RING
3XJ23147L000
5,34 € 1 Add
17 FRONT FORK ASSY (R.H)
5D0231031000
705,12 € 1 Add
18 TUBE, OUTER (RIGHT)
2D1231360000
261,12 € 1 Add
19 WASHER
4V423146L000
5,28 € 1 Add
20 OIL SEAL
4PU231450100
14,44 € 1 Add
21 RING, SNAP
4V423153L000
3,09 € 1 Add
22 SEAL, DUST
4PU231440000
20,35 € 1 Add
23 INNER TUBE COMP.2
5D0231200000
343,64 € 1 Add
24 CYLINDER COMP., FRONT FORK
2D1231700100
291,51 € 1 Add
25 GASKET
50923158L000
1,92 € 1 Add
26 BOLT, HEXAGON SOCKET HEAD
3D8231810000
4,36 € 1 Add
27 SPRING, FRONT FORK
2D1231410000
173,72 € 1 Add
