Yamaha FZ- SERIES FZ1 Fazer 2011

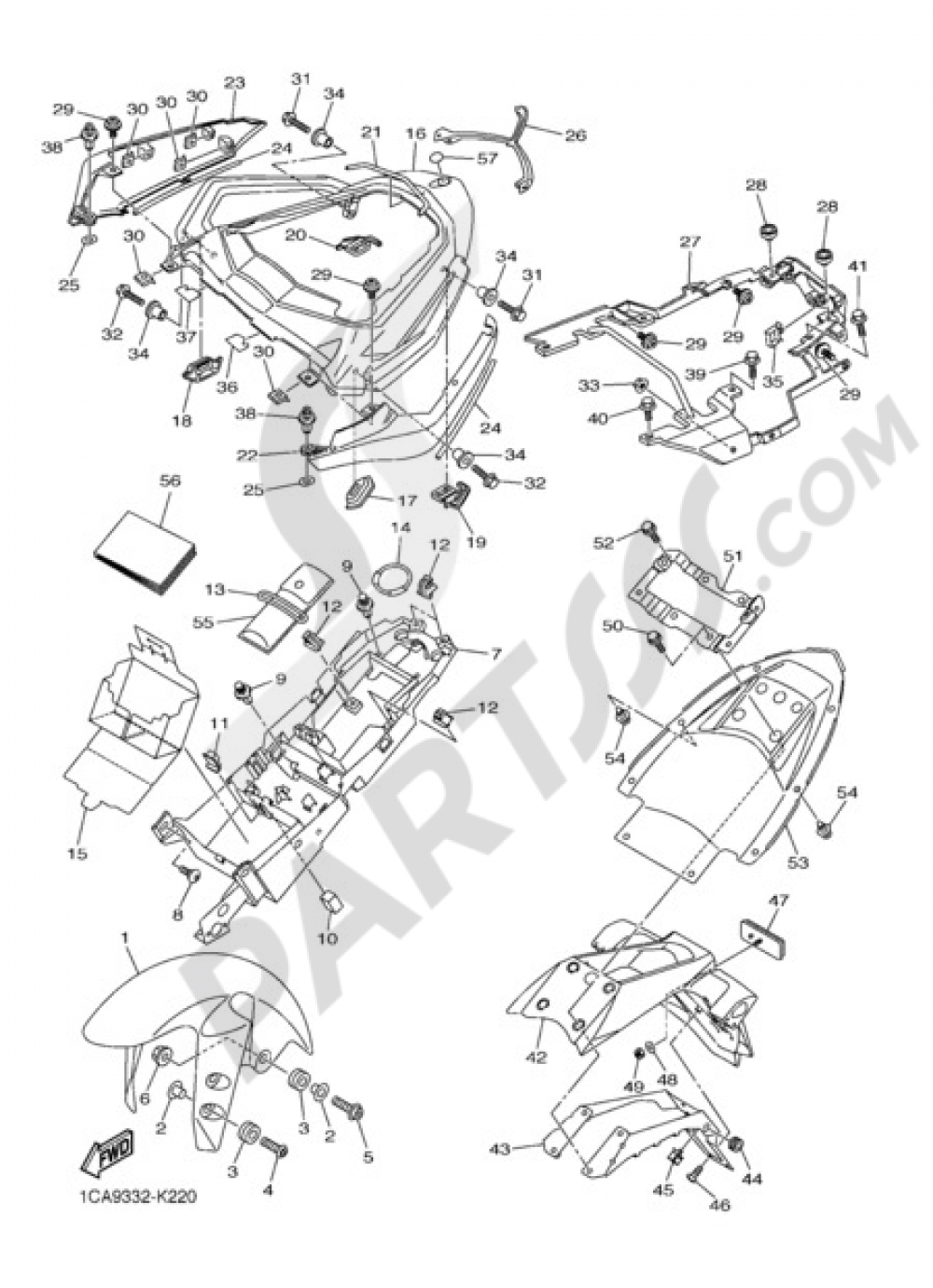

Add model to garageFENDER Yamaha FZ1 Fazer 2011
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
DEFENSA, FRONTAL
5PW2151102P6
|
193,49 € | 1 | Add |
| 2 |
COLLAR
903870615900
|
2,34 € | 1 | Add |
| 3 |
GROMMET(53Y)
904801207200
|
5,06 € | 1 | Add |
| 4 |
SCREW(4DN)
901490630200
|
5,15 € | 1 | Add |
| 5 |
BOLT
901090603100
|
2,21 € | 1 | Add |
| 6 |
NUT, U FLANGE
956040620000
|
1,41 € | 1 | Add |
| 7 |
BOX, BATTERY 1
2D18212B0200
|
99,24 € | 1 | Add |
| 8 |
BOLT
901090625300
|
3,43 € | 1 | Add |
| 9 |
RIVET(4PH)
902690707700
|
1,63 € | 1 | Add |
| 10 |
SEAL, 2
2D1216A20000
|
1,49 € | 1 | Add |
| 11 |
SEAL, 3
2D1216A30000
|
6,67 € | 1 | Add |
| 12 |
CLAMP
904640725900
|
2,00 € | 1 | Add |
| 13 |
BAND, TOOL
4XV213760000
|
10,93 € | 1 | Add |
| 14 |
BAND
2D1216460000
|
7,08 € | 1 | Add |
| 15 |
SEAT, BATTERY
2D1821221000
|
112,35 € | 1 | Add |
| 16 |
HANDLE, SEAT
3C32477300P4
|
387,34 € | 1 | Add |
| 17 |
DAMPER, SEAT
3C3247230000
|
11,45 € | 1 | Add |
| 18 |
DAMPER, SEAT
3C3247240000
|
4,19 € | 1 | Add |
| 19 |
DAMPER, SEAT
3C3247370000
|
15,14 € | 1 | Add |
| 20 |
DAMPER, SEAT
3C3247470000
|
6,17 € | 1 | Add |
| 21 |
DAMPER 1
3C3215410000
|
3,63 € | 1 | Add |
| 22 |
COVER, TAIL 1
3C32471K00P4
|
128,99 € | 1 | Add |
| 23 |
COVER, TAIL 2
3C32472K00P4
|
128,88 € | 1 | Add |
| 24 |
PROTECTOR
3C32193A0000
|
6,21 € | 1 | Add |
| 25 |
DAMPER
5PW2174X0000
|
2,03 € | 1 | Add |
| 26 |
COVER, REAR FENDER 1
3C32163A0000
|
31,43 € | 1 | Add |
| 27 |
BRACKET, FENDER
3C3216170000
|
434,54 € | 1 | Add |
