Yamaha FZ- SERIES FZ6 Fazer 2007

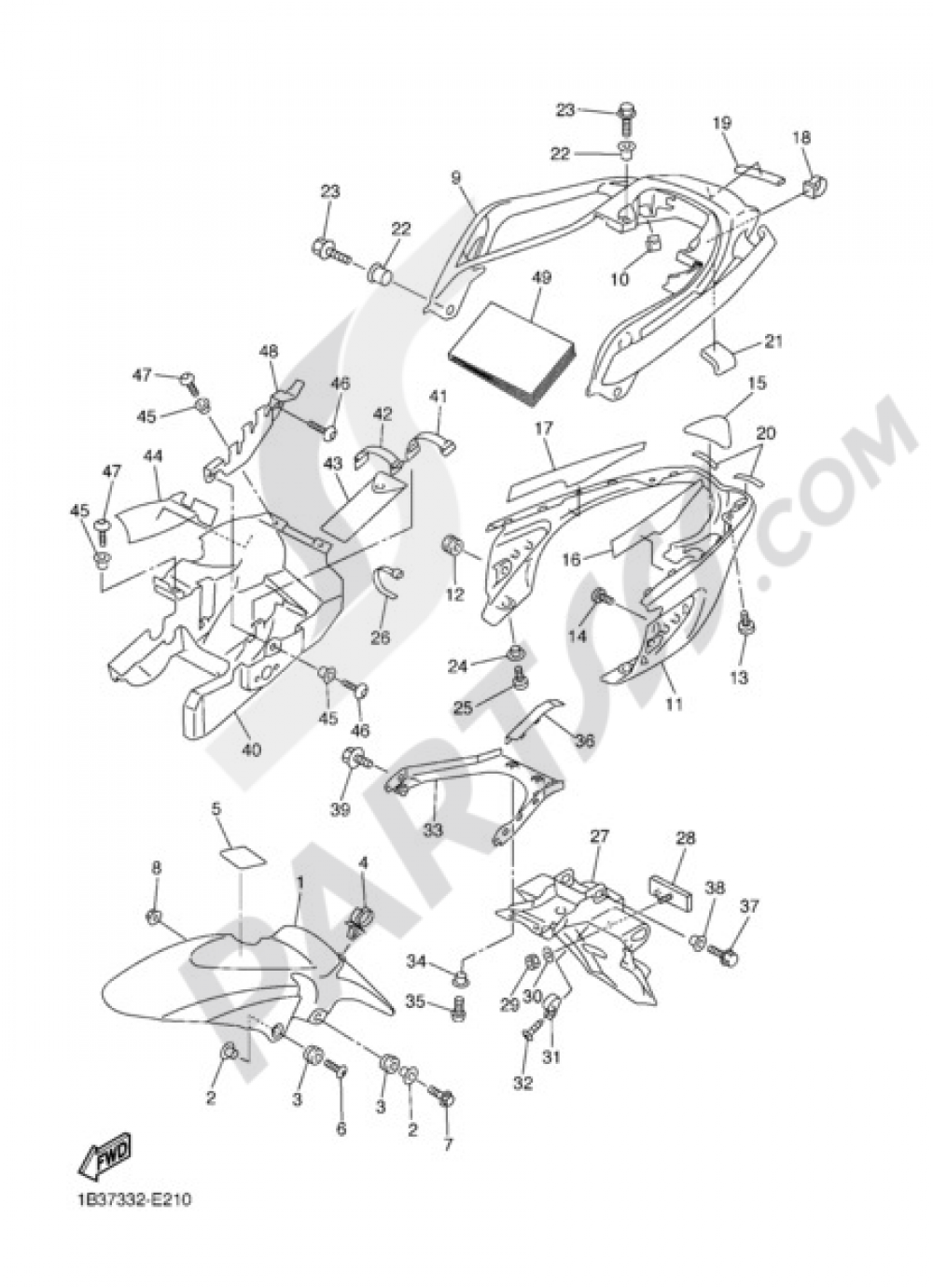

Add model to garageFENDER Yamaha FZ6 Fazer 2007
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
FENDER, FRONT
5VX215111000
|
191,20 € | 1 | Add |
| 2 |
COLLAR
903870615900
|
2,55 € | 1 | Add |
| 3 |
GROMMET(53Y)
904801207200
|
6,09 € | 1 | Add |
| 4 |
CLAMP
904641800200
|
6,15 € | 1 | Add |
| 5 |
SEAL 1
5VX215750000
|
17,04 € | 1 | Add |
| 6 |
SCREW, BINDING(3XV)
901540606100
|
4,36 € | 1 | Add |
| 7 |
BOLT, FLANGE(4KG)
950240602500
|
1,46 € | 1 | Add |
| 8 |
NUT (21W)
901790640300
|
2,07 € | 1 | Add |
| 9 |
MANIJA DE ASIENTO
5VX2477301P4
|
382,27 € | 1 | Add |
| 9 |
MANIJA DE ASIENTO
5VX2477301P5
|
Obsolete | 1 | Not available |
| 10 |
NUT, SPRING(3GM)
901830506100
|
8,18 € | 1 | Add |
| 11 |
COVER, REAR FENDER
5VX216510000
|
110,74 € | 1 | Add |
| 12 |
GROMMET
904801301400
|
2,43 € | 1 | Add |
| 13 |
SCREW, BINDING
989070501200
|
0,62 € | 1 | Add |
| 14 |
SCREW, TRUSS TAP.
977075001200
|
0,62 € | 5 | Add |
| 15 |
SEAL
5VX216690000
|
Obsolete | 1 | Not available |
| 16 |
SEAL 1
5VX217320000
|
Obsolete | 1 | Not available |
| 17 |
SEAL 2
5VX217350100
|
Obsolete | 1 | Not available |
| 18 |
CLAMP
904641400200
|
5,26 € | 1 | Add |
| 19 |
DAMPER
5VX881580000
|
2,55 € | 1 | Add |
| 20 |
DAMPER 2
5VX216390000
|
0,93 € | 1 | Add |
| 21 |
DAMPER 1
31A282170000
|
8,59 € | 1 | Add |
| 22 |
COLLAR
903870901200
|
9,43 € | 1 | Add |
| 23 |
BOLT, FLANGE(4LN)
958170802500
|
1,72 € | 1 | Add |
| 24 |
COLLAR
903870610700
|
6,80 € | 1 | Add |
| 25 |
SCREW, BINDING
989070601200
|
1,30 € | 1 | Add |
| 26 |
BAND
1UA825910000
|
2,24 € | 5 | Add |
