Yamaha FZ- SERIES FZ6 2006

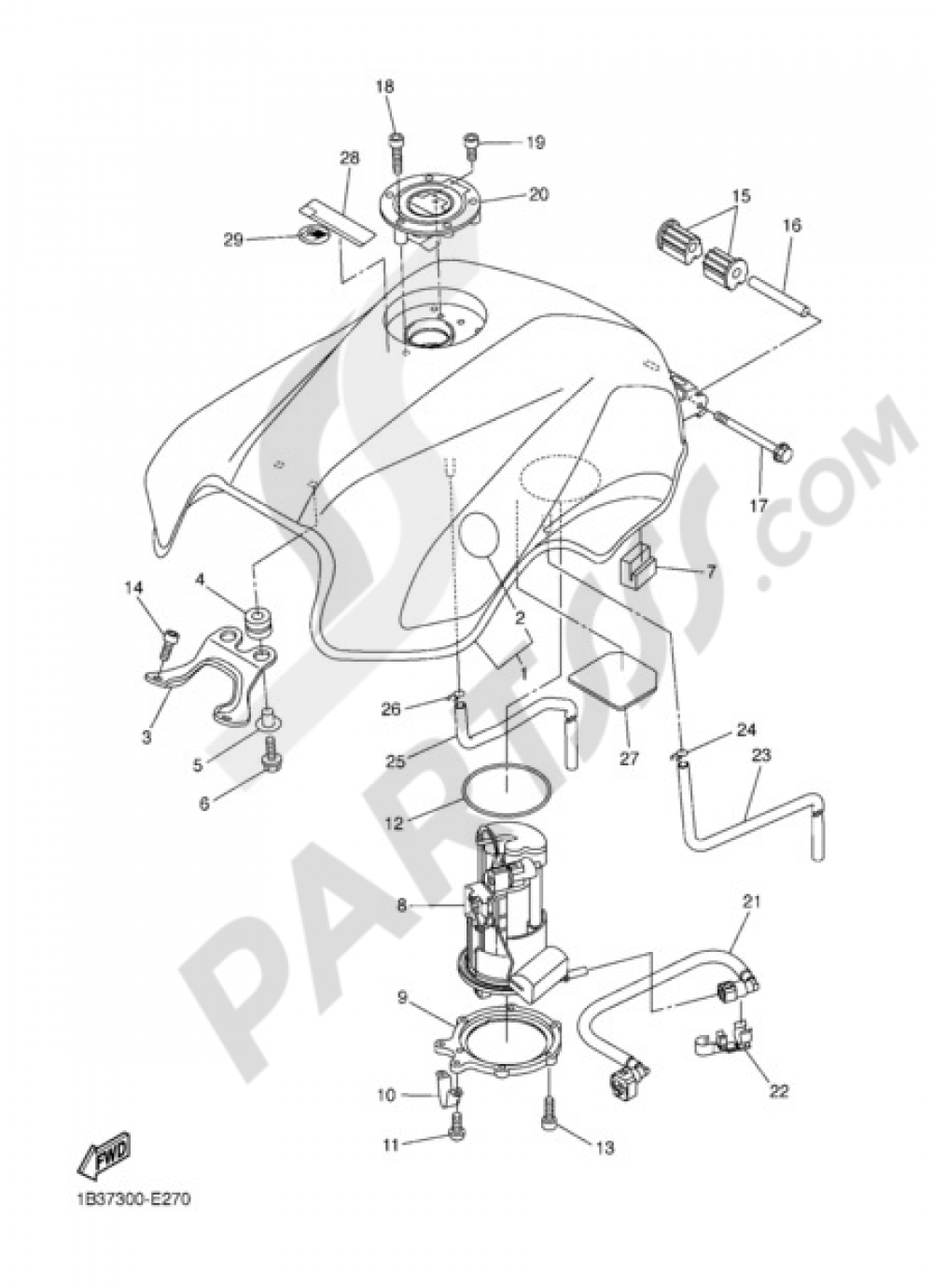

Add model to garageFUEL TANK Yamaha FZ6 2006
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
FUEL TANK COMP.
5VXY24103007
|
Obsolete | 1 | Not available |
| 2 |
EMBLEM
5VX2411B0000
|
15,32 € | 1 | Add |
| 3 |
BRACKET, FUEL TANK 1
5VX241910000
|
21,56 € | 1 | Add |
| 4 |
GROMMET
904801500500
|
1,94 € | 1 | Add |
| 5 |
COLLAR
903870606800
|
1,42 € | 1 | Add |
| 6 |
BOLT, WITH WASHER
901190623400
|
1,26 € | 1 | Add |
| 7 |
DAMPER, LOCATING 3
5VX241830000
|
6,80 € | 1 | Add |
| 8 |
BOMBA DE COMBUSTIBLE COMPLETA
5VX139070500
|
996,43 € | 1 | Add |
| 9 |
BRACKET, FUEL PUMP
5SL244910000
|
Obsolete | 1 | Not available |
| 10 |
BRACKET, FUEL TANK 2
5PW241920000
|
Obsolete | 1 | Not available |
| 11 |
SCREW, BINDING
989070500800
|
1,33 € | 1 | Add |
| 12 |
O-RING
19B244860100
|
20,02 € | 1 | Add |
| 13 |
BOLT, HEXAGON SOCKET HEAD
901100501400
|
0,86 € | 1 | Add |
| 14 |
BOLT, HEXAGON SOCKET HEAD
901100607900
|
3,43 € | 1 | Add |
| 15 |
DAMPER, LOCATING 1
5VX241810000
|
6,06 € | 1 | Add |
| 16 |
COLLAR(JF3)
90387061W600
|
6,06 € | 5 | Add |
| 17 |
BOLT, FLANGE
958170609000
|
2,88 € | 1 | Add |
| 18 |
BOLT, HEXAGON SOCKET HEAD(1FM)
901100511200
|
2,68 € | 1 | Add |
| 19 |
BOLT, SOCKET
913170501000
|
1,42 € | 1 | Add |
| 20 |
CAP ASSY
39P246020000
|
290,44 € | 1 | Add |
| 21 |
PIPE, FUEL 1
5VX139710000
|
98,12 € | 1 | Add |
| 22 |
CLAMP
904641600500
|
21,17 € | 1 | Add |
| 23 |
HOSE (L840)
904451003300
|
Obsolete | 1 | Not available |
| 24 |
CLIP(1JH)
904671110600
|
2,35 € | 1 | Add |
| 25 |
HOSE (L730)
90445105K700
|
11,33 € | 1 | Add |
| 26 |
CLIP(1JH)
904671110600
|
2,35 € | 1 | Add |
| 27 |
PROTECTOR, FUEL TANK
5VX241410000
|
Obsolete | 1 | Not available |
