Yamaha FZ- SERIES FZ8 2011

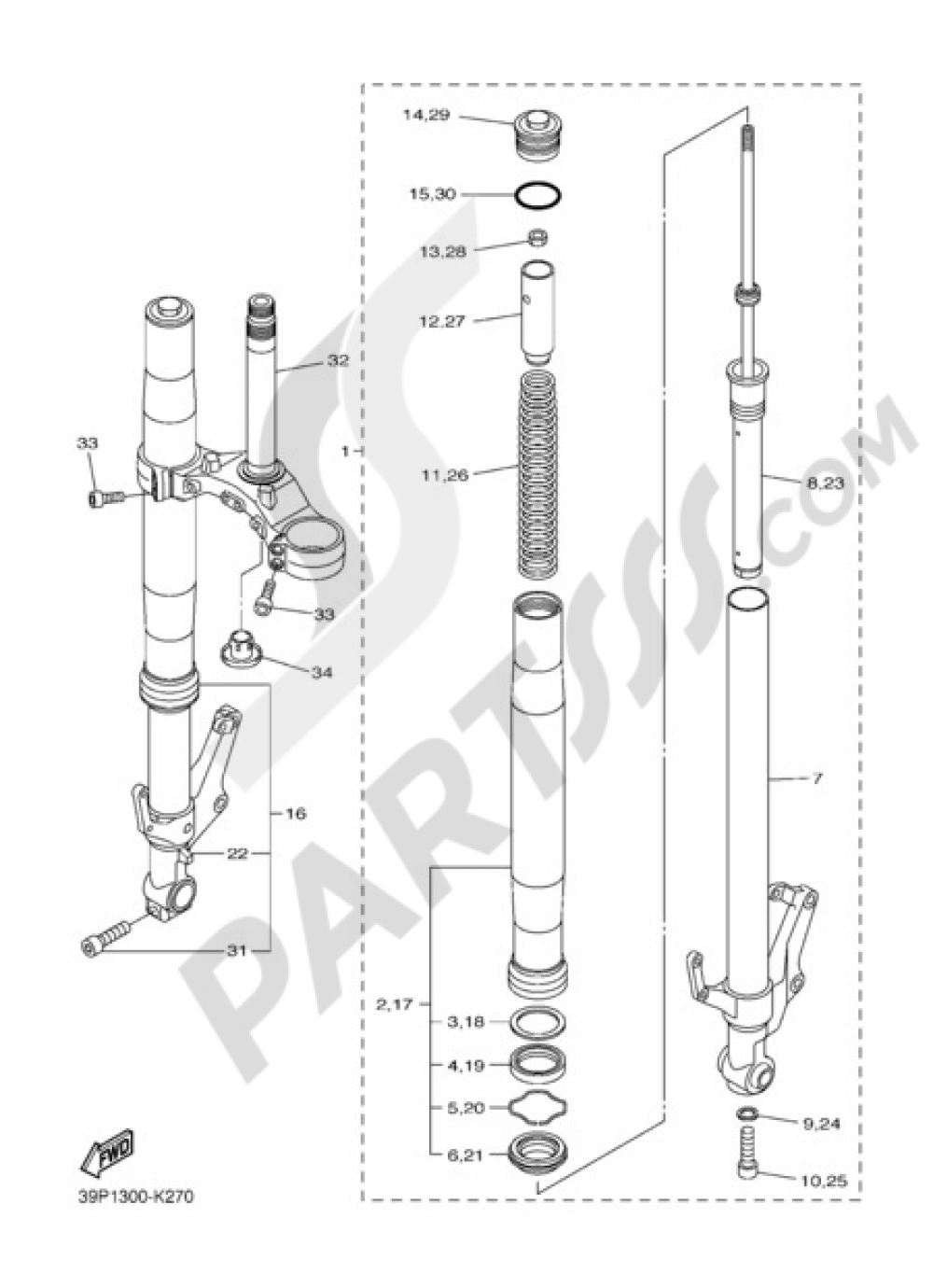

Add model to garageFRONT FORK Yamaha FZ8 2011
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
FRONT FORK ASSY (L.H)
39P231020000
|
Obsolete | 1 | Not available |
| 2 |
TUBE, OUTER (RIGHT)
2D1231361000
|
313,48 € | 1 | Add |
| 3 |
WASHER
4V423146L000
|
6,86 € | 1 | Add |
| 4 |
OIL SEAL
4PU231450100
|
17,24 € | 1 | Add |
| 5 |
RING, SNAP
4V423153L000
|
4,17 € | 1 | Add |
| 6 |
SEAL, DUST
4PU231440000
|
24,15 € | 1 | Add |
| 7 |
INNER TUBE COMP.1
39P231100000
|
385,16 € | 1 | Add |
| 8 |
CYLINDER COMP., FRONT FORK
39P231700000
|
349,60 € | 1 | Add |
| 9 |
GASKET
50923158L000
|
2,25 € | 1 | Add |
| 10 |
BOLT, HEXAGON SOCKET HEAD
3D8231810000
|
10,48 € | 1 | Add |
| 11 |
SPRING, FRONT FORK
39P231410000
|
101,18 € | 1 | Add |
| 12 |
SPACER
5VY231180000
|
55,74 € | 1 | Add |
| 13 |
NUT
3LC233570000
|
0,52 € | 5 | Add |
| 14 |
BOLT, CAP
39P231110000
|
274,64 € | 1 | Add |
| 15 |
O-RING
39P231470000
|
6,91 € | 1 | Add |
| 16 |
FRONT FORK ASSY (R.H)
39P231030100
|
767,36 € | 1 | Add |
| 17 |
TUBE, OUTER (RIGHT)
2D1231361000
|
313,48 € | 1 | Add |
| 18 |
WASHER
4V423146L000
|
6,86 € | 1 | Add |
| 19 |
OIL SEAL
4PU231450100
|
17,24 € | 1 | Add |
| 20 |
RING, SNAP
4V423153L000
|
4,17 € | 1 | Add |
| 21 |
SEAL, DUST
4PU231440000
|
24,15 € | 1 | Add |
| 22 |
INNER TUBE COMP.2
39P231200100
|
385,16 € | 1 | Add |
| 23 |
CYLINDER COMP., FRONT FORK
39P231701000
|
349,60 € | 1 | Add |
| 24 |
GASKET
50923158L000
|
2,25 € | 1 | Add |
| 25 |
BOLT, HEXAGON SOCKET HEAD
3D8231810000
|
10,48 € | 1 | Add |
| 26 |
SPRING, FRONT FORK
39P231410000
|
101,18 € | 1 | Add |
| 27 |
SPACER
5VY231180000
|
55,74 € | 1 | Add |
