Yamaha FZ- SERIES FZ8 2015

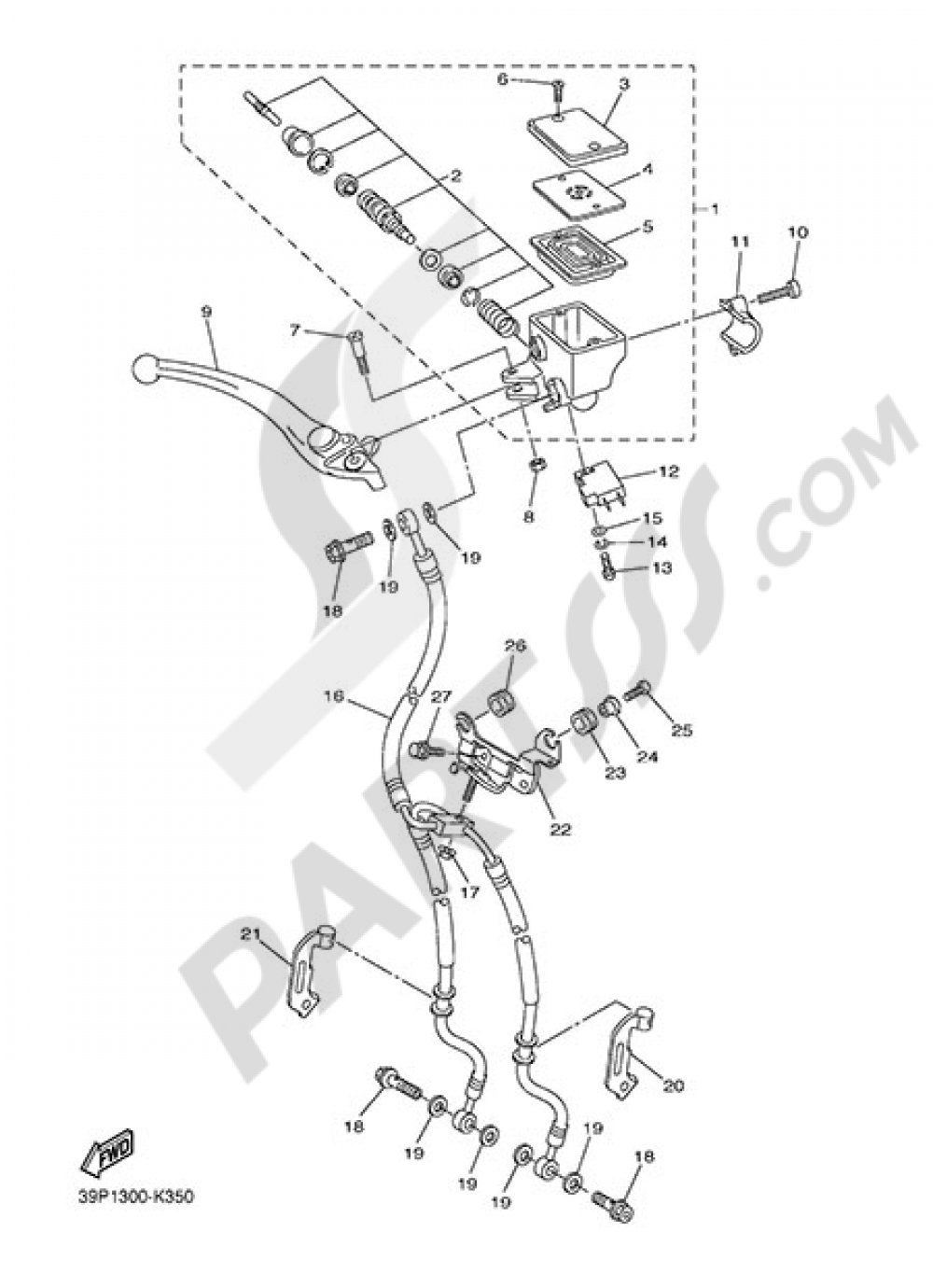

Add model to garageFRONT MASTER CYLYNDER Yamaha FZ8 2015
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
MASTER CYLINDER SUB ASSY
2D1W25870000
|
372,23 € | 1 | Add |
| 2 |
CYLINDER KIT, MASTER
2D1258070000
|
85,47 € | 1 | Add |
| 3 |
CAP, RESERVOIR
5VS258520000
|
41,60 € | 1 | Add |
| 4 |
BUSH,DIAPHRAGM
5VS258550000
|
19,99 € | 1 | Add |
| 5 |
GASKET, DIAPHRAGM
20S258540000
|
27,09 € | 1 | Add |
| 6 |
SCREW
5VS2589H0000
|
0,78 € | 1 | Add |
| 7 |
BOLT, LEVER
5VS2589F0000
|
8,63 € | 1 | Add |
| 8 |
NUT, U
956170610000
|
4,57 € | 1 | Add |
| 9 |
LEVER 2
5VS839220000
|
55,44 € | 1 | Add |
| 10 |
BOLT
5VS263320000
|
1,55 € | 1 | Add |
| 11 |
BRACKET, MASTER CYLINDER
5VS258670000
|
28,21 € | 1 | Add |
| 12 |
FRONT STOP SWITCH ASSY
4HM839800000
|
47,28 € | 1 | Add |
| 13 |
SCREW, PAN HEAD
985170401200
|
0,62 € | 1 | Add |
| 14 |
YBS67-4 WASHER, SPRING
929900410000
|
0,62 € | 5 | Add |
| 15 |
WASHER, PLAIN (646)
929900460000
|
0,52 € | 1 | Add |
| 16 |
HOSE, BRAKE 1
39P258720000
|
193,87 € | 1 | Add |
| 17 |
NUT, FLANGE(7NB)
957800650000
|
1,77 € | 1 | Add |
| 18 |
BOLT, UNION
904011002000
|
4,23 € | 1 | Add |
| 19 |
GASKET
904301000500
|
3,96 € | 1 | Add |
| 20 |
HOLDER, BRAKE HOSE 1
2D1258750000
|
12,88 € | 1 | Add |
| 21 |
HOLDER, BRAKE HOSE 2
2D1258760000
|
12,57 € | 1 | Add |
| 22 |
STAY, HEADLIGHT 1
39P841180000
|
94,64 € | 1 | Add |
| 23 |
GROMMET
904801400400
|
5,25 € | 1 | Add |
| 24 |
COLLAR
903870628900
|
2,01 € | 1 | Add |
| 25 |
SCREW(4DN)
901490630200
|
5,97 € | 1 | Add |
| 26 |
GROMMET
904801300500
|
1,60 € | 1 | Add |
| 27 |
BOLT, FLANGE
958170601400
|
0,93 € | 1 | Add |
