Yamaha FZ- SERIES FZS 600 Fazer 2003

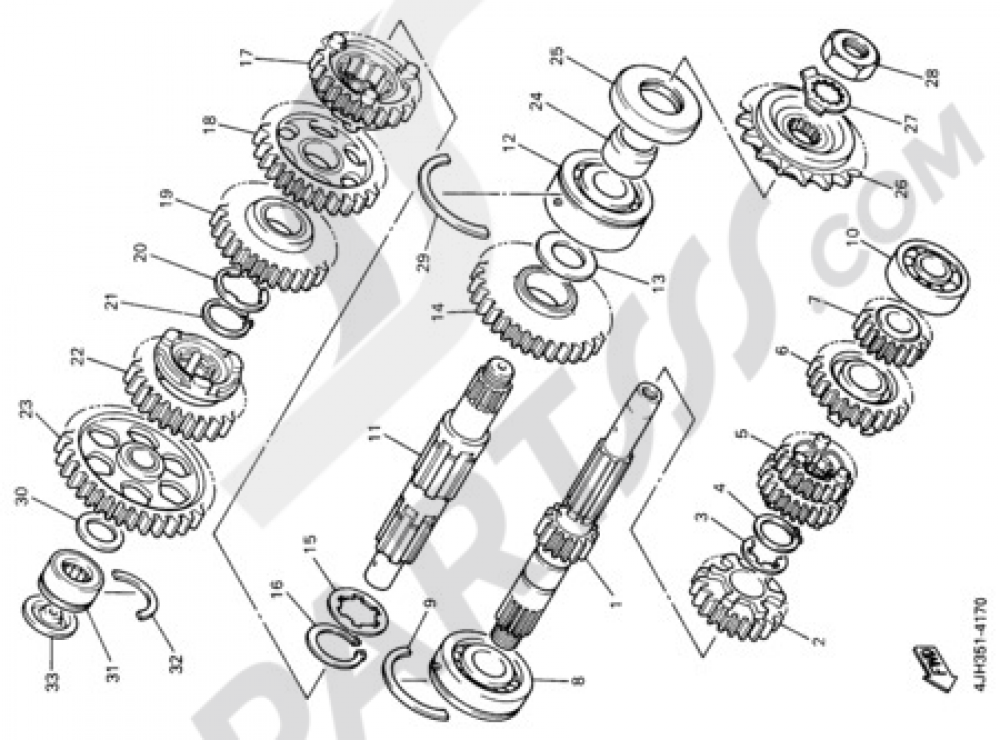

Add model to garageTRANSMISSION Yamaha FZS 600 Fazer 2003
Pos. | Ref./Description | Price | Qty. | |
---|---|---|---|---|
1 |
AXLE, MAIN (13T)
4JH174110000
|
257,50 € | 1 | Add |
2 |
GEAR, 5TH PINION
4TV171510000
|
Obsolete | 1 | Not available |
3 |
WASHER (3J3)
902092219100
|
3,38 € | 1 | Add |
4 |
CIRCLIP (4L0)
934402508400
|
4,16 € | 1 | Add |
5 |
GEAR, 3RD PINION (22T)
4JH171310000
|
183,38 € | 1 | Add |
6 |
GEAR, 6TH PINION
4TV171610000
|
138,55 € | 1 | Add |
7 |
GEAR, 2ND PINION
4TV171210000
|
138,55 € | 1 | Add |
8 |
BEARING(1WG)
933063720800
|
59,40 € | 1 | Add |
9 |
CIRCLIP(1WG)
934405415200
|
7,59 € | 1 | Add |
10 |
BEARING(3LD)
933062046400
|
33,76 € | 1 | Add |
11 |
AXLE, DRIVE
4TV174210000
|
Obsolete | 1 | Not available |
12 |
BEARING(89A)
933052050900
|
172,17 € | 1 | Add |
13 |
SHIM 1
4TV174170000
|
Obsolete | 1 | Not available |
14 |
GEAR, 2ND WHEEL (37T)
4JH172210000
|
133,55 € | 1 | Add |
15 |
WASHER(4JH)
902092733600
|
7,52 € | 1 | Add |
16 |
CIRCLIP (3J3)
934403007700
|
3,43 € | 1 | Add |
17 |
GEAR, 6TH WHEEL
4TV172610000
|
176,51 € | 1 | Add |
18 |
GEAR, 3RD WHEEL (34T)
4JH172310000
|
138,55 € | 1 | Add |
19 |
GEAR, 4TH WHEEL (28T)
4JH172410000
|
138,55 € | 1 | Add |
20 |
WASHER (3J3)
902092219100
|
3,38 € | 1 | Add |
21 |
CIRCLIP (4L0)
934402508400
|
4,16 € | 1 | Add |
22 |
GEAR, 5TH WHEEL
4TV172510000
|
183,38 € | 1 | Add |
23 |
GEAR, 1ST WHEEL (37T)
4JH172110000
|
138,55 € | 1 | Add |
24 |
COLLAR(4JH)
903872504A00
|
69,56 € | 1 | Add |
25 |
OIL SEAL (1KT)
931023536800
|
12,32 € | 1 | Add |
26 |
SPROCKET, DRIVE
4TV174600000
|
57,35 € | 1 | Add |
27 |
WASHER, LOCK(3LD)
902152129000
|
8,84 € | 1 | Add |
