Yamaha MAXI SCOOTERS T-Max 530 SP 2015

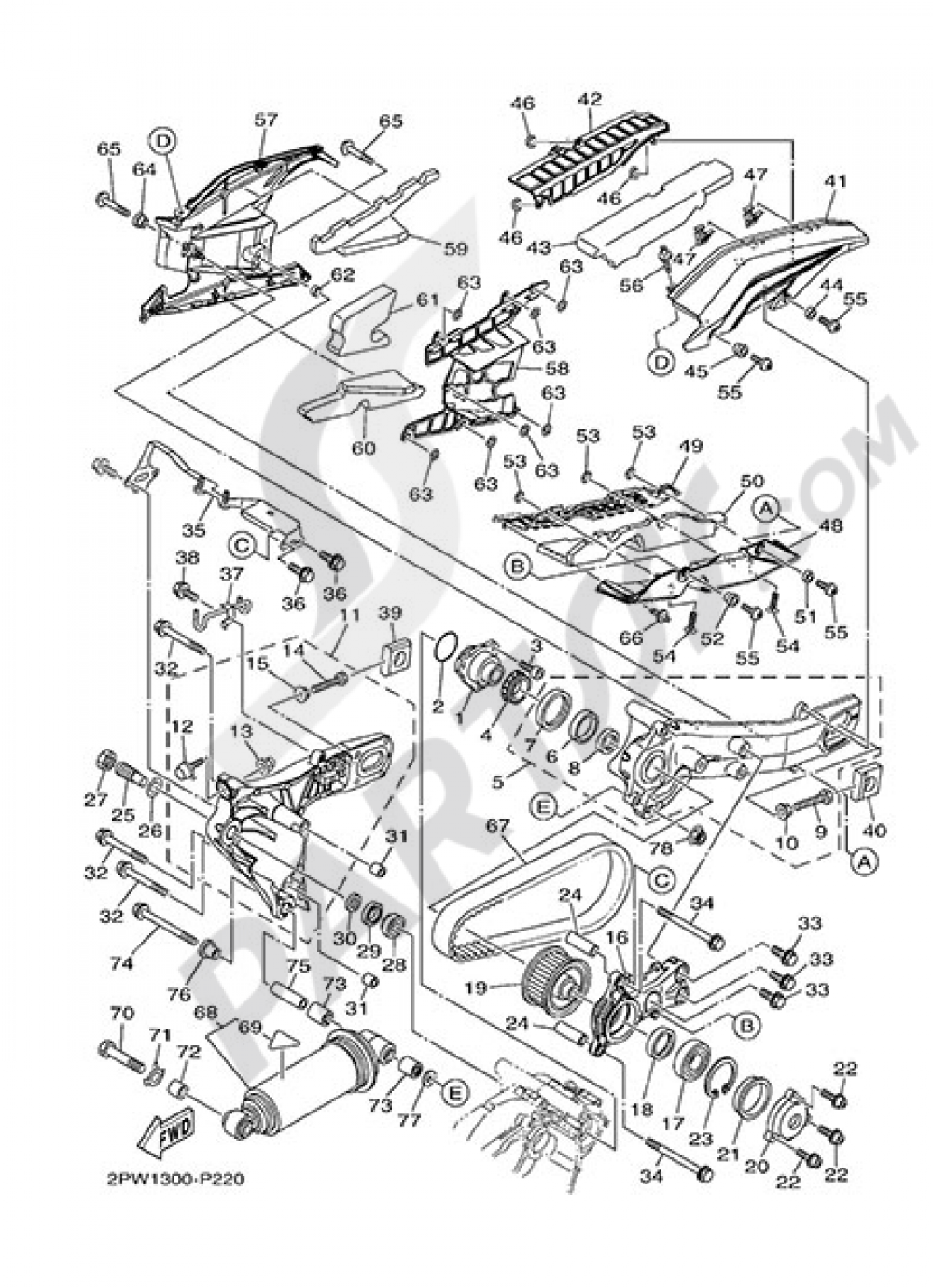

Add model to garageREAR ARM & SUSPENSION Yamaha T-Max 530 SP 2015
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 28 |
BRG,CYL-CAL ROLLER 74G KY
933320001000
|
48,37 € | 1 | Add |
| 29 |
OIL SEAL (25X40X5-101)
931022501700
|
6,89 € | 1 | Add |
| 30 |
COLLAR
903871701100
|
6,65 € | 1 | Add |
| 31 |
PIN, DOWEL
995301401600
|
4,51 € | 1 | Add |
| 32 |
BOLT, FLANGE(4MY)
958171010000
|
4,62 € | 1 | Add |
| 33 |
BOLT, FLANGE(3GD)
958171002500
|
2,35 € | 1 | Add |
| 34 |
BOLT,FLANGE
958171009000
|
3,43 € | 1 | Add |
| 35 |
STAY, PLATE
59C216820000
|
42,58 € | 1 | Add |
| 36 |
BOLT, FLANGE
958170601200
|
0,22 € | 1 | Add |
| 37 |
HOLDER, BRAKE HOSE
59C2587A0000
|
25,33 € | 1 | Add |
| 38 |
BOLT, FLANGE
958170601200
|
0,22 € | 1 | Add |
| 39 |
PULLER, CHAIN 1
5VY253880000
|
59,64 € | 1 | Add |
| 40 |
PULLER, CHAIN 2
5VY253890100
|
32,91 € | 1 | Add |
| 41 |
CASE, CHAIN
59C223110000
|
45,70 € | 1 | Add |
| 42 |
STAY, CHAIH CASE 1
59C221310000
|
14,13 € | 1 | Add |
| 43 |
DAMPER
59C2174X0000
|
63,80 € | 1 | Add |
| 44 |
COLLAR
903870610600
|
1,42 € | 1 | Add |
| 45 |
COLLAR
903870613000
|
6,52 € | 1 | Add |
| 46 |
NUT, SPRING (6E5)
9018305M0200
|
0,62 € | 5 | Add |
| 47 |
CLIP
90468040A000
|
0,86 € | 1 | Add |
| 48 |
CASE, CHAIN 2
59C223120000
|
19,57 € | 1 | Add |
| 49 |
STAY 2
59C221320000
|
12,76 € | 1 | Add |
| 50 |
DAMPER
59C2174Y0000
|
69,24 € | 1 | Add |
| 51 |
COLLAR
903870610600
|
1,42 € | 1 | Add |
| 52 |
COLLAR
903870613000
|
6,52 € | 1 | Add |
| 53 |
NUT, SPRING (6E5)
9018305M0200
|
0,62 € | 5 | Add |
| 54 |
RIVET
902690300100
|
1,55 € | 1 | Add |
