Yamaha MAXI SCOOTERS T-Max 530 2015

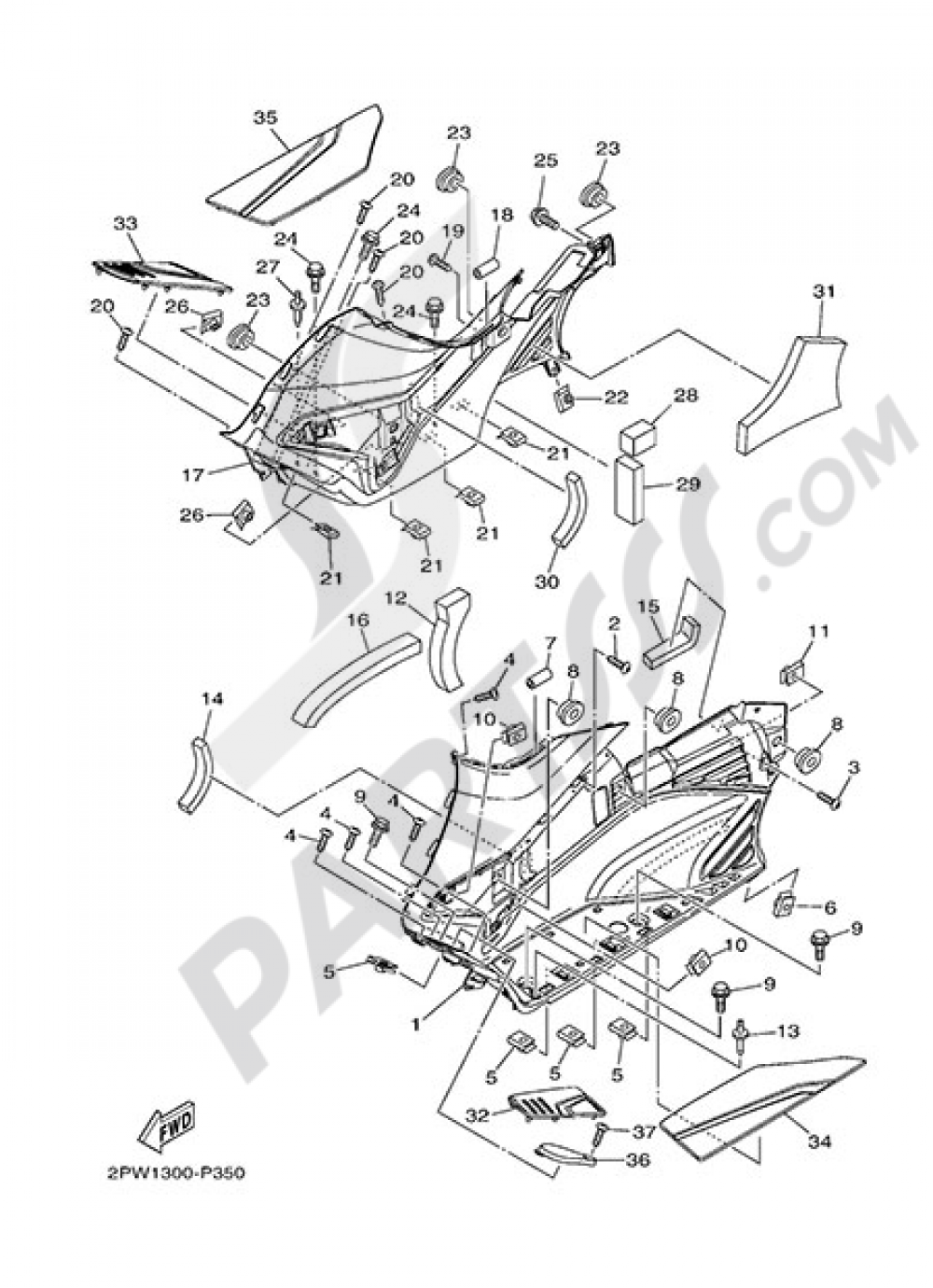

Add model to garageSTAND & FOOTREST 2 Yamaha T-Max 530 2015
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
TABLERO DE APOYAPIE
59C274810100
|
211,70 € | 1 | Add |
| 2 |
SCREW, TAPPING(4TV)
901670507700
|
0,60 € | 5 | Add |
| 3 |
SCREW, TAPPING(4TV)
901670507700
|
0,60 € | 5 | Add |
| 4 |
SCREW, TAPPING(4TV)
901670507700
|
0,60 € | 5 | Add |
| 5 |
NUT, SPRING(1YT)
901830504200
|
0,60 € | 5 | Add |
| 6 |
NUT, SPRING
90183050A600
|
2,27 € | 1 | Add |
| 7 |
ESPACIADOR
2PW283290000
|
0,90 € | 1 | Add |
| 8 |
GROMMET(4BH)
904800155900
|
1,55 € | 1 | Add |
| 9 |
BOLT, WITH WASHER
901190620900
|
1,28 € | 1 | Add |
| 10 |
NUT, SPRING
90183060A600
|
3,49 € | 1 | Add |
| 11 |
NUT, SPRING(1YT)
901830504200
|
0,60 € | 5 | Add |
| 12 |
DAMPER, LOCATING 2
59C217790000
|
6,68 € | 1 | Add |
| 13 |
RIVET
902690700100
|
1,50 € | 1 | Add |
| 14 |
DAMPER 1
4B5282170000
|
3,70 € | 1 | Add |
| 15 |
DAMPER 4
59C282470000
|
2,59 € | 1 | Add |
| 16 |
DAMPER, PLATE
905202500100
|
5,07 € | 1 | Add |
| 17 |
TAPA LATERAL T MAX
59C274880100
|
211,70 € | 1 | Add |
| 18 |
ESPACIADOR
2PW283290000
|
0,90 € | 1 | Add |
| 19 |
SCREW, TAPPING(4TV)
901670507700
|
0,60 € | 5 | Add |
| 20 |
SCREW, TAPPING(4TV)
901670507700
|
0,60 € | 5 | Add |
| 21 |
NUT, SPRING(1YT)
901830504200
|
0,60 € | 5 | Add |
| 22 |
NUT, SPRING
90183050A600
|
2,27 € | 1 | Add |
| 23 |
GROMMET(4BH)
904800155900
|
1,55 € | 1 | Add |
| 24 |
BOLT, WITH WASHER
901190620900
|
1,28 € | 1 | Add |
| 25 |
BOLT, WITH WASHER
901190620900
|
1,28 € | 1 | Add |
| 26 |
NUT, SPRING
90183060A600
|
3,49 € | 1 | Add |
| 27 |
RIVET
902690700100
|
1,50 € | 1 | Add |
