Yamaha MAXI SCOOTERS T-Max 2009

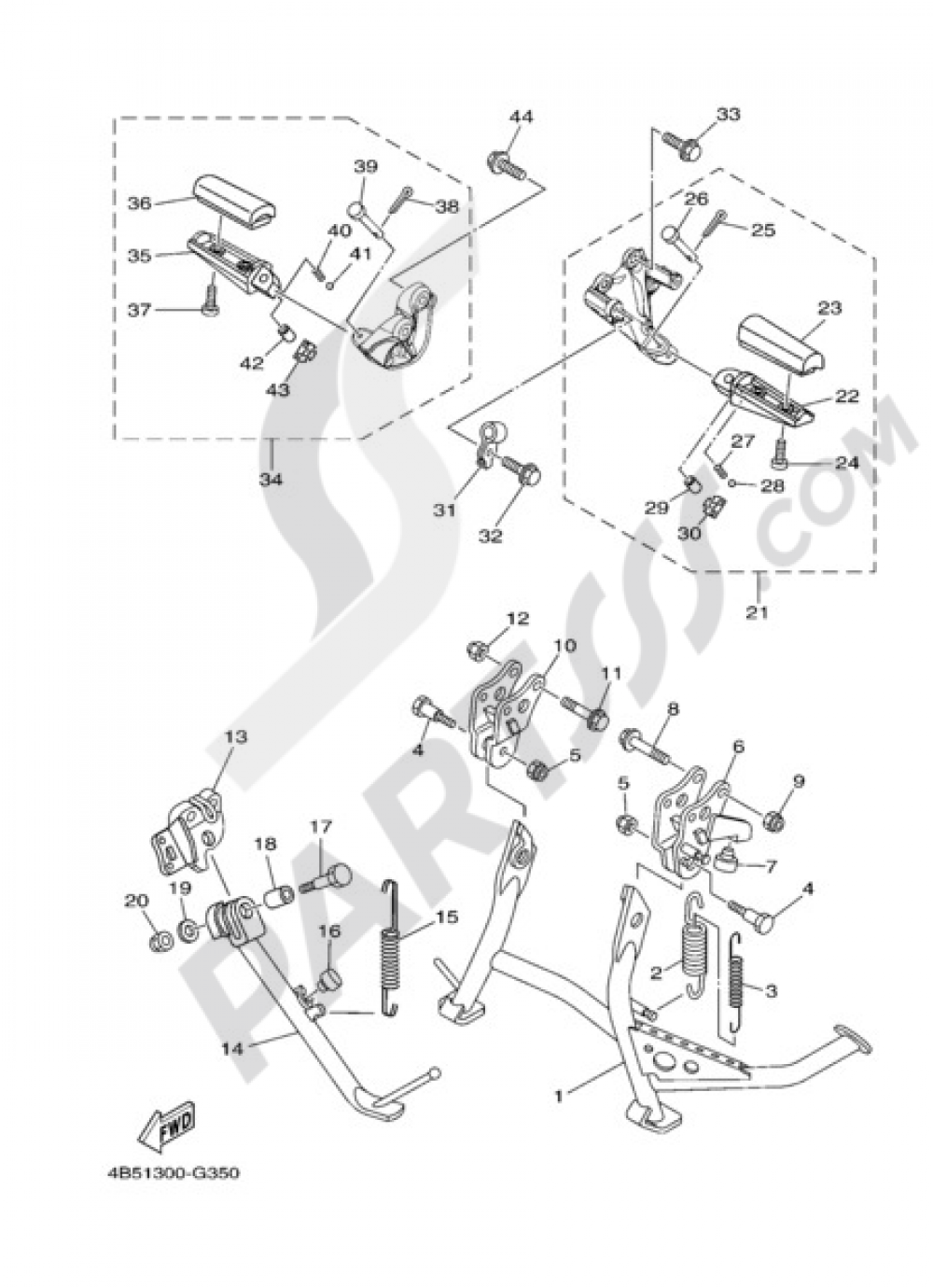

Add model to garageSTAND & FOOTREST Yamaha T-Max 2009
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
STAND, MAIN
4B5271110000
|
404,29 € | 1 | Add |
| 2 |
SPRING, TENSION
905064050800
|
40,91 € | 1 | Add |
| 3 |
SPRING, TENSION
905062350900
|
11,22 € | 1 | Add |
| 4 |
BOLT
901091002900
|
11,28 € | 1 | Add |
| 5 |
NUT, SELFLOCKING (533 FRAME)
901851006000
|
5,25 € | 1 | Add |
| 6 |
BRACKET, MAIN STAND
4B5271510000
|
96,18 € | 1 | Add |
| 7 |
STOPPER, MAIN STAND
116271140000
|
5,65 € | 1 | Add |
| 8 |
BOLT, FLANGE
901051028300
|
4,36 € | 1 | Add |
| 9 |
NUT, SELFLOCKING (533 FRAME)
901851006000
|
5,25 € | 1 | Add |
| 10 |
BRACKET, MAIN STAND 2
4B5271520000
|
66,45 € | 1 | Add |
| 11 |
BOLT, FLANGE
901051028300
|
4,36 € | 1 | Add |
| 12 |
NUT, SELFLOCKING (533 FRAME)
901851006000
|
5,25 € | 1 | Add |
| 13 |
BRACKET, SIDE STAND
4B5273210000
|
97,99 € | 1 | Add |
| 14 |
STAND, SIDE
4B5273111000
|
101,92 € | 1 | Add |
| 15 |
SPRING, TENSION
905062002700
|
19,68 € | 1 | Add |
| 16 |
STOPPER, MAIN STAND
116271140000
|
5,65 € | 1 | Add |
| 17 |
BOLT
901011002500
|
8,05 € | 1 | Add |
| 18 |
COLLAR
903871001800
|
7,85 € | 1 | Add |
| 19 |
958-69527-00 WASHER, PLAIN
929901020000
|
1,55 € | 1 | Add |
| 20 |
NUT, U
956171010000
|
4,92 € | 1 | Add |
| 21 |
REAR FOOTREST ASSY 1
4B5274300000
|
176,75 € | 1 | Add |
| 22 |
FOOTREST, REAR 1
4DN274310100
|
39,50 € | 1 | Add |
| 23 |
COVER, FOOTREST
4BP274130000
|
28,75 € | 1 | Add |
| 24 |
SCREW, PAN HEAD(3YL)
985800501400
|
1,77 € | 5 | Add |
| 25 |
PIN, COTTER (648)
914902001500
|
2,22 € | 1 | Add |
| 26 |
PIN, CLEVIS
917020603800
|
1,60 € | 1 | Add |
| 27 |
SPRING, COMPRESSION
905011500100
|
2,01 € | 1 | Add |
