Yamaha MAXI SCOOTERS X-City 250 2009

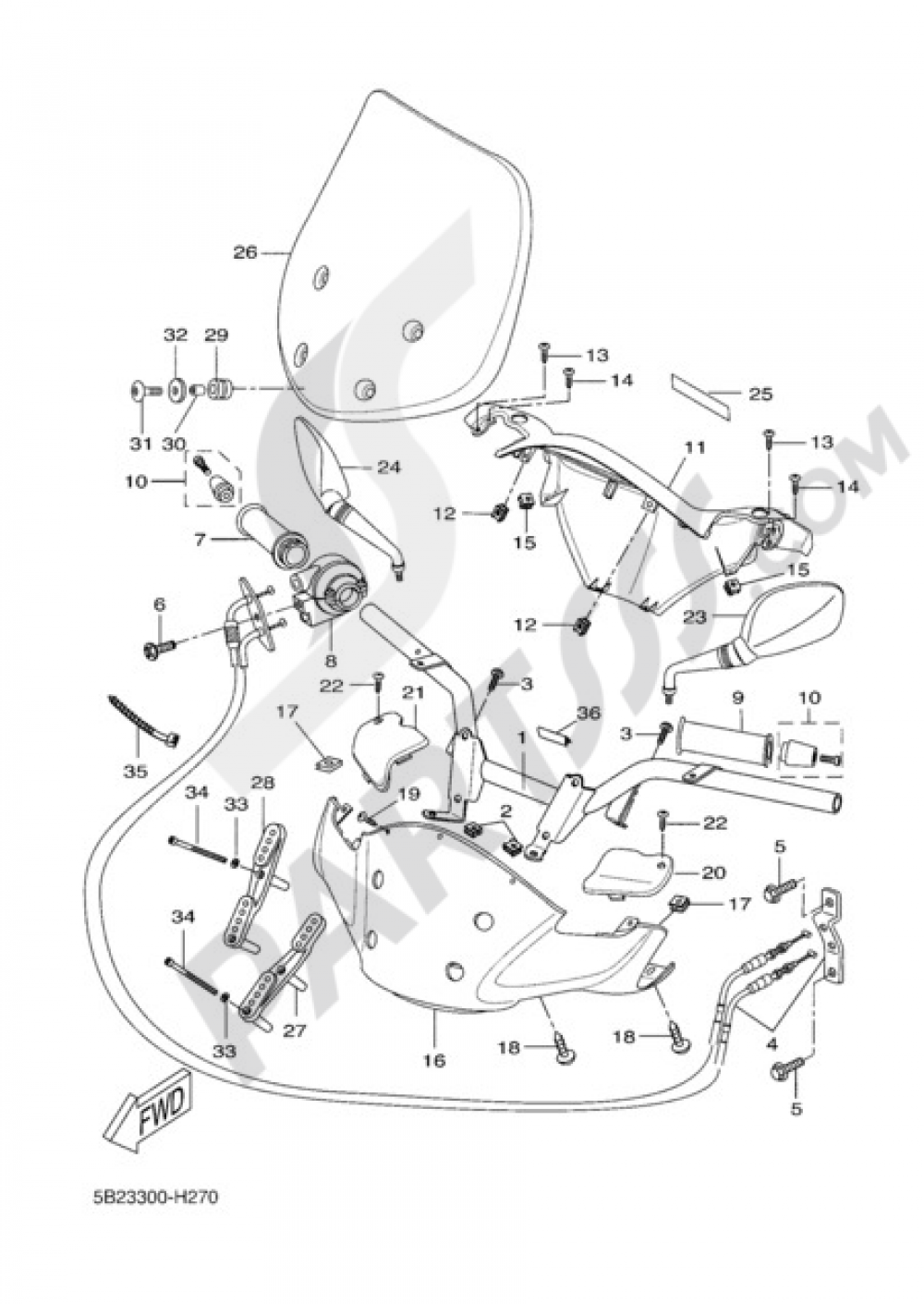

Add model to garageHANDELBAR AND CABLES Yamaha X-City 250 2009
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
HANDLE COMP
5B2F61100000
|
94,41 € | 1 | Add |
| 2 |
NUT SPRING
9018305X0300
|
0,93 € | 10 | Add |
| 3 |
SCREW, TAPPING
9016705X0200
|
1,94 € | 10 | Add |
| 4 |
CABLE THROTTLE ASSY
5B2F63010000
|
123,58 € | 1 | Add |
| 5 |
BOLT, HEXAGON
9010105X0100
|
Obsolete | 1 | Not available |
| 6 |
SCREW
9015705X0000
|
4,29 € | 1 | Add |
| 7 |
EMPUNADURA COMPLETA
4YR262400300
|
36,26 € | 1 | Add |
| 8 |
CABLE CONNECTOR CA
1B9F62700000
|
Obsolete | 1 | Not available |
| 9 |
EMPUNADURA (MI)
4YR262410300
|
24,28 € | 1 | Add |
| 10 |
END GRIP
5SEF62460000
|
48,98 € | 1 | Add |
| 11 |
COVER HANDLE UPPER
5B2F62130000
|
96,70 € | 1 | Add |
| 12 |
NUT SPRING
9018305X0300
|
0,93 € | 10 | Add |
| 13 |
SCREW, TAPPING
9016705X0100
|
1,94 € | 10 | Add |
| 14 |
SCREW, TAPPING
9016705X0200
|
1,94 € | 10 | Add |
| 15 |
NUT,SRING
9018303X0000
|
4,57 € | 1 | Add |
| 16 |
COVER HANDLE 2
5B2F61450000
|
68,38 € | 1 | Add |
| 17 |
NUT SPRING
9018305X0300
|
0,93 € | 10 | Add |
| 18 |
SCREW, TAPPING
9016705X0200
|
1,94 € | 10 | Add |
| 19 |
SCREW, TAPPING
9016705X0100
|
1,94 € | 10 | Add |
| 20 |
CAP,CYL. 1
5B2F62620000
|
11,42 € | 1 | Add |
| 21 |
CAP,CYL. 2
5B2F62720000
|
9,59 € | 1 | Add |
| 22 |
SCREW,PAN TAPPING
9016703X0700
|
3,82 € | 1 | Add |
| 23 |
REAR VIEW MIRROR ASS LEFT
5B2F62800100
|
32,02 € | 1 | Add |
| 24 |
REAR VIEW MIRROR ASS RIGH
5B2F62900100
|
32,02 € | 1 | Add |
| 25 |
LABEL WARNING
5WWF15680100
|
12,88 € | 1 | Add |
| 26 |
WIND SCREEN
5B2F83801000
|
153,83 € | 1 | Add |
| 27 |
BRACKET 4
5B2F612M0000
|
54,07 € | 1 | Add |
