Yamaha MAXI SCOOTERS X-Max 250 ABS 2016

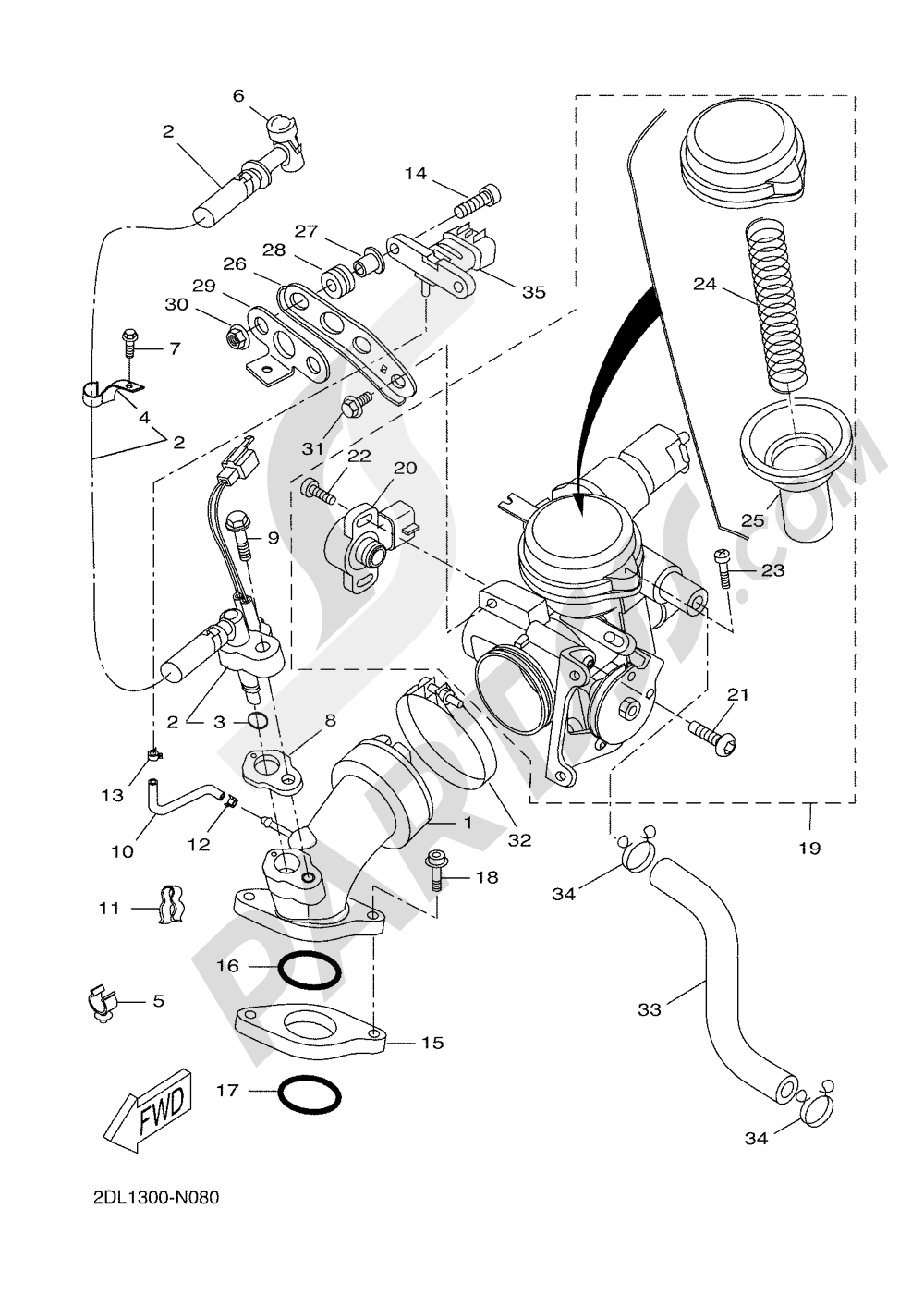

Add model to garageINTAKE Yamaha X-Max 250 ABS 2016
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
MANIFOLD
1C0E35850000
|
101,77 € | 1 | Add |
| 2 |
PIPE INLET ASSEMBLY
2DL139300000
|
647,69 € | 1 | Add |
| 3 |
O-RING
5CA141470000
|
12,31 € | 1 | Add |
| 4 |
STAY
2DL144130000
|
11,68 € | 1 | Add |
| 5 |
CLIP 1
5MFE24860000
|
7,11 € | 1 | Add |
| 6 |
CLAMP 1
5VU241350000
|
17,29 € | 1 | Add |
| 7 |
BOLT
9131M0601600
|
0,41 € | 5 | Add |
| 8 |
GASKET, MANIFOLD
15B135560000
|
31,84 € | 1 | Add |
| 9 |
BOLT, FLANGE
958170602500
|
0,52 € | 1 | Add |
| 10 |
HOSE, AIR
1C0E38950000
|
4,99 € | 1 | Add |
| 11 |
CLAMP(53Y)
904641506500
|
9,20 € | 1 | Add |
| 12 |
CLIP(4BH)
904670713800
|
1,46 € | 1 | Add |
| 13 |
CLIP (7R4)
904670705500
|
1,46 € | 1 | Add |
| 14 |
BOLT, HEXAGON SOCKET HEAD(1VJ)
901100613800
|
3,60 € | 1 | Add |
| 15 |
JOINT
1C0E35950000
|
18,46 € | 1 | Add |
| 16 |
O-RING
9321034X0100
|
1,46 € | 10 | Add |
| 17 |
O-RING
9321034X0100
|
1,46 € | 10 | Add |
| 18 |
BOLT, HEXAGON SOCK
9011006X2800
|
5,07 € | 10 | Add |
| 19 |
THROTTLE BODY ASSY
1C0137500000
|
1.082,07 € | 1 | Add |
| 20 |
THROTTLE SENSOR ASSY
5RU858850000
|
129,24 € | 1 | Add |
| 21 |
SCREW, PAN HEAD(3LA)
985170501000
|
0,62 € | 1 | Add |
| 22 |
SCREW
5CA142160000
|
0,62 € | 1 | Add |
| 23 |
SCREW
5LB142160000
|
1,82 € | 1 | Add |
| 24 |
SPRING
1C0142860000
|
22,06 € | 1 | Add |
| 25 |
VALVE ASSY
1C0143400000
|
165,67 € | 1 | Add |
| 26 |
BRACKET 1
1C0E42910000
|
21,10 € | 1 | Add |
| 27 |
COLLAR
9038706X3300
|
4,16 € | 1 | Add |
| 28 |
GROMMET
1B9E44350000
|
4,55 € | 1 | Add |
| 29 |
BRACKET 2
2DLE42920000
|
8,44 € | 1 | Add |
| 30 |
NUT, FLANGE(4MV)
957070650000
|
5,60 € | 1 | Add |
| 31 |
BOLT, FLANGE
958170601000
|
0,28 € | 1 | Add |
| 32 |
HOSE CLAMP ASSY
904505200700
|
9,83 € | 1 | Add |
| 33 |
HOSE
1C0E38920100
|
22,76 € | 1 | Add |
| 34 |
CLIP
9046718X0000
|
3,60 € | 5 | Add |
| 35 |
SENSOR, PRESSURE
1C7823800000
|
279,56 € | 1 | Add |
