Yamaha MAXI SCOOTERS X-Max 250 2006

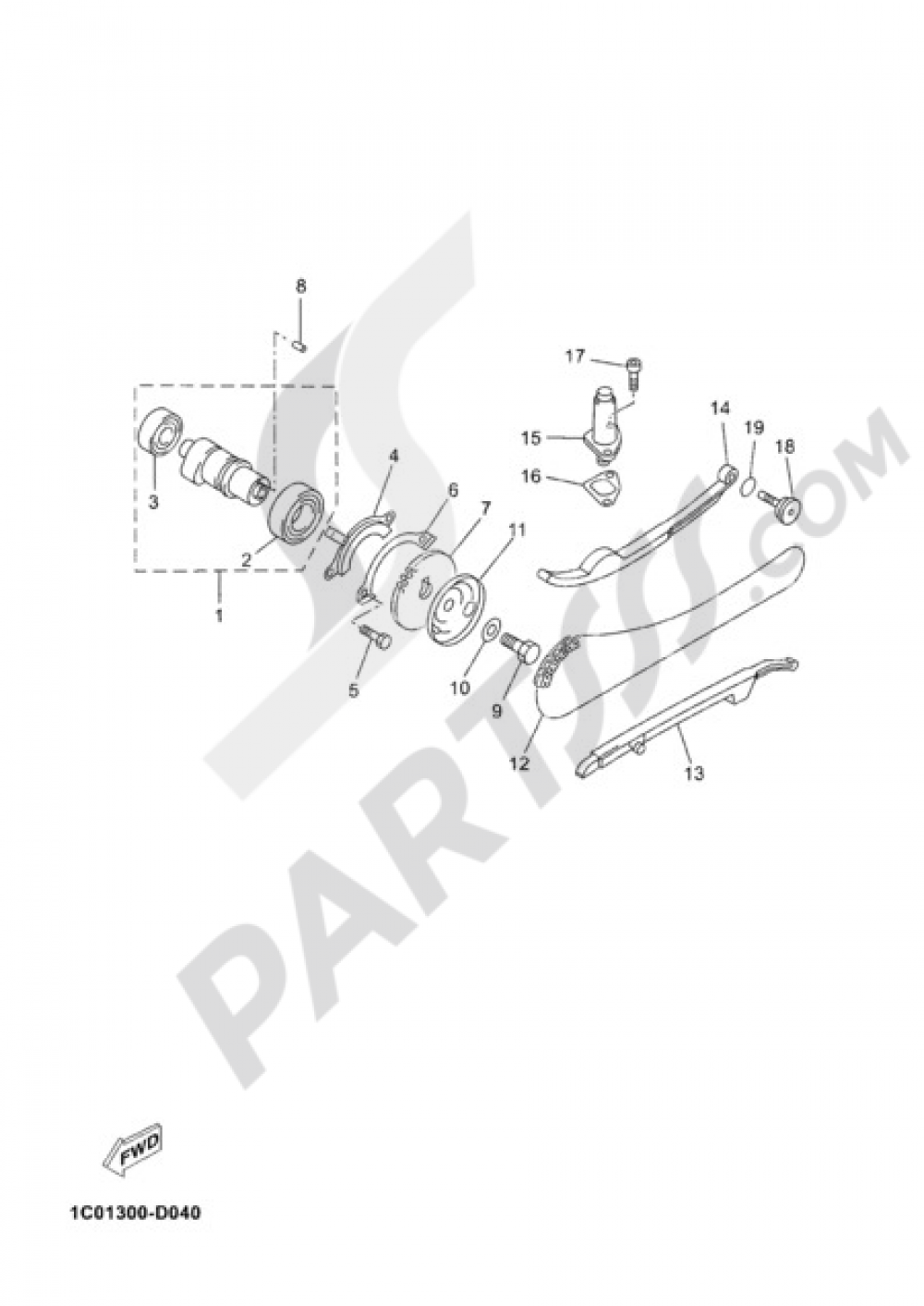

Add model to garageCAMSHAFT & CHAIN Yamaha X-Max 250 2006
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
CAMSHAFT ASSY 1
5SEE21700000
|
250,21 € | 1 | Add |
| 2 |
BEARING
93306005Y600
|
25,84 € | 1 | Add |
| 3 |
BEARING
93306202YT00
|
17,96 € | 1 | Add |
| 4 |
PLATE
4GA1111F0000
|
Obsolete | 1 | Not available |
| 5 |
BOLT, FLANGE
950220601200
|
0,46 € | 1 | Add |
| 6 |
WASHER, LOCK (5H0)
902150618400
|
3,85 € | 1 | Add |
| 7 |
SPROCKET, CAM CHAIN
4HC121760000
|
101,08 € | 1 | Add |
| 8 |
PIN, DOWEL
9360410X0000
|
0,69 € | 10 | Add |
| 9 |
BOLT (583)
901011030300
|
3,35 € | 1 | Add |
| 10 |
WASHER, PLATE
9020110X0800
|
1,23 € | 10 | Add |
| 11 |
PLATE, BREATHER 2
4KB111450000
|
8,81 € | 1 | Add |
| 12 |
CHAIN
945821710400
|
45,80 € | 1 | Add |
| 13 |
GUIDE, STOPPER 1
1C0E22310000
|
82,18 € | 1 | Add |
| 14 |
GUIDE, STOPPER 2
1C0E22410000
|
19,41 € | 1 | Add |
| 15 |
TENSIONER ASSY, CA
1C0E22100000
|
150,15 € | 1 | Add |
| 16 |
GASKET, TENSIONER CASE
4RF122130000
|
2,49 € | 1 | Add |
| 17 |
BOLT, HEXAGON SOCKET HEAD(M01)
9011006X2600
|
0,83 € | 10 | Add |
| 18 |
NUT, LOCK
37PE21570000
|
12,74 € | 1 | Add |
| 19 |
O-RING
9321015X0000
|
3,56 € | 1 | Add |
