Yamaha MAXI SCOOTERS X-Max 250 2012

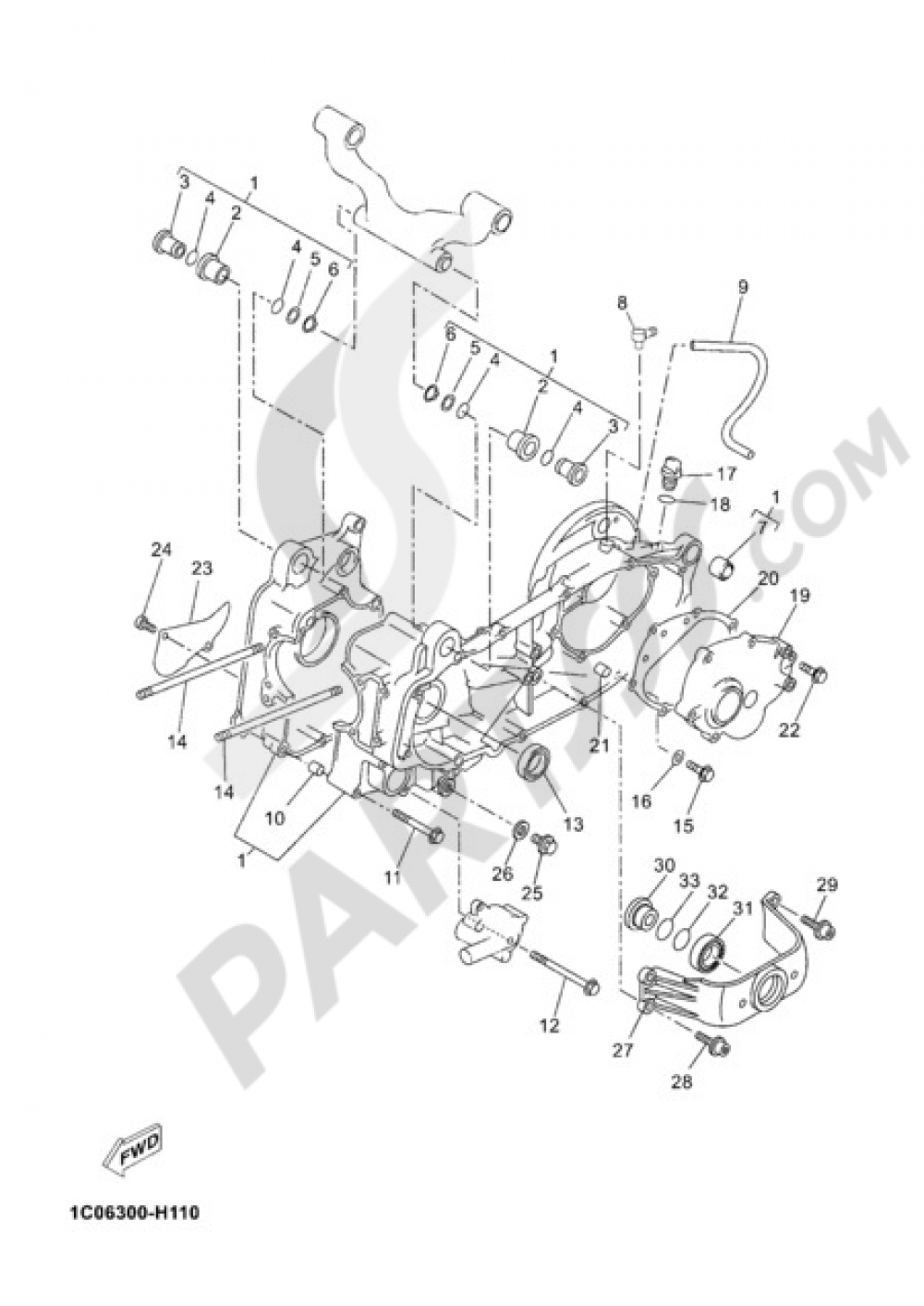

Add model to garageCARTER Yamaha X-Max 250 2012
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
CRANKCASE ASSY
5SEE51000100
|
2.074,49 € | 1 | Add |
| 2 |
HOLDER
4HC153780100
|
33,49 € | 1 | Add |
| 3 |
COLLAR(4HC)
903871006J00
|
40,01 € | 1 | Add |
| 4 |
O-RING
932101627500
|
3,60 € | 5 | Add |
| 5 |
WASHER, PLATE (25H)
90201162H400
|
4,36 € | 1 | Add |
| 6 |
CIRCLIP
9341016X0000
|
0,11 € | 10 | Add |
| 7 |
BUSHING, REAR CUSHION
164222160000
|
8,65 € | 1 | Add |
| 8 |
BREATHER
37PE53710000
|
Obsolete | 1 | Not available |
| 9 |
HOSE
9044513X0100
|
4,49 € | 1 | Add |
| 10 |
P1N, DOWEL
995301011400
|
1,65 € | 5 | Add |
| 11 |
BOLT, FLANGE
9010506X2800
|
Obsolete | 5 | Not available |
| 12 |
BLT,HEX,1/4-20X5/8
9010506X3800
|
4,16 € | 10 | Add |
| 13 |
OIL SEAL (25G)
931023028400
|
17,30 € | 1 | Add |
| 14 |
BOLT, STUD(4HC)
901160859100
|
9,43 € | 1 | Add |
| 15 |
BLT,HEX,1/4-20X5/8
9010508X1800
|
Obsolete | 1 | Not available |
| 16 |
WASHER, PLATE 3411117500
902010808700
|
3,18 € | 1 | Add |
| 17 |
PLUG, OIL
3VLE53630000
|
10,02 € | 5 | Add |
| 18 |
O-RING
9321014X0100
|
0,20 € | 1 | Add |
| 19 |
COVER, CRANKCASE 2
1C0E54210000
|
123,20 € | 1 | Add |
| 20 |
GASKET, CRANKCASE
5SEE54610000
|
21,78 € | 1 | Add |
| 21 |
P1N, DOWEL
995301011400
|
1,65 € | 5 | Add |
| 22 |
BLT,HEX,1/4-20X5/8
9010508X2500
|
3,14 € | 10 | Add |
| 23 |
COVER
4HC154920000
|
10,38 € | 1 | Add |
| 24 |
BOLT, HEXAGON SOCKET HEAD(M01)
913120601400
|
0,86 € | 10 | Add |
| 25 |
PLUG, STRAIGHT SCR
9034012X0000
|
3,74 € | 1 | Add |
| 26 |
OIL SEAL(1HV)
9043012X0100
|
2,77 € | 1 | Add |
| 27 |
BRACKET
1C0E51991000
|
104,13 € | 1 | Add |
